    Learn more by watching our CLIPSAL MCB4-110 | 10amp Single Pole 4.5kA Circuit Breaker video.

    Description

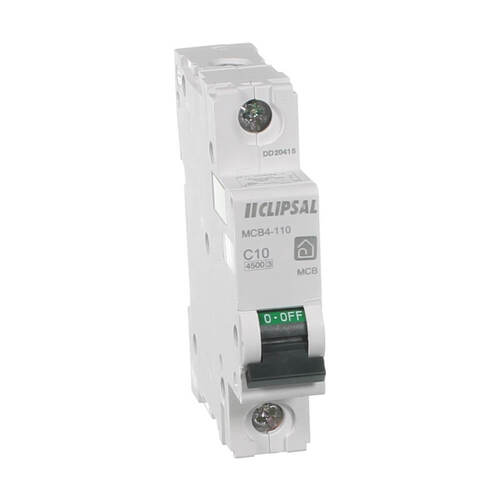

    CLIPSAL MCB4-110 | 10amp Single Pole 4.5kA Circuit Breaker

    Clearance - NO RETURNS

    The Clipsal MCB4-110 10 amp circuit breaker is part of the Resi Max range - The housing is made from sturdy, self extinguishing material. The device has lift-up terminals with combination head screws. Additional safety is provided with 'ON' and 'OFF' marking in contrasting colours on the toggle mechanisms.

    Key Features

    • 10Amp
    • Single Pole
    • 4.5KA
    • Circuit Breaker
    • Unique new white finish for a fresh modern look
    • Base module = 18 mm wide. Compact standardised and consistent module dimensions
    • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in
    • Cable automatically guided to the correct position: terminals with guard
    • Fast closure
    • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety
    • Same housing as AC type MCBs. Uniformity in space requirements and installation
    • Excellent breaking capability for its compact size

    (MCB4-110)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Clipsal in home warranty

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU MCB4-110
    Barcode # 9318795018317
    Package Weight 0.105kg
    Package Width 0.085m
    Package Height 0.017m
    Package Length 0.072m
    TYPE VALUE
    Type Circuit Protection
    Brand Clipsal by Schneider Electric
    Range Clipsal - Max 4
    Rated Current (A) 10
    Height (mm) 81
    Width (mm) 18
    Depth (mm) 78.5
    Standards AS/NZS 60898
    Mounting Din Rail
    Voltage (V) 240V
    Number of Poles 1
    IP Rating IP20 ( IP40 Enclosed )
    Breaking Capacity 4.5kA
    Curve C
