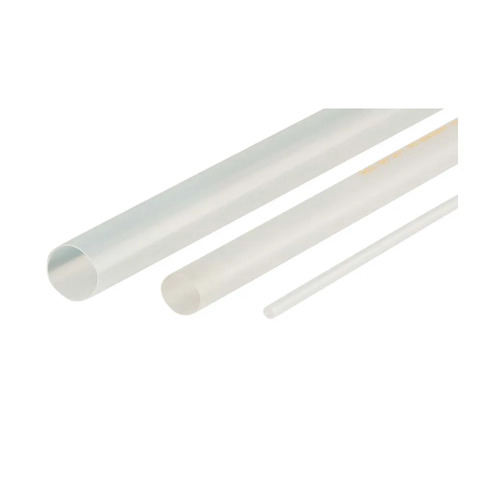

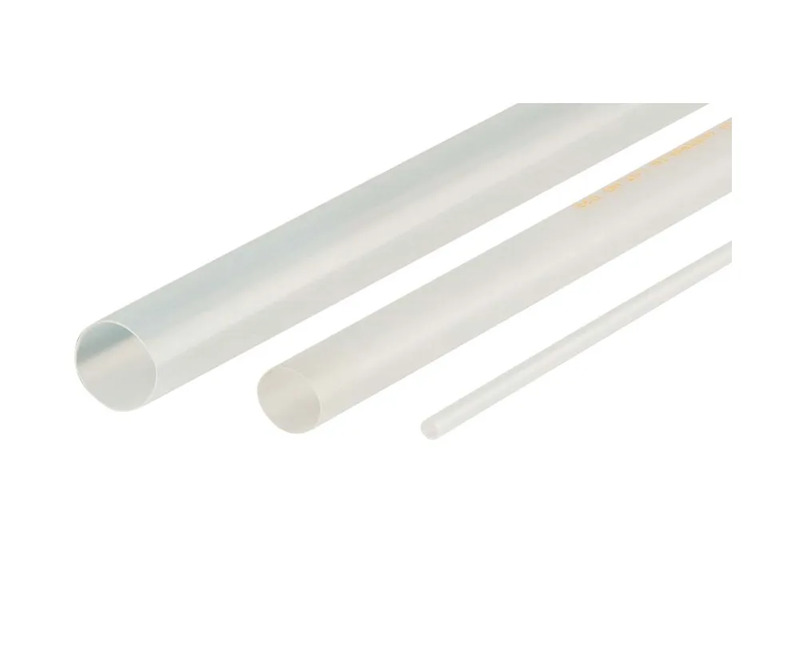

The Cabac XLP7-WH4FT is a thin wall heat shrink tube rated 600V, supplied as a single 1.2 metre length with a 2:1 shrink ratio. The XLP7-WH4FT starts at 6.4mm pre-shrink diameter and recovers to 3.2mm, finishing with a 0.56mm wall. The white polyolefin is chemically cross-linked, flame retardant and UV stabilised. It carries UL224 VW1 listing under file number E366157 and passes ASTM D2671 for flammability.
Unprotected terminations invite moisture, abrasion and accidental contact. The exposure sits wherever flexible cable enters a gland or a crimp barrel remains uncovered at a terminal. Insulation tape unwinds under elevated temperature and leaves adhesive residue on the conductor. This tubing recovers to half its supplied diameter, so a single size covers a range of conductors, bootlace ferrules and crimp barrels. The 600V rating and 0.56mm recovered wall give a close-fitting insulated cover that stays positioned once heat is applied.
Buying heat shrink in 1.2 metre lengths keeps the van stocked without committing to a 50 metre reel. Cut what the job requires and keep the remainder. Reserve the white for circuit identification or legend labelling at the board. The XLP7-WH4FT recovers under a standard heat gun within seconds, so a batch of terminations completes quickly on site. Flame retardant polyolefin and UV stabilisation mean the same stick performs inside an enclosure or in an exposed cabinet.
The XLP7-WH4FT is not adhesive lined, so it does not form a watertight seal at a joint and is not rated for direct burial or submersion. It will not recover onto anything larger than 6.4mm and will not close down tightly below 3.2mm. Cabac lists the material as flame retardant, not fire rated, so it is not a substitute for a fire barrier or a fire rated cable system.
(XLP7-WH4FT)
The XLP7-WH4FT carries UL224 VW1 listing under file number E366157 and passes ASTM D2671 for flammability. The tubing also conforms to MIL-I-23053/5 Class 3 and JIS. Voltage rating is 600V.
Slide the cut length over the conductor or crimp barrel before terminating, then apply heat with a heat gun or heat tunnel. Recovery begins above roughly 100 degrees Celsius. Work the heat evenly around the tube so it closes down without trapping air or scorching one side.
The tubing recovers from 6.4mm down to 3.2mm, so it fits anything between those two diameters once shrunk. Typical fits are small crimp lugs, bootlace ferrules, control wiring and light power conductors. Measure the largest point the tube must pass over before cutting.
Continuous operating range is minus 75 to plus 135 degrees Celsius. Cabac also rates the tubing to withstand 250 degrees Celsius for short intervals. That band covers switchboard interiors, machinery looms and vehicle applications.
The XLP range is unlined thin wall tubing with no internal adhesive, so it insulates and protects but does not seal against water. For a sealed joint, Cabac offers glued medium wall tubing such as the SMDW12-3TK, which lines the tube with adhesive that flows on heating.
All XLP colours except clear are UV stabilised, so the white grade tolerates sunlight exposure. It remains unsuitable for direct burial or submersion because there is no adhesive seal. Use it in exposed cabinets, under covers and in machinery rather than buried underground.
Cabac supplies assorted kits alongside single lengths. The XLPKIT holds 22 pieces spanning 1.5mm to 125mm diameter in mixed colours, and the HTK1 budget kit covers assorted colours and lengths. Single 1.2m sticks suit topping up one size that runs out first.
The Cabac XLP7-WH4FT is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | CABAC |
| SKU | XLP7-WH4FT |
| Barcode # | 9318674533825 |
| Package Weight | 0.012kg |
| TYPE | VALUE |
|---|---|
| Type | Heat Shrink |
| Brand | Cabac |
| Colour | White |
| Voltage (V) | 600 |
| Length (mtrs) | 1.2 |
| Pre-Shrink Diameter (mm) | 6.4 |
| After-Shrink Diameter (mm) | 3.2 |
| Recovered Wall Thickness (mm) | 0.56 |
