        Learn more by watching our Clipsal Iconic SD-3042VA-DIM-LIGHT-VW | 2 Gang Complete Dimmer Switch & Light Dolly video.

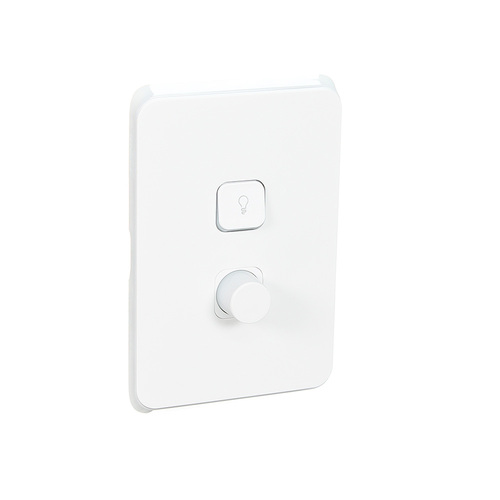

        Clipsal by Schneider Electric | Iconic 2 Gang Dimmer and Switch Plate 10A 350W | Vivid White Complete

        The Clipsal SD-3042VA-DIM-LIGHT-VW is a two-gang Iconic wall plate with a rotary dimmer and a 10 A switch fitted. Sparky Direct assembles the SD-3042VA-DIM-LIGHT-VW from a 3042C cover, a 3042G grid, a 40M mechanism, an SD Light Dolly and a 40ERDM-VW dimmer. The 40ERDM-VW dimmer handles dimmable LED loads to 350 W at 240 V. Its rated operational current is 1.5 A.

        A two-gang position that dims one circuit and switches another carries two different mechanisms in the one grid plate. The SD-3042VA-DIM-LIGHT-VW is supplied with both mechanisms already fitted to the 3042G grid plate. The rotary dimmer is a clip-in 40 Series mechanism measuring 22.8 mm square and 55.4 mm deep. The switched gang sits behind the SD Light Dolly.

        The SD-3042VA-DIM-LIGHT-VW arrives made up and ready to fit off by a licensed electrician. The complete assembly covers the cover plate, grid plate, switch mechanism, light dolly and rotary dimmer. The dimmer carries a 350 W rating on dimmable LED at 240 V. The dimmer knob and the cover plate are both finished in Vivid White.

        Features

        • 350 W dimmable LED — the 40ERDM-VW mechanism is rated for dimmable LED loads up to 350 W at 240 V AC.
        • Electronic transformer rated — the same mechanism carries electronic transformer loads up to 350 W.
        • Rotary brightness control — the dimmer sets lamp output by turning the knob rather than by a push button or slider.
        • 1.5 A rated current — the dimmer mechanism carries a rated operational current of 1.5 A.
        • 40M switch mechanism — the SD-3042VA-DIM-LIGHT-VW includes a 40M mechanism rated 10 amp for the second gang.
        • SD Light Dolly fitted — the switched gang is supplied with the SD Light Dolly already in place.
        • Clip-in fixing — the dimmer mechanism clips into the grid plate rather than fixing with screws.
        • Flying lead terminations — the dimmer connects through flying leads at the rear of the mechanism.
        • Complete assembly supplied — the SD-3042VA-DIM-LIGHT-VW ships built up, with the cover, grid, mechanisms and dolly together.
        • Compact mechanism body — the dimmer measures 22.8 mm high, 22.8 mm wide and 55.4 mm deep.
        • IP20 rating — the dimmer mechanism carries no protection rating against water, so it suits interior dry positions only.

        Where to use

        • Two-gang wall positions — the SD-3042VA-DIM-LIGHT-VW controls two separate lighting circuits from one plate.
        • LED downlight circuits — dimmable LED runs drawing up to 350 W at 240 V sit inside the dimmer rating.
        • Transformer-fed fittings — lighting run through electronic transformers up to 350 W is within the dimmer rating.
        • Flush wall boxes — the mechanism is specified for flush mounting, which suits new work and renovation fit-offs.
        • Switched second circuit — the 40M 10 amp mechanism in the SD-3042VA-DIM-LIGHT-VW switches its circuit on and off.

        The SD-3042VA-DIM-LIGHT-VW carries an IP20 ingress rating and is not rated against water. Do not install it in outdoor or damp exposed locations, or anywhere subject to splash. The 40ERDM-VW dimmer is specified for light control only and is not rated for loads above 350 W.

        (SD-3042VA-DIM-LIGHT-VW)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU SD-3042VA-DIM-LIGHT-VW
        Model # SD-3042VA-DIM-LIGHT-VW
        Package Weight 0.122kg
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Switches
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Colour Vivid White
        Rated Current (A) 10
        Height (mm) 120
        Width (mm) 78
        Depth (mm) 12
        Complete / Skin Only / Grid Plate Only Complete
        Number of Switches / Gangs 2
        Mounting Flush
        Voltage (V) 240
        Wattage (W) 350
        Dimmable Yes
        IP Rating IP20
