Learn more by watching our Clipsal Iconic 41E10PBSWM-VW | Push Button Wiser Switch Mechanism, 10A, Controllink, 3-Wire video.
Additional related video.
Additional related video.

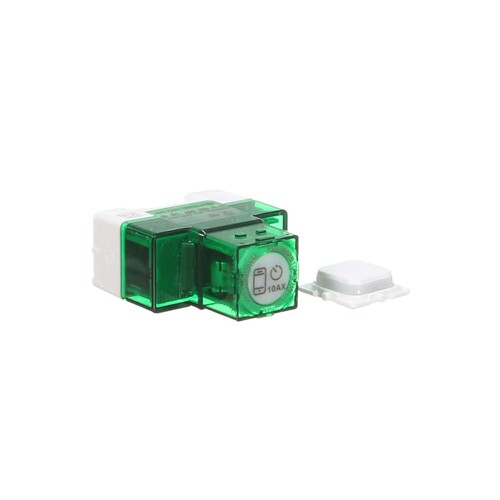

The Clipsal Iconic 41E10PBSWM-VW is an electronic push-button switch mechanism rated 10 AX at 220 to 240 V a.c. The 41E10PBSWM-VW uses a 3-wire configuration in Vivid White and needs a neutral at the switch position. Configuration and control run over Bluetooth Low Energy through the Wiser Room App on a smartphone. The mechanism complies with AS/NZS 60669.2.1 for safety and EMC, and AS/NZS 4268 for radio.
Multi-way switching in an existing house usually means pulling strapping wire between every switch position, which is rarely possible in a finished wall. The 41E10PBSWM-VW instead links switch positions over a low-voltage ControlLink run of up to 50 metres in total. A two-way retrofit can reuse the existing two-core cable between the old switch positions. Configuration is done on a phone rather than at the switchboard.
The mechanism drops into a standard Iconic grid on 84 mm mounting centres, so the plate, skin and fit-off match the rest of an Iconic job. Cover plates from the Iconic and Pro Series ranges both fit, which keeps the finish consistent across a house. On repeat work the Wiser Room App can copy settings between identical switches, which cuts configuration time on apartment blocks and multi-unit fit-offs. An installer restore point saves the commissioned settings if a restore is needed later.
The 41E10PBSWM-VW is rated IP20 and is not suitable for outdoor, damp or wash-down positions, and operating humidity is limited to 5 to 90 per cent non-condensing. The mechanism has no over-current or short-circuit protection, so circuit protection must remain upstream at the switchboard. Loads above the derated multi-gang rating must not be connected.
Verified Sparky Direct customer reviews: Clipsal Iconic 41E10PBSWM-VW | Push Button Wiser Switch Mechanism, 10A, Controllink, 3-Wire (41E10PBSWM-VW)
"Clipsal Quality part, easy to set up and install." — Ben
"Item as described. Arrived quickly and a great price compared to other options." — AK
(41E10PBSWM-VW)
The 41E10PBSWM-VW complies with AS/NZS 60669.2.1 for safety and electromagnetic compatibility, and AS/NZS 4268 for radio equipment. The mechanism is rated IP20 and carries over-temperature protection. Relative humidity is limited to 5 to 90 per cent, non-condensing.
A minimum wall box depth of 70 mm is required for the 41E10PBSWM-VW. The mechanism clips into a standard Iconic grid on 84 mm Australian pattern mounting centres and mounts flush. Wiring is 3-wire, so a neutral must be present at the switch position. Installation is fixed wiring work for a licensed electrician.
Clipsal Iconic cover plates and Pro Series cover plates both fit this mechanism. The skin clips over the grid once the mechanism is fitted and the grid locking bar is set to the closed position. The switch is supplied with a Vivid White push-button.
ControlLink carries the switching signal over a low-voltage control conductor between positions instead of mains strapping wire. Up to five ways are supported. One run takes a maximum of three switch mechanisms plus two ControlLink modules, with total ControlLink cable length capped at 50 metres.
A maximum of three primary mechanisms fit in one plate, and the load rating derates as they are added. One mechanism carries 10 A, two carry 7.5 A each, and three carry 6.5 A each. In a 3-gang plate the middle mechanism must face the opposite way to the other two.
Schneider Electric warrants this product for two years. Warranty runs from the invoice date and is handled as a Clipsal in-home warranty, so the claim is dealt with directly rather than by returning the mechanism. Warranty is void if the product is not installed by a licensed electrician.
The 41E10PBSWM-VW is rated IP20 for indoor installation only and must not be used outdoors or in damp or wash-down positions. It carries no over-current or short-circuit protection, so circuit protection stays upstream. Connected loads must not exceed the derated multi-gang rating.
The Clipsal by Schneider Electric 41E10PBSWM-VW is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 41E10PBSWM-VW |
| Model # | 41E10PBSWM-VM |
| Barcode # | 9311554800093 |
| Package Weight | 0.080kg |
| TYPE | VALUE |
|---|---|
| Type | Switches |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal Iconic |
| Colour | Vivid White |
| Rated Current (A) | 10 |
| Height (mm) | 22 |
| Width (mm) | 48 |
| Depth (mm) | 70 |
| Depth (mm) | 56 |
| Protection | Over temperature protection |
| Mounting | Flush |
| Load type | Dimmable LED lighting driver: 10 A LED lighting driver (non-dimmable): 10 A Electronic transformer: 10 A Medium voltage halogen lamp: 10 A Linear fluo |
| Wiring | 3 wire requires Neutral |
| Battery Backup | Backup memory - date and time for 6 h Backup memory - program for indefinite period |
| IP Rating | IP20 |
| Controller type | Push-button By mobile application Multi-way control via ControlLink |
| Material | Plastic |
| Voltage (V) | 220-240V AC |
| Voltage (V) | 220-240 |
