        Clipsal MX9C112510 | MAX9 Contactor 25A 240V AC 1NO
        $71.80 $65.27 ex. GST
        Video

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

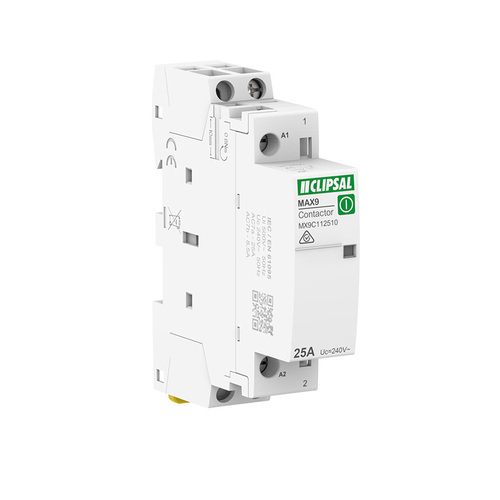

        Clipsal MX9C112510 | MAX9 Contactor 25A 240V AC 1NO

        This MAX9 product is a modular contactor.
        It is a 1P modular contactor with 1 normally open contact.
        Ideal for Hot water Control

        Features:

        • The rated current is 25A for AC-7a.
        • The Ue rated operational voltage is 240VAC.
        • The Uc control voltage is 240VAC.
        • This device could be used for control circuits.
        • This device could be used for remote switching small motors (fans, mixers) or HVAC system applications.
        • This product is compliant with IEC/EN 61095 standard.
        • The MAX9 is targeted to residential for individual and collective buildings.
        • It has an electrical endurance going up to 100000 cycles and a mechanical endurance going up to 1000000 cycles.
        • The operating frequency is 50Hz.
        • It can be mounted on a DIN rail for modular installation.
        • Its width is 2 pitches of 9mm.
        • The product colour is white (RAL9003).
        • The dimensions are (W) 18mm x (H) 81mm x (D) 63mm.
        • According to EN 61095 standard, the degree of protection is IP20 and IP40 in the enclosure.
        • The operating temperature is -5-70 øC.
        • The storage temperature is -40-70 øC.

        (MX9C112510)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9C112510
        Barcode # 9311554814236
        Shipping Weight 0.1240kg
        Shipping Width 0.023m
        Shipping Height 0.080m
        Shipping Length 0.100m
        Shipping Cubic 0.000184000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 25A
        Poles 1NO
        Voltage (V) 240Vac
        Equivalent Hager Reference ESC125
        Coil Voltage 240Vac
        Equivalent Max 4 Reference 4CNT1
