        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

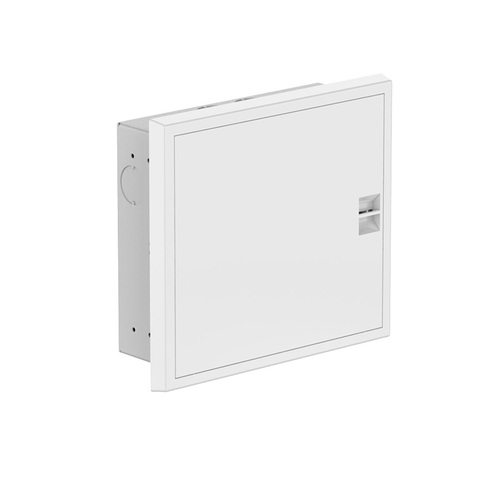

        Clipsal MX9E1111F | MAX9 Enclosure 1 row 11 Mod Flush

        Features:

        • MAX9 switchboard enclosure is Flush mounted.
        • The rated current is 100A.
        • This switchboard is composed of 1 row of 11 modules of 18mm (11 modules total).
        • It can accommodate all types of modular Clipsal devices.
        • Plain Door
        • The provided equipment is an earthing bar, neutral bar, circuit identification label and blanking plate.
        • It is dedicated to the residential market.
        • The Ue rated operational voltage is 230VAC or 415VAC.
        • The Ui rated insulation voltage is 500V.
        • Removable DIN rail helps organise the cables in position before mounting the devices
        • Ample Earth and Neutral terminals to suit typical configurations and comply with MEN type system
        • Multiple cable entry/exit knock-outs
        • Extra wiring space with 135 mm Space between the DIN rails and sufficient space under the DIN rail
        • The degree of protection is IP30 in an enclosure.
        • This switchboard complies with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards.
        • The switchboard colour is white electric (RAL9003)
        • Width: 310mm
        • Height: 280mm
        • Depth: 96mm

        (MX9E1111F)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9E1111F
        Barcode # 9311554814458
        Package Weight 2.920kg
        Package Width 0.280m
        Package Height 0.105m
        Package Length 0.313m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Height (mm) 280
        Width (mm) 310
        Depth (mm) 96
        Equivalent Max 4 Reference 4FC11FD-WE
