        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs

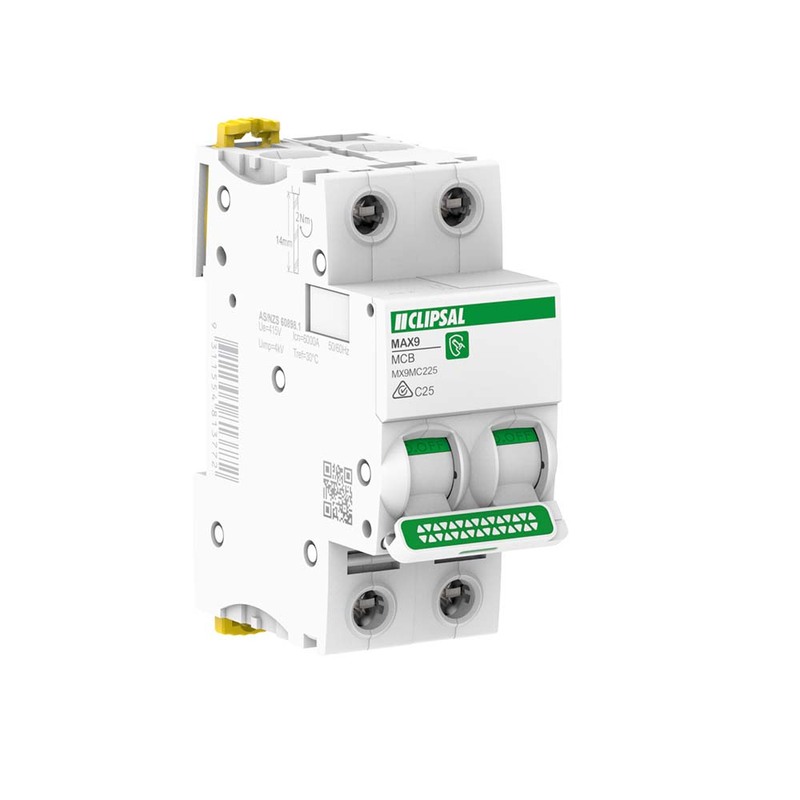

        Clipsal MX9MC225 | 25amp Two Pole Circuit Breaker 6kA | MAX9

        The Clipsal MX9MC225 MAX9 product is a low voltage miniature circuit breaker (MCB).
        MX9MC225 is a 2P circuit breaker with 2 protected pole and 25A In rated current and C tripping curve.

        Miniature Circuit Breakers

        Features and benefits:

        • Unique new white finish for a fresh modern look.
        • The standard characteristic is C-Curve suits most applications.
        • Complete solution with 1, 2 & 3 pole versions.
        • Option of 1P,  2P & 3P 63A MCB with red toggle where MCB is used as the main incomer.
        • Compact standardised and consistent module dimensions.
        • Lift-up terminals. ‘No hot spot’ terminations and all cable strands are locked in.
        • Combination head screws, choice of screwdrivers.
        • MCB mechanism is free tripping and If the switch is held in the ON position, the MCB will still operate.
        • Clipsal MCBs allow line or load cables to be connected at either top or bottom for greater installation flexibility
        • The Icn rated short circuit breaking capacity is up to 6000A at 415VAC conforming to AS/NZS 60898 standard.
        • This product is compliant with AS/NZS 60898 standard.
        • This miniature circuit breaker protects the circuit against short circuits and overload currents.
        • The MAX9 is targeted to residential for individual and collective buildings.
        • It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
        • The Ue operational voltage is 415VAC.
        • The Ui rated insulation voltage is 500VAC.
        • The operating frequency is 50Hz or 60Hz.
        • It can be mounted on a DIN rail for modular installation.
        • Its width is 4 pitches of 9mm.
        • The product colour is white (RAL9003).
        • The dimensions are (W) 36mm x (H) 85mm x (D) 75mm.
        • According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in the enclosure.
        • The operating temperature is -25-70 øC.
        • The storage temperature is -40-85 øC.

        (MX9MC225)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9MC225
        Model # MX9MC225
        Barcode # 9311554813772
        Package Weight 0.216kg
        Package Width 0.085m
        Package Height 0.075m
        Package Length 0.035m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 25A
        Voltage (V) 415Vac
        Breaking Capacity 6kA
        Curve C-curve
        Poles 2P
        Equivalent Max 4 Reference 4CB225/6
        Equivalent Hager Reference MSN225
