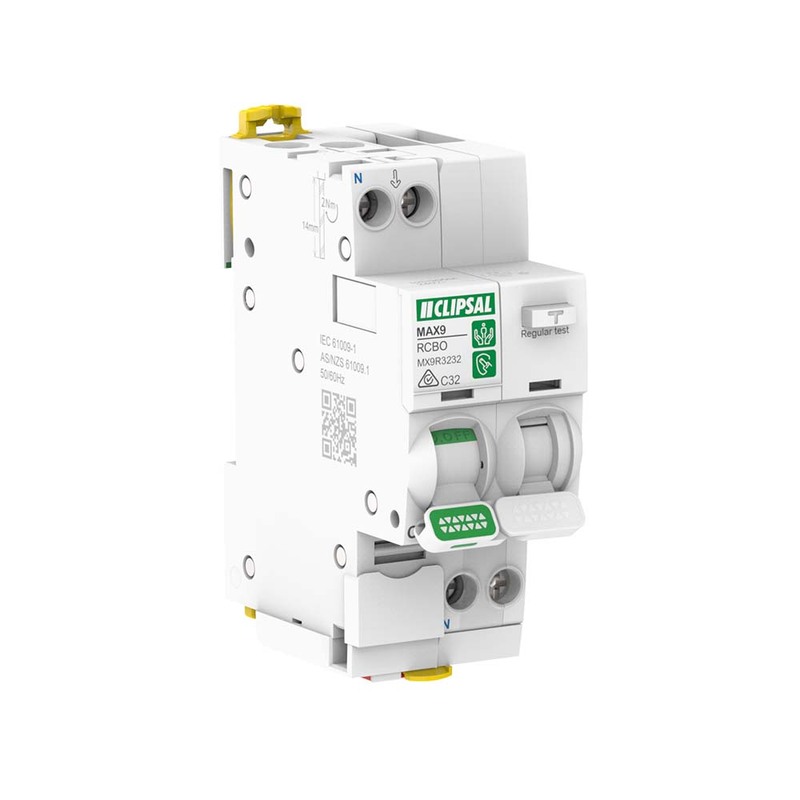

        Clipsal MX9R3232 | 32A MAX9 RCBO 1PN C | 30mA Type A
        $33.33 $30.30 ex. GST

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs

        Clipsal MX9R3232 | 32A MAX9 RCBO 1PN C | 30mA Type A

        MCB/RCD Combinations – 2 module Type A RCBO

        These 240V single-phase + Neutral electronic combination devices are 2 modules wide and are compatible with top feeding MAXBAR.
        Separate flag indication for MCB or RCD tripping enables easy and speedy trip diagnosis.

        Electronic type devices derive their ‘action energy’ from the mains supply. They typically utilise much simpler toroidal sensors, coupled to sensing amplifiers, filters, discrimination circuits and triac driven solenoids to operate the contacts.
        The major advantages of electronic types lie in their simple construction, improving their chances in areas in adverse conditions where vibration and environmental conditions affect electrical products. The added benefit of electronic types is that the filters prevent unwanted tripping. These devices are voltage-dependent.

        Applications Standard – A Type

        • General applications.
        • Generators.
        • Extreme environmental conditions.

        The MAX9 Clipsal MX9R3232 is a residual current breaker with overcurrent protection (RCBO).
        The MX9R3232 is a 1P+N circuit breaker with 1 protected pole, 32A In rated current at 30øC and C tripping curve.


        • The operating frequency is 50Hz or 60Hz.
        • The earth leakage protection class is a type A with a sensitivity of 30mA.
        • The earth-leakage protection time delay is instantaneous.
        • The Icn rated short circuit breaking capacity is up to 6000A at 240VAC.
        • It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
        • This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
        • It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
        • It has an RCM quality label.
        • The Ue rated operational voltage is 240VAC.
        • The Ui rated insulation voltage is 440VAC.
        • It has a Uimp rated impulse withstand voltage of 4kV.
        • It can be mounted on a DIN rail for modular installation.
        • The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 91mm x (D) 75mm.
        • The product colour is white (RAL9003).
        • The product weight is 268g.
        • According to IEC 60529 standard, the degree of protection is IP20.
        • The pollution degree is 2.
        • The operating temperature is from -25øC to +70øC.
        • The storage temperature is from -40øC to +85øC.
        • This product complies with IEC 61009-2-2 and EN/IEC 61009-1 standards.



        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9R3232
        Barcode # 9311554815721
        Shipping Weight 0.2340kg
        Shipping Width 0.044m
        Shipping Height 0.084m
        Shipping Length 0.102m
        Shipping Cubic 0.000377000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 32A
        Equivalent Hager Reference ADA932T
        Poles 1P+N
        Earth Leakage Sensitivity 30mA
        Voltage (V) 240Vac
        Equivalent Max 4 Reference 4RCBM232/30
        Curve C-curve
        Breaking Capacity 6kA
        Tripping Standard
        Earth Leakage Protection Class A-type
