        Clipsal WHA135RG | Weatherproof Switch 1 Pole 35 amp IP66
        $24.66 $22.42 ex. GST
        Video

        Learn more by watching our Clipsal WHA135RG | Weatherproof Switch 1 Pole 35 amp IP66 video.

        Description

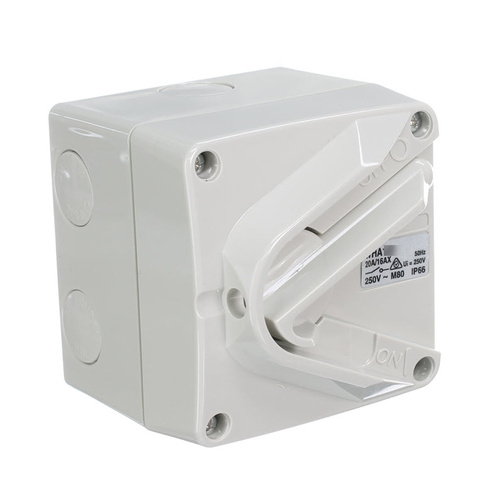

        Clipsal WHA135RG | Weatherproof Switch 1 Pole 35 amp IP66

        The Clipsal WHA135-RG weatherprotected isolating switch is suitable for virtually any external application. The impact resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a co-injection gasket. The range provides ample conduit entries and is suitable for side entry from a vertical duct. Its compact size means it is aesthetically pleasing and suits installations where space is limited such as with residential air conditioning, outdoor lighting and small motor control.

        Features

        • 1 gang weatherproof Isolating switch
        • 1 way switch, on/off switch
        • 8 mm diameter padlocking facility
        • M80 rating
        • Dimension: 84 mm Height x 85 mm Width x 85 mm Depth
        • Cables looped in and out from overhead
        • In and out from underground
        • In and out straight through the switch
        • Cables in through side and out through bottom
        • 25mm rear knockout in the base

        (WHA135RG)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU WHA135RG
        Barcode # 9311554644499
        Shipping Weight 0.2290kg
        Shipping Width 0.090m
        Shipping Height 0.090m
        Shipping Length 0.090m
        Shipping Cubic 0.000729000m3
        TYPE VALUE
        Type Isolators & Switches Weatherproof
        Brand Clipsal by Schneider Electric
        Colour Chemical Resistant Grey
        Height (mm) 84
        Width (mm) 85
        Depth (mm) 85
        Protection IP66
        Conduit Entries 3 x 20mm & 4 x 25mm
        Motor Rating M160
        Material PVC
        Voltage (V) 250 V
