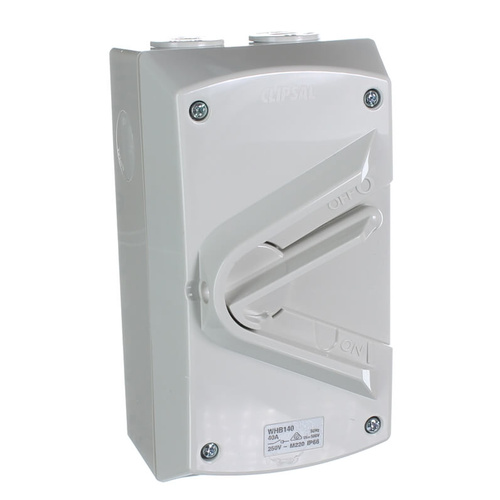

        Clipsal WHB140-RG | Weatherproof Isolator 1 Pole 40 amp IP66
        $32.90 $29.91 ex. GST

        Learn more by watching our Clipsal WHB140-RG | Weatherproof Isolator 1 Pole 40 amp IP66 video.


        Clipsal WHB140-RG | Weatherproof Isolator 1 Pole 40 amp IP66

        Surface Switches - Weather Protected, Surface Switches - WHB Series - Weathershield - IP66, Switch 250V 40A - single pole (formerly WHS35).

        The WHA/WHB/WHC series of weatherprotected isolating switches is a robust range of switches suitable for virtually any external application. The impact resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a co-injection gasket. The range provides ample conduit entries and is suitable for side entry from a vertical duct. Its compact size means it is aesthetically pleasing and suits installations where space is limited such as with residential air conditioning applications


        • 1 gang Isolating switch
        • 1 way, on/off switch
        • 8 mm diameter padlocking facility
        • M220 rating
        • Dimension: 85 mm Height x 165 mm Width x 94 mm Depth
        • Cables looped in and out from overhead
        • In and out from underground
        • In and out straight through the switch
        • Cables in through side and out through bottom
        • Two 25mm rear knockouts are moulded in the base



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU WHB140-RG
        Barcode # 9311554644284
        Shipping Weight 0.4880kg
        Shipping Width 0.100m
        Shipping Height 0.085m
        Shipping Length 0.175m
        Shipping Cubic 0.001488000m3
        TYPE VALUE
        Type Isolators & Switches Weatherproof
        Brand Clipsal by Schneider Electric
        Colour Chemical Resistant Grey
        Rated Current (A) 40
        Height (mm) 85
        Width (mm) 165
        Depth (mm) 94
        Additional Feature Padlocking facility
        Protection IP66
        Motor Rating M220
        Conduit Entries 2 x 25mm plain & 4 x 25mm screwed
        Voltage (V) 250
