        HAGER ADC920T | 20Amp 6 kA Single Pole RCBO
        $35.15 $31.95 ex. GST

        Learn more by watching our HAGER ADC920T | 20Amp 6 kA Single Pole RCBO video.

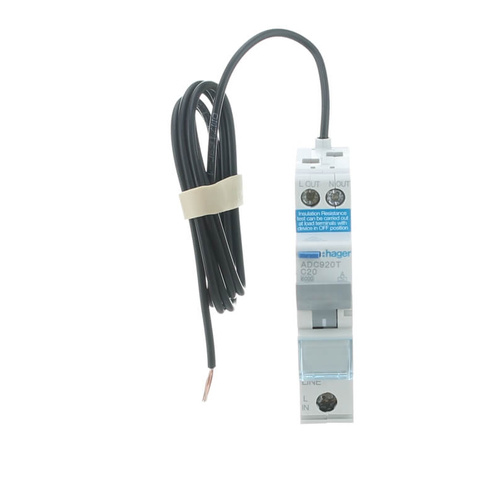

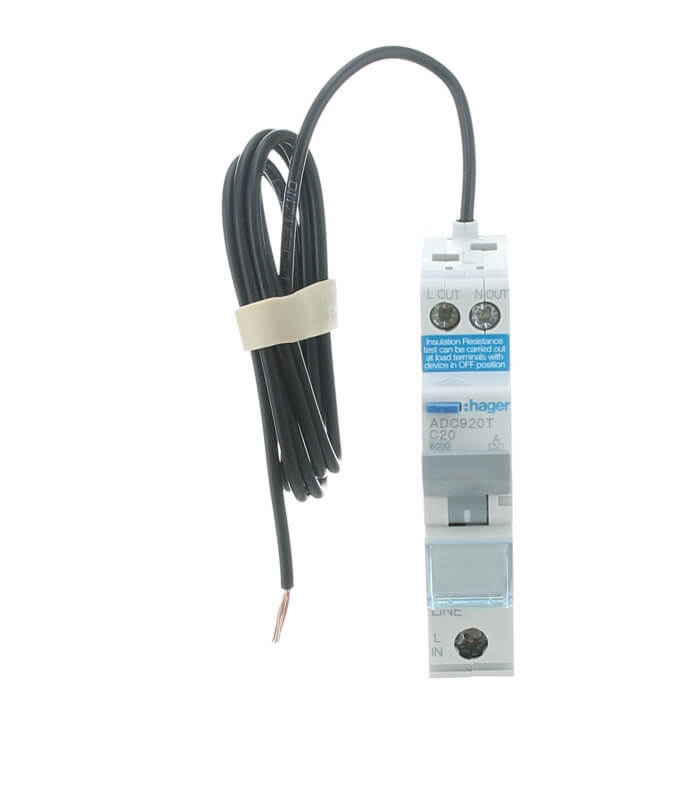

        HAGER ADC920T | 20Amp 6 kA Single Pole RCBO

        The Hager ADC920T is a Residual Current Breaker with Overcurrent Protection.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
        The Hager 20 Amp Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

        This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.

        Extra Space when Wiring as compared to the ADC3XXT range: Reduced height allows more wiring space in the enclosure (up to 20% extra in Golf Enclosures)

        Electrically Bi-directional

        Switched Neutral

        Insulation Resistance test is faster to perform

        Built in fault trip indicator

        It's reduced size makes it a perfect replacement for an MCB


        • Rated current (In): 20A
        • Rated voltage (Un): 240V
        • Rated residual operating current (I n) 30mA
        • Curve Type C
        • Operating characteristic Type A
        • Rated Frequency 50Hz
        • Rated short-circuit capacity (Icn) 6kA
        • IP rating or Protection degree IP2x terminals
        • Standard AS/NZS 61009

        Switched Neutral Applications:
        Accommodate the requirement for switched neutral applications with a smaller footprint.
        Examples include: - Construction sites (temporary boards) - Transportable structures (demountable, caravans, motorhomes etc) - Patient areas - Shows and carnivals - EVCS - Solar (PV) installations



        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADC920T
        Barcode # 3250611033363
        Shipping Weight 0.1590kg
        Shipping Width 0.075m
        Shipping Height 0.035m
        Shipping Length 0.150m
        Shipping Cubic 0.000394000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 20
        Height (mm) 85
        Width (mm) 18
        Depth (mm) 77
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Overcurrent trip characteristic C Curve
        Number of Poles 1P+N
        Voltage (V) 240V
        Earth Leakage Protection Class Type A
        Residual Current 30mA
        Earth Fault Wave Form Type A
        Earth Leakage Sensitivity 30mA
        Breaking Capacity 6kA
        IP Rating IP20 ( IP40 Enclosed )
        Curve C
        Box increments (This item is sold individually) 54
