        HAGER ADM440T | 40 Amp 4 Pole 6kA | 30mA RCD/MCB Combo
        $149.54 $135.95 ex. GST
        Video

        Learn more by watching our HAGER ADM440T | 40 Amp 4 Pole 6kA | 30mA RCD/MCB Combo video.

        Description

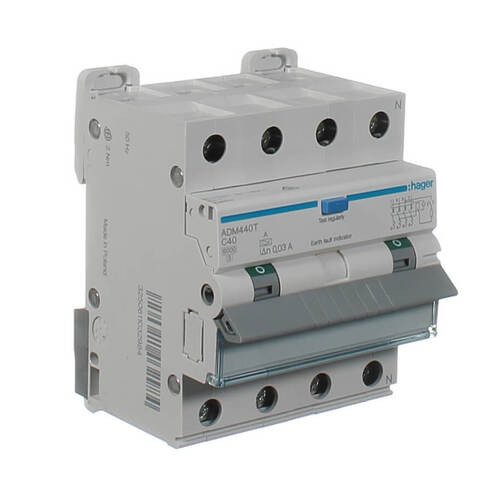

        HAGER ADM440T | 40 Amp 4 Pole 6kA | 30mA RCD/MCB Combo

        Features:

        • Number of modules: 4
        • Number of poles: 4 P
        • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA
        • Curve: C
        • Rated operational voltage Ue: 240/415 V
        • Rated current: 40 A
        • Rated residual operating current: 30 mA
        • Residual current type: A
        • Frequency: 50 Hz
        • Rated insulation voltage: 500 V
        • Rated impulse withstand voltage: 4 kV
        • Operating temperature: -25 to 40 °C
        • Electric endurance in number of cycles: 2000
        • Number of mechanical operations: 4000
        • Tightening torque: 2Nm
        • Height of installed product: 84 mm
        • Width of installed product: 71 mm
        • Depth of installed product: 70 mm
        • Fixing mode: Din-Rail
        • Standard text IEC 61009-1 ; AS/NZ 61009-1



        (ADM440T)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ADM440T
        Barcode # 3250611032984
        Shipping Weight 0.4610kg
        Shipping Width 0.073m
        Shipping Height 0.074m
        Shipping Length 0.100m
        Shipping Cubic 0.000540000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Range ADM
        Rated Current (A) 40
        Height (mm) 84
        Width (mm) 71
        Depth (mm) 70
        Standards AS/NZ 61009-1
        Mounting Din Rail
        Breaking Capacity 6kA
        Voltage (V) 240/415
        Earth Leakage Sensitivity 30mA
        IP Rating IP20 ( IP40 Enclosed )
        Curve C
        Neutral Position Right
        Number of Poles 4
        Earth Leakage Protection Class Type A
