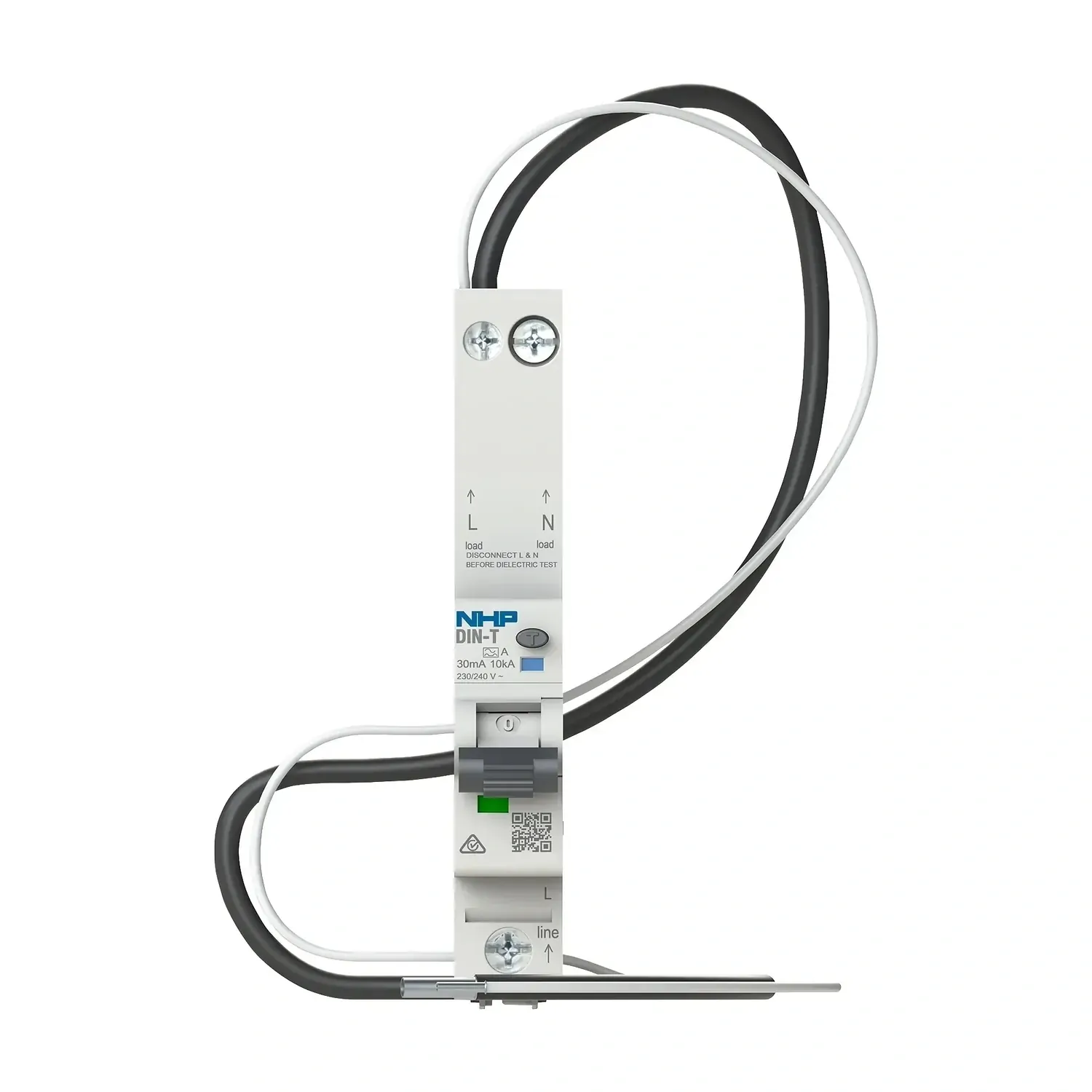

        NHP DTRL3230A | 32A DIN-T RCBO 1P+N 10kA 30mA | Type A

        The NHP DTRL3230A is a 32A, 10kA RCBO engineered for commercial, industrial, and mining applications, delivering reliable residual current protection with built-in overload and short-circuit safeguarding. Its longbody DIN-rail design offers compact installation with easier wiring access — ideal for space-conscious switchboards.

        Providing Type A leakage detection, it protects against AC and pulsating DC faults with a sensitive 30mA trip setting. The C Curve trip characteristic makes it suitable for most general-purpose circuits, and the pin-type terminal connection ensures fast, secure mounting. With a mechanical endurance of 20,000 cycles and operation from -25°C to 55°C, the DTRL3230A is built for tough environments.

        NHP DTRL3230A Features

        • 32A, 10kA RCBO with Type A Leakage Protection — Ideal for circuits requiring residual current and overload protection
        • C Curve Trip Characteristic — Suited for circuits with typical inrush currents
        • 30mA Leakage Sensitivity & 240V AC Rated — Provides effective personal and equipment protection
        • DIN Rail Mounted, 1 Module Wide — Longbody design ensures secure fit and ease of access
        • 20,000 Mechanical / 10,000 Electrical Cycles — Designed for durable operation in demanding field conditions

        DTRL3230A FAQ

        Q: What is the short-circuit breaking capacity?
        A: It’s rated at 10kA, making it suitable for high fault current environments.

        Q: Is this RCBO compliant with Australian electrical standards?
        A: Yes, it meets AS/NZS 61009 and other relevant compliance standards.

        Q: Can this be used as a circuit isolator?
        A: Yes, the DTRL3230A also serves as a circuit isolator in addition to its protective functions.

        (DTRL3230A)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.


        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.


        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specification Details
        Model DTRL3230A
        Rated Current 32 A
        Rated Voltage 240 V AC
        Rated Leakage Current 30 mA
        Frequency 50/60 Hz
        Breaking Capacity 10 kA
        Trip Curve C
        Impulse Withstand Voltage 4 kV
        Tripping Time 300 ms
        Min Service Voltage 184 V
        Max Operating Voltage 264 V
        Rated Residual Make/Break Capacity 10,000 A
        Mounting Method DIN Rail
        IP Rating IP40
        Mechanical Life 20,000 Cycles
        Dimensions (H x W x D) 117 mm x 17.5 mm x 75.8 mm
        Weight 0.2 kg
        Operating Temperature -25°C to +55°C

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NHP
        SKU DTRL3230A
        Model # DTRL3230A
        Package Weight 0.235kg
        Package Width 0.037m
        Package Height 0.076m
        Package Length 0.158m
        TYPE VALUE
        Type Circuit Protection
        Brand NHP
        Rated Current (A) 32A
        Voltage Type AC
        IP Rating IP40
        Dimensions (mm) D 75.8mm x H 117mm x W 17.5mm
        Rated Voltage (V) 240V
        Rated Leakage Current 30mA
