        HAGER NT325C | 25 Amp Three Pole 10kA Circuit Breaker
        $51.65 $46.95 ex. GST
        Video

        Learn more by watching our HAGER NT325C | 25 Amp Three Pole 10kA Circuit Breaker video.

        Description

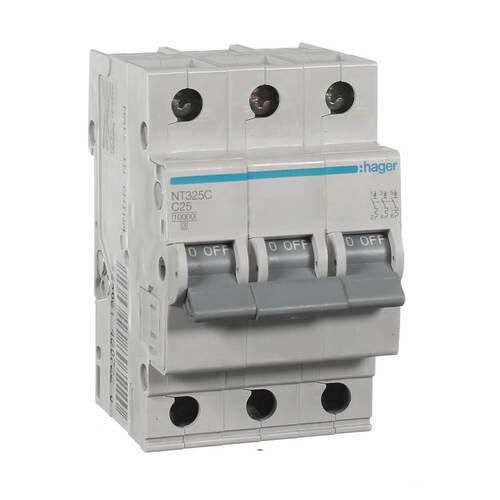

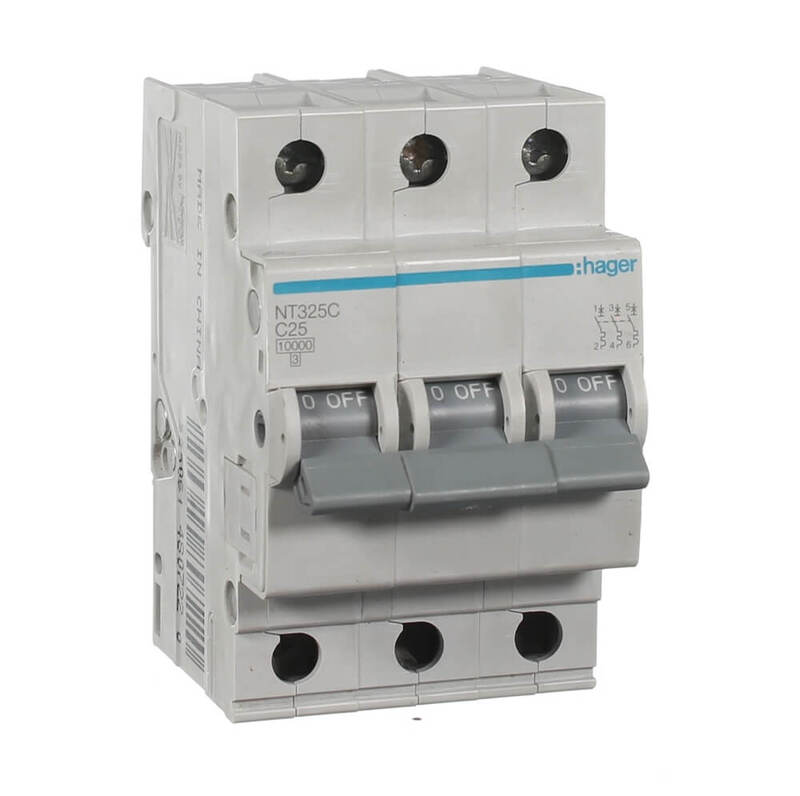

        HAGER NT325C | 25 Amp Three Pole 10kA Circuit Breaker

        The Hager NT325C is a three pole circuit breaker which protects and control circuits against overloads and short-circuits. The NT325C circuit breaker is rated at 10kA and is suitable for commercial and domestic applications.

        Features:

        • 25 Amp
        • 3 Pole
        • 10kA
        • Curve C
        • Rated short circuit breaking capacity 25 kA
        • Frequency: 50/60 Hz
        • Rated insulation voltage: 500 V
        • Operating temperature: -25 to 60 °C
        • Electric endurance in number of cycles: 4000
        • Number of mechanical operations: 20000
        • Top and bottom screw terminals connection capacity with massive conductor: 1/35 mm²
        • Top and bottom screw terminals connection capacity with flexible cable: 1/25 mm²
        • Tightening torque: 2,8Nm
        • Height of installed product: 83 mm
        • Width of installed product: 52.5 mm
        • Depth of installed product: 70 mm

        (NT325C)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU NT325C
        Barcode # 3250614807220
        Shipping Weight 0.3380kg
        Shipping Width 0.070m
        Shipping Height 0.050m
        Shipping Length 0.085m
        Shipping Cubic 0.000298000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Hager Electrical
        Rated Current (A) 25
        Height (mm) 83
        Width (mm) 52.5
        Depth (mm) 70
        Standards AS/NZS 60898
        Mounting Din Rail
        Curve C
        Number of Poles 3
        Voltage (V) 500
        Breaking Capacity 10kA
        IP Rating IP20 ( IP40 Enclosed )
