        Hager ESC425 | 25Amp 4 Pole Contactor 230V 4NO 50Hz
        $76.94 $69.95 ex. GST
        Video

        Learn more by watching our Hager ESC425 | 25Amp 4 Pole Contactor 230V 4NO 50Hz video.

        Description

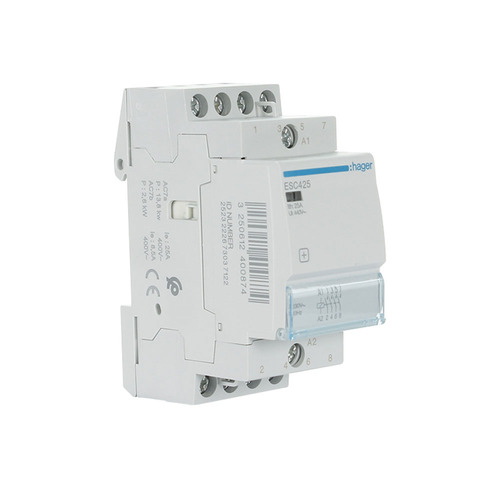

        Hager ESC425 | 25Amp 4 Pole Contactor 230V 4NO 50Hz

        A Contactor is an electrically controlled switch used to control a larger power load.

        The Hager ESC425 contactor is commonly controlled by a circuit with much less current than the contactor switch circuit. It is ideal for controlling the power to electric motors and large lighting applications. The ESC425 is a 25 Amp contactor - which is a perfect size to control the power going to an inductive load such as a pool pump, hot water system etc. Can be used in conjunction with any timer to satisfy inductive loads.

        Features:

        • Contactor
        • 230v
        • 4 Pole
        • 25amp
        • 4 Normally open
        Dimensions
        • Depth of installed product: 60 mm
        • Height of installed product: 83 mm
        • Width of installed product: 35,75 mm
        Fluorescent bulbs control
        • Max. power with fluorescent parallel lamps: 810 VA
        • Fluorescent lamps in duo circuit: 1990 VA
        • Max. load fluorescent lamp: 950 VA
        Incandescent bulbs control
        • Max. power with incandescent lamps: 1900 W

        Main electrical features

        • Rated operational voltage Ue 400 V
        • Frequency 50 Hz

        Voltage

        • Rated insulation voltage 440 V
        • DC control voltage 0 V
        • Command voltage AC 230 V
        • Rated impulse withstand voltage 4 kV

        Electric current

        • Rated current 25 A
        • Thermal rated current outside of housings 25 A
        • Acceptable current load with AC7 category A 25 A
        • Acceptable current load with AC7 category B 8,5 A

        (ESC425)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU ESC425
        Barcode # 3250612400874
        Shipping Weight 0.2150kg
        Shipping Width 0.040m
        Shipping Height 0.040m
        Shipping Length 0.100m
        Shipping Cubic 0.000160000m3
        TYPE VALUE
        Type Contactor
        Brand Hager Electrical
        Rated Current (A) 25
        Height (mm) 83
        Width (mm) 35,75
        Depth (mm) 60
        Protection IP2X
        Mounting Din Rail
        Number of Poles 4
        Voltage (V) 230
        Number of Modules 2
        Contact Configuration 4 x N/O
