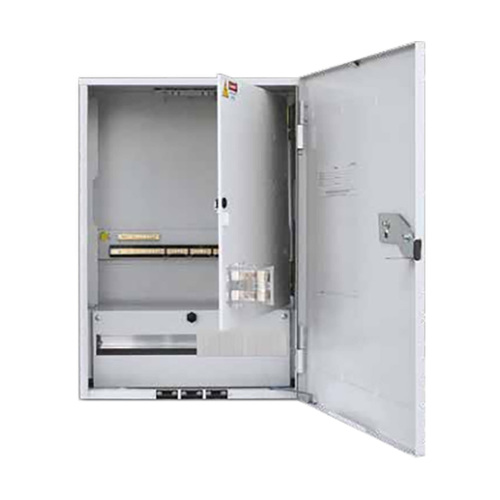

Hager | Queensland Meterbox 24 Pole DIN IP23 | Steel Galvanised Complete
The Hager VYMBQ is a 24 pole DIN switchboard enclosure rated IP23, designed for single-phase and three-phase residential and commercial meter installations across Queensland. The VYMBQ complies with AS/NZS 3000 and AS/NZS 3012, and includes a 12 pole busbar, 20 pole fillers, door padlock kit, and full component bag for immediate installation.
Meterbox upgrades and new residential builds in Queensland require weatherproof enclosures that manage cable entry reliably. Electricians value the Hager VYMBQ for its clear service isolation link and RCD neutral links pre-fitted, reducing assembly time on the job. The IP23 rating and powder-coated steel construction resist weather exposure during installation, and the door padlock kit suits security requirements on multi-dwelling properties and rental installations.
Licensed electricians frequently specify the Hager VYMBQ for meter box upgrades and new-build wiring, particularly when expanding capacity or replacing older enclosures. The 24 pole DIN design accepts standard MCB and RCD protection devices, simplifying stock rotation and parts compatibility across domestic and small commercial jobs. The complete component bag eliminates site visits for missing pole fillers or neutral links, reducing call-back risk and improving job margins.
Features
- 24 Pole DIN rating — accommodates standard single and double pole circuit breakers, RCBOs, and safety switches on Queensland Service Installation Rules configurations.
- IP23 protection rating — splash and dust resistant during installation and outdoor wall mounting, but not rated for submersion or high-pressure water spray.
- Pre-fitted service isolation link — clear mains isolation built-in, reducing the risk of inadvertent shock during installation and maintenance.
- Three RCD neutral links supplied — supports AS/NZS 3000 compliance for RCD grouping and residual current protection on separate circuits.
- Complete component bag — includes 20 pole fillers, 12 pole busbar (KDN180A), 3 cable ties, door padlock kit, 6mm cable lug, circuit ID labels, and meter neutral link cover.
- Powder-coated steel construction — 1.2mm Z275 galvanised steel with internal and external RAL7035 white powder coat resists rust and extends enclosure life in weathered installations.
- Patented cord retainer and flush door catch — cable entry design prevents twisting and reduces water ingress from cable flex movement; spring-loaded catch holds the door securely under normal wind loading.
- Easy tighten top cable entry slider — rapid assembly without separate tools, allowing quick cable routing adjustments on site.
- Captive escutcheon screws — prevents loss of fasteners during installation and re-termination; reduces the risk of screw drop into inaccessible enclosure cavities.
- Vinyl circuit ID and mains location labels supplied — supports AS/NZS 3000 and electrical safety audits; clearly marks isolation points for emergency responders.
Where to use
- Queensland residential meter installations — new builds, extensions, and meter upgrades on single-phase and three-phase domestic supplies under the Service Installation Rules.
- Multi-dwelling and rental properties — the VYMBQ accommodates multiple sub-circuits and RCD grouping on properties with divided electrical supplies or individual unit isolation.
- Meter box replacements and upgrades — electricians swap aging or non-compliant enclosures using the 24 pole DIN design to support larger or additional circuit protection.
- Commercial office and retail tenancy fit-outs — suitable for small commercial installations where space is limited and standard three-phase protection is not required.
- Renovations with circuit additions — the spare pole capacity in the 24 pole design allows for future circuit expansion without full enclosure replacement.
- Properties with dual metering or switchboard sub-boards — supports secondary distribution where a main board and outbuilding sub-board share the property electrical architecture.
The Hager VYMBQ is not rated for external or fully exposed outdoor mounting without a weatherproof cabinet or cover. The IP23 rating does not provide protection against direct water jets or submersion, and the enclosure should not be installed below ground level or in wet pits. Do not install the VYMBQ in high-temperature locations (above 40°C ambient) or in corrosive chemical environments; the powder coat may degrade. The enclosure is designed for indoor wall mounting, pole mounting with additional support brackets, or recessed into wall cavities; it does not self-support in open-air use without additional reinforcement.
