This video shows Major tech IP67 multimeters used underwater.
Major Tech multimeters are one of the first to be designed to meet the IP67 rating.
IP67 is the Ingress Protection rating, where,
Major Tech IP67 multimeters can be used immediately, accurately and safely in highly humid conditions, and yes, you can turn the switch.
Additional related video.
Description:

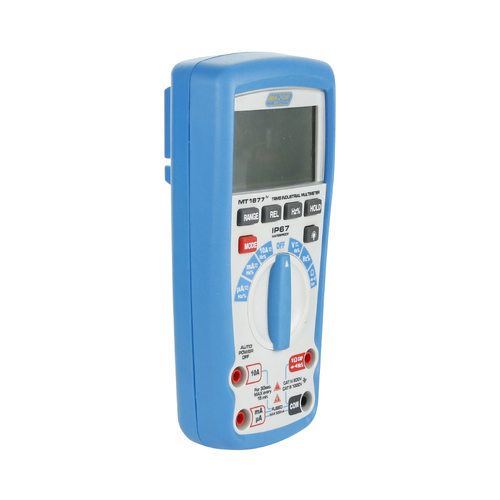

The MT1877 Digital Multimeter is a 4000 count True RMS auto ranging multimeter, with manual override. This meters offers a great feature of measuring frequency on AC voltage and current with the range of 50Hz to 400Hz. The large LCD display with clear range annunciations and backlight ensure that readings are easy to read under all circumstances. This meter ensures that if the rotary switch is turned in any direction whilst signals less than 1000V AC/DC are input into the meter, the meter will not be damaged. It is even protected against measuring voltage if the knob is set on the ohms range accidentally. This meter is perfect for technicians in maintenance, facility maintenance, installation and production equipment maintenance.
Features:
(MT1877)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 400mV – 1000V | 1V | ±(0.5% + 5 Digits) |
AC Voltage | 400mV – 1000V | 1V | ±(0.8% + 8 Digits) |
DC Current | 400uA – 10A | 10mA | ±(1.0% + 3 Digits) |
AC Current | 400uA – 10A | 10mA | ±(1.5% + 3 Digits) |
Resistance | 400Ω – 40MΩ | 10kΩ | ±(0.8% + 2 Digits) |
Capacitance | 99.99nF – 99.99mF | 0.01mF | ±(4.0% + 5 Digits) |
Frequency | 9.999Hz – 10MHz | 10KHz | ±(1.0% + 5 Digits) |
Duty Cycle | 0.1% – 99.9% | 0.1% | ±(1.2% + 2 Digits) |
AC Response | True RMS | ||
Digital Display | 4000 Count | ||
Continuity Test | Audible signal if the resistance is approx. 50Ω or less | ||
Diode Test | Test current 1mA typical, open circuit voltage 3.2V DC typical | ||
Non-Contact Voltage | Detection above 110V AC, LCD display turns red | ||
Data Hold | Yes | ||
Back Light | Yes | ||
Enclosure | IP67 Dust & Waterproof Double Moulded | ||
Battery | 9V | ||
Dimensions | 182 x 82 x 55mm | ||
Weight | 375g |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT1877 |
Barcode # | 6008229006142 |
Package Weight | 0.491kg |
Package Width | 0.060m |
Package Height | 0.190m |
Package Length | 0.120m |
TYPE | VALUE |
---|---|
Type | Mulitmeter |
Brand | Major Tech |
Dimensions | 182 x 82 x 55mm |
Battery | 9V |
Enclosure | IP67 |
