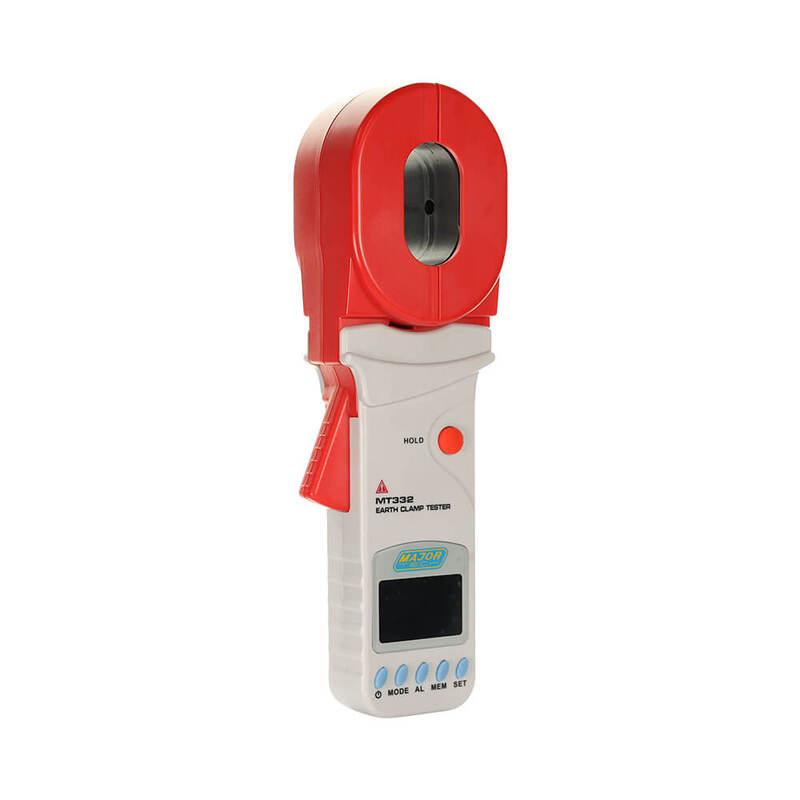

The Major Tech MT332 Earth Resistance Clamp Meter is a versatile tool designed for electricians to test earth resistance and leakage current in various loops. This device features a sleek black screen design, displaying resistance and current simultaneously.
With a measurement range from 0.001Ω to 1200Ω for resistance and 0.01mA to 20A for current, the MT332 ensures accurate and reliable results. It includes a quick self-test function, fast filtering technology to minimize strong interference, and data storage for 300 sets.
The MT332 also has Bluetooth connectivity for easy data transfer to mobile phones and features an alarm system for values exceeding set thresholds. Its robust design is shock, dust, and moisture-proof, making it suitable for demanding environments.
Q: What measurement ranges does the Major Tech MT332 cover?
A: It measures earth resistance from 0.001Ω to 1200Ω and current from 0.01mA to 20A.
Q: Can the MT332 store measurement data?
A: Yes, it can store up to 300 sets of data for later review and analysis.
Q: Does the MT332 have Bluetooth connectivity?
A: Yes, it features Bluetooth connectivity for easy data transfer to mobile phones.
Q: Is the MT332 suitable for use in harsh environments?
A: Yes, it is designed to be shock, dust, and moisture-proof, making it suitable for demanding environments.
(MT332)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Specification | Range | Resolution | Accuracy |
---|---|---|---|
Resistance | 0.010Ω – 0.099Ω 0.01Ω – 0.99Ω 1.0Ω – 49.9Ω 50.0Ω – 99.5Ω 100Ω – 199Ω 200Ω – 395Ω 400Ω – 590Ω 600Ω – 880Ω 900Ω – 1200Ω |
0.001Ω 0.01Ω 0.1Ω 0.5Ω 1Ω 5Ω 10Ω 20Ω 30Ω |
±(1% +0.01Ω) |
Current | 0.01mA – 9.95mA 10.0mA – 99.0mA 100mA – 300mA 0.30A – 2.99A 3.0A – 9.9A 10.0A – 20.0A |
0.01mA 0.1mA 1mA 0.01A 0.1A 0.1A |
±(2.5% +1mA) ±(2.5% +5mA) ±(2.5% +10mA) ±(2.5% +0.1A) ±(2.5% +0.3A) ±(2.5% +0.5A) |
Jaw Size | 55mm x 32mm | ||
Ω + Amp | Simultaneous reading on display | ||
Alarm | Prompts when the measured value exceeds the alarm setting value | ||
Batteries | 4x AA | ||
Dimensions | 285 x 85 x 58mm | ||
Weight | 1180g |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT332 |
Barcode # | 6008229041273 |
Package Weight | 2.140kg |
Package Width | 0.360m |
Package Height | 0.215m |
Package Length | 0.135m |
TYPE | VALUE |
---|---|
Type | Resistance Tester |
Brand | Major Tech |
Batteries | 4 x AA |
Safety Specs | IEC61010-1 CAT III 300V |
Jaw Size | 55mm x 32mm |
Includes | Carry Case, Meter, 4 x AA Batteries, Calibration Loop |
Current | 0.01mA - 20.0A |
Resistance | 0.010Ω - 1200Ω |
