Description:

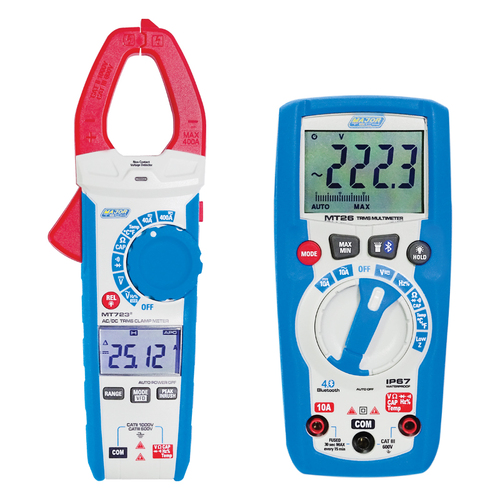

The Major Tech MTCK2 Electricians Starting Kit is an essential bundle for new electricians, combining two powerful tools: the MT723 Clamp Meter and the MT26 Multimeter. This combo offers comprehensive measurement capabilities, including voltage, current, resistance, capacitance, frequency, duty cycle, and temperature, catering to a wide range of tasks in various environments.
The MT723 Clamp Meter features a 4000-count backlit LCD display, a large 30mm cable clamp, and specialized functions like INRUSH Current Measurements, VFD voltage reading, and a built-in non-contact voltage detector (NCV) with a flashlight. It is designed for high accuracy in measuring up to 1000V in both AC and DC, with additional features like a continuity buzzer, diode test, peak mode, and data hold.
The MT26 Multimeter complements with similar precision, capable of measuring up to 600V in AC and DC settings and offering a robust 4000 count display with a 41-segment bar graph. It’s engineered for harsh environments with its IP67 dust and waterproof rating and includes an LED flashlight, auto power off, and temperature measurements ranging from -18°C to 760°C.
MT723 Clamp Meter Features:
MT26 Multimeter Features:
FAQ:
Q: What types of measurements can the MTCK2 kit perform?
A: The kit measures voltage, current, resistance, capacitance, frequency, duty cycle, and temperature.
Q: Is the MTCK2 kit suitable for fieldwork?
A: Yes, the MT26 Multimeter is IP67 dust and waterproof, making it ideal for outdoor and rugged environments.
Q: How does the non-contact voltage detection work?
A: The MT723 Clamp Meter includes an NCV feature that detects voltage through insulation or without direct contact, enhancing safety.
(MTCK2)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
MT723 Clamp Meter | Range | Accuracy |
---|---|---|
DC Current | 40.00A - 400A | ±(2.0% +8) |
AC Current | 40.00A - 400A | ±(2.0% +8) |
DC Voltage | 4.000V – 1000V | ±(1.0% +3) |
AC Voltage | 4.000V – 1000V | ±(1.2% +5) |
Resistance | 400.0Ω – 40MΩ | ±(1.5% +2) |
Frequency | 10Hz – 100kHz | ±(1.0% +5) |
Capacitance | 99.00nF – 100mF | ±(3.0% +5) |
Temperature | -20⁰C – 1000⁰C | ±(3.0%+3⁰C) |
Duty Cycle | 20.0% to 80% | ±(1.2% +10) |
Size | 220 x 80 x 39mm | |
Weight | 305gm | |
MT26 Multimeter | Range | Accuracy |
DC Current | 400.0mV - 600V | ±(1.0% +3) |
DC Current LowZ | 400.0mV - 400V | ±(1.5% +3) |
AC Current | 4.000V – 600V | ±(1.2% +5) |
AC Current LowZ | 4.000V – 400V | ±(1.5% +5) |
DC Voltage | 4.000A – 10A | ±(2.0% +3) |
AC Voltage | 4.000A – 10A | ±(2.5% +3) |
Resistance | 400.0Ω – 40MΩ | ±(1.5% +5) |
Frequency | 9.999Hz – 9.999MHz | ±(1.0% +5) |
Capacitance | 40.00nF – 4000µF | ±(3.0% +5) |
Temperature | 18⁰C – 760⁰C | ±(2.0% +5⁰C) |
Duty Cycle | 0.1% to 99.9% | ±(1.2% +2) |
Size | 147 x 68 x 50mm | |
Weight | 318gm |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MTCK2 |
TYPE | VALUE |
---|---|
Type | Starter Kit |
Brand | Major Tech |
Kit Includes | MT723, MT26 |
