Learn more by watching our Major Tech MT478 | 1000V AC/DC Voltage Tester video.
Additional related video.
Description:

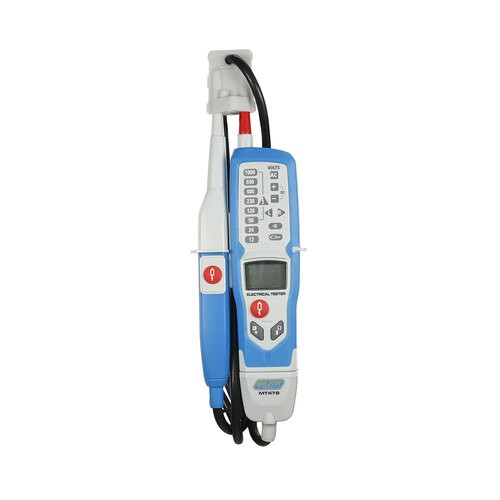

The MT478 is a 2-Pole voltage, continuity and phase tester with rapid LED indication of voltage levels. The backlit LCD display offers the user accurate voltage measurements. The voltage range is from 12V to 1000V AC/DC on LED indication and 6V to 1000V AC/DC on LCD display. When AC/DC Voltage is detected the meter has three ways to indicate the voltage, visual display (LED and LCD), sound and vibration when the load buttons are pressed. The vibration operates similar to traditional solenoid type voltage testers and meets IEC1010-1 CAT IV 600V safety requirements. The MT478 has a rotary field detection for testing 3-Phase systems as well as a single pole Phase Test. Other features include a built-in flashlight, Continuity Buzzer. Diode Test. High Quality heavy duty molded IP64 case, a thicker cord with wear indicator and well fitted and durable probe protector.
Features:
(MT478)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 6 to 1000V | 1V | ±(3.0% + 5 Digits) |
AC Voltage | 6 to 1000V | 1V | ±(3.0% + 5 Digits) |
Rotary Field | 100 – 400V | ||
RCD Test | 30mA@230V | ||
Resistance | 0-1999Ω | ||
Continuity Threshold | ≤400kΩ | ||
AC Bandwidth | 50Hz – 60Hz | ||
Digital Display | 2000 LCD | ||
Polarity Indication | Yes | ||
Overrange Indication | Yes | ||
Low Input Impedance | <6kΩ | ||
Load Test with Vibration | Max 3.5mA at 1000V | ||
Flashlight | Yes | ||
Enclosure | Double injection IP64 | ||
Low Battery Indication | Yes | ||
Batteries | 2 x AAA | ||
Weight | 237g | ||
Dimensions | 240 x 78 x 30mm | ||
Safety Specs | IEC61010-1 CAT IV 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT478 |
Barcode # | 6008229031076 |
Package Weight | 0.397kg |
Package Width | 0.060m |
Package Height | 0.300m |
Package Length | 0.090m |
TYPE | VALUE |
---|---|
Type | Voltage Tester |
Brand | Major Tech |
Dimensions | 240 x 78 x 30mm |
Batteries | 2 x AAA |
