        Major Tech MT935 | Motor and Phase Rotation Meter
        $121.00 $110.00 ex. GST
        Video

        Learn more by watching our Major Tech MT935 | Motor and Phase Rotation Meter video.

        Additional related video.

        Description

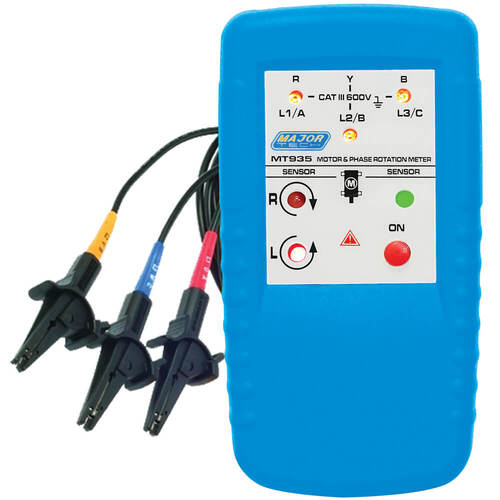

        Major Tech MT935 | Motor and Phase Rotation Meter

        Description:

        The MT935 is a compact handheld Motor and Phase Rotation indicator, which is battery operated. The unit can be utilized on a 3 Phase powered system or on a 3 Phase unpowered motor without having to worry about damage to the tester. When used on a 3 Phase powered system the meter is a field indication instrument which displays all three phases by lighting up its corresponding lamp. It then displays the rotation for clockwise or anti-clockwise on an LED. In 3 Phase motors it is possible to determine the motor connections U, V and W without mains voltage present, thus avoiding damage to pumps with reversed motor rotation. It operates from 1VAC to 400VAC.

        Features:

        • CAT IV 300V and CAT III 600V
        • LED Indication
        • Rotary field direction
        • 3-Phase neon Indication
        • Determines Motor Connection and magnetic Field Detection
        • Double injection rubber housing
        • Small lightweight and portable
        • Voltage range from 1VAC to 400VAC
        • Large size crocodile clips

        (MT935)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Specifications

        Function Range
        Clamp Diameter Range 20mm
        Detection Method LED Indication/non-contact
        Measuring Frequency 2 – 400Hz
        Nominal Voltage Rotary Detection 1 to 400V AC
        Nominal Voltage Phase Indirection 120V – 400V
        Phase Rotation Clock or Anti clock
        Visual Indication LED Indication
        Colours Red, Yellow Blue
        Casing Double injection rubber housing
        Batteries 9V
        Weight 130g
        Dimensions 130 x 69 x 32mm
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT935
        Barcode # 6008229026959
        Shipping Weight 0.5340kg
        Shipping Width 0.070m
        Shipping Height 0.210m
        Shipping Length 0.140m
        TYPE VALUE
        Type Phase Rotation Meter
        Brand Major Tech
        Batteries 9V
        Dimensions 130 x 69 x 32mm
