    Video

    Learn more by watching our Volt Safety MET-V-T895 | Phase Rotation Tester Non Contact | 1000V video.

    Description

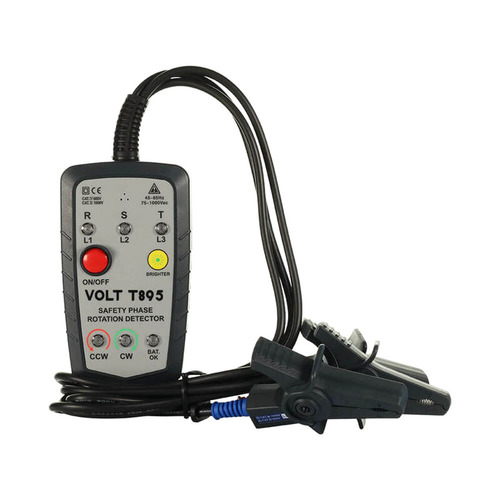

    Volt Safety MET-V-T895 | Phase Rotation Tester Non Contact | 1000V

    The Volt Safety MET-V-T895 Phase Rotation Tester is an essential tool for electricians, offering non-contact detection of AC 3-phase sequence with safety and convenience. This phase detector features LED display lights and a beeping buzzer to indicate phase sequence and open phase detection. Designed for use with 3-phase AC voltages ranging from 75 to 1000V and frequencies from 45 to 65 Hz, this tester ensures accurate and reliable measurements.

    Equipped with non-contact sensor clips, the MET-V-T895 promotes safety during measurements by clipping over the jacket of the 3-phase lines. The bright button feature enhances visibility in dimly lit areas or under sunlight, and the back cover magnet allows for easy mounting on AC distribution panels. The auto-off function conserves battery life by turning off the device after 5 minutes of inactivity. With protection class IP40 and compliance with EN 61010-1 CAT III 1000V / CAT IV 600V safety standards, this phase rotation tester is built for durability and reliability.

    Volt Safety MET-V-T895 Features:

    • Non-Contact Detection: Safely measures AC 3-phase sequence with sensor clips.
    • LED Display and Buzzer: Indicates phase sequence and open phase detection.
    • Dual Functionality: Detects both open phase and phase sequence.
    • Bright Button Feature: Enhances visibility in dimly lit areas or under sunlight.
    • Auto-Off Function: Conserves battery by turning it off after 5 minutes of inactivity.
    • Back Cover Magnet: Mounts easily onto AC distribution panels for hands-free operation.
    • Wide Voltage Range: Detects 3-phase AC voltages from 75 to 1000V.
    • Frequency Range: Operates within 45 to 65 Hz.
    • Safety Standards: Complies with EN 61010-1 CAT III 1000V / CAT IV 600V standards.

    Volt Safety MET-V-T895 FAQ:

    Q: What voltage range can this tester detect?
    A: It can detect 3-phase AC voltages ranging from 75 to 1000V.

    Q: How does the non-contact detection work?
    A: The tester uses non-contact sensor clips that clip over the jacket of the 3-phase lines, promoting safety during measurement.

    Q: What safety standards does this tester comply with?
    A: It complies with EN 61010-1 CAT III 1000V and CAT IV 600V standards.

    (MET-V-T895)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Features
    Specification Details
    Measurement Principle Static induction
    Input Voltage 75~1000Vac
    Frequency 45~65Hz
    Auto-Off 5 min. after power on without detection
    Low Battery Warning Power LED flashes at 7V ± 0.2 or less
    Jaw Opening 33mm diameter max
    Current Consumption 20ma
    Operating Temperature and Humidity 0°C~40°C Max. 80% R.H
    Storage Temperature and Humidity -10°C~50°C Max. 80% R.H
    Power Source 9V(6LF22) x 1 Alkaline battery
    Dimensions 128(L) x 72(W) x 44(H)mm
    Cable Length Approx. 800mm
    Weight Approx. 380g (Battery included)
    Accessories Instruction manual, Soft pouch, Battery
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Volt Safety
    SKU MET-V-T895
    Package Weight 0.540kg
    Package Width 0.170m
    Package Height 0.195m
    Package Length 0.080m
    TYPE VALUE
    Type Phase Rotation Meter
    Brand Volt Safety
    Standards EN 61010-1, EN 61326-1
    CAT III 1000V
    CAT IV 600V
