Learn more by watching our Major Tech MT474 | 690V AC/DC Voltage Tester video.
Additional related video.
Description:

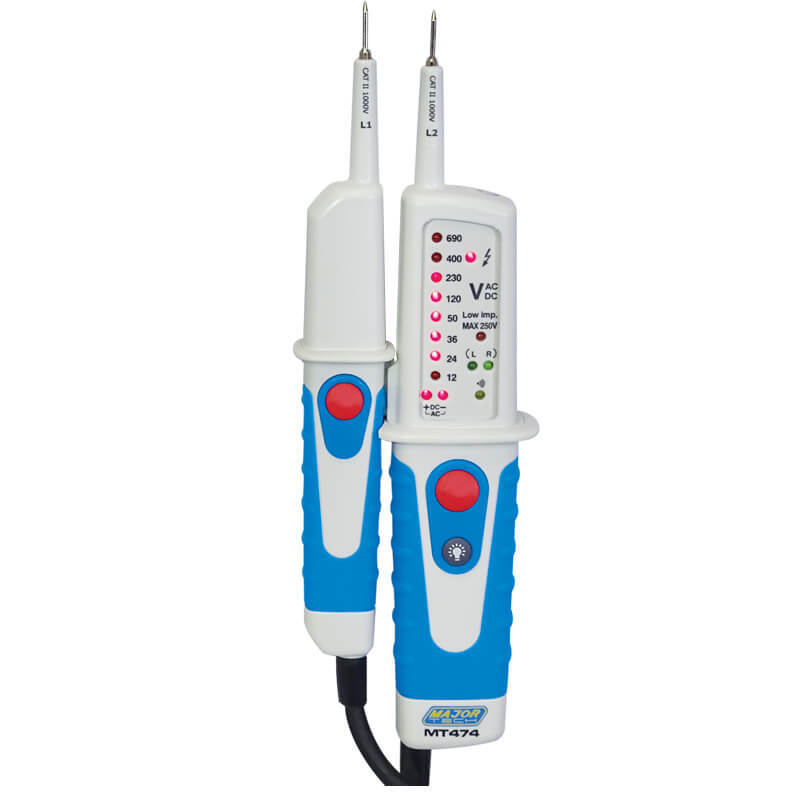

The MT474 is IP64 and is a useful tester designed to meet electrician’s requirements for a multitude of applications. The tester displays the voltage on red LED’s which increment as the voltage increases. There is an LED indication for polarity when DCV is measured. No switching of the meter on as the tester automatically turns on when voltage is applied to the two test probes. The MT474 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems, with the direction of field shown as L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 200kΩ. The MT474 meets the CAT IV 600V and CAT III 1000V safety standards.
Features:
(MT474)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Accuracy |
DC Voltage | 12 – 690V | ±(30%) |
AC Voltage | 12 – 690V | ±(30%) |
Rotary Field | 100 – 690V AC | |
RCD Test | 10mA/30mA | |
Continuity | Yes | |
AC Bandwidth | 50Hz – 60Hz | |
Digital Display | LED Indication | |
Polarity Indication | Yes | |
Overrange Indication | Yes | |
Low Input Impedance | <200kΩ | |
Flashlight | Yes | |
Enclosure | Double injection IP64 | |
Batteries | 2 x AAA | |
Weight | 255g | |
Dimensions | 240 x 78 x 40mm | |
Safety Specs | IEC61010-1 CAT IV 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MT474 |
Barcode # | 6008229006326 |
Package Weight | 0.341kg |
Package Width | 0.060m |
Package Height | 0.290m |
Package Length | 0.090m |
TYPE | VALUE |
---|---|
Type | Voltage Tester |
Brand | Major Tech |
Height (mm) | 40 |
Width (mm) | 78 |
Length (mm) | 240 |
