        Learn more by watching our Major Tech MT565 | Bluetooth Insulation Tester and Multimeter video.

        Additional related video.

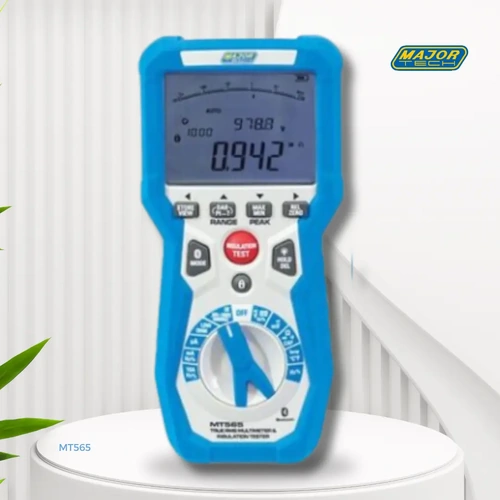

        Major Tech MT565 | Bluetooth Insulation Tester and Multimeter

        Description:

        The MT565 is a versatile True RMS multimeter with an Insulation Continuity tester. It measures AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, and temperature. It accurately handles VFD signals with a Low Pass Filter. The insulation tester offers 50V to 1000V ranges, up to 5000MΩ resistance, DAR, Auto PI, and auto discharge. Low Ohm function provides 1mA resolution. It's safe with CAT IV 600V rating, has Bluetooth, and internal memory. The app works on Android and iOS, making it ideal for electricians' troubleshooting and maintenance needs.

        Features:

        • CAT IV 600V and CAT III 1000V
        • IP65 double moulded rugged waterproof housing
        • 5 insulation test ranges 50V, 100V, 250V, 500V, 1000V
        • Insulation Resistance up to 5GΩ
        • 50 000 count with analogue bargraph backlit LCD display
        • Measures AC and DC voltage up to 1000V
        • Measures AC and DC current up to 10A
        • Temperature measurement from -20⁰C to 1000⁰C
        • Capacitance to 10mF
        • Frequency to 10MHz
        • Dielectric Absorption Ratio (DAR)
        • Polarization Index (PI)
        • Low Pass Filter for measurement of variable frequency drive (VFD)
        • Auto discharge of voltage test signal
        • Peak Hold function for Voltage and Current measurements
        • Download stored data to iOS or Android App via Bluetooth
        • Continuity buzzer
        • Min/Max and Data Hold function
        • Auto Power Off

        (MT565)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.

        How to Lodge a Warranty Claim

        To initiate a warranty claim:

        1. Return to Sparky Direct
          Ship the meter back to Sparky Direct along with:

          • A copy of your proof of purchase
          • A brief description of the issue
          • Your contact details

          Please ensure the unit is securely packaged to prevent damage in transit.

        2. Forwarded for Assessment
          Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.

        Assessment Process

        Major Tech’s service lab will assess the returned unit to determine:

        • Whether the fault is due to a manufacturer’s defect (covered under warranty), or
        • If the issue is the result of user error or no fault is found.

        Outcomes

        • If approved under warranty: The product will be repaired or replaced at no cost to you.
        • If not covered under warranty: The lab may offer repair services, which will be quoted and billed directly to you by the service provider.

        Important Notes

        As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.

        Please allow up to 7-14 working days for the return of your product.

        Specifications

        Function Range Resolution Accuracy
        DC voltage 500mV – 1000V 0.01mV ±(0.1% +4)
        AC voltage 500mV – 1000V 0.01mV ±(1.0% +5)
        DC current 500.μA – 10A 0.01μA ±(0.1% +3)
        AC current 500μA – 10A 0.01μA ±(1.5% +3)
        Duty cycle 5 to 95% 0.0001 ±(1% +2)
        Resistance 500Ω – 50MΩ 0.01Ω ±(1% +4)
        Frequency 50Hz – 50MHz 0.001Hz ±(0.3% +2)
        Capacitance 500nF – 5.000mF 0.01nF ±(3.5% +9)
        Temperature -50 to 1200°C 0.1°C  ±(1.0% + 2.5°C)
        Insulation 50V 0.050 -2000MΩ 0.001MΩ ±(5% +5)
        Insulation 100V 0.100 – 5000MΩ 0.001MΩ ±(5% +5)
        Short circuit current 1mA
        Overrange indication Yes
        True RMS Measurements AC
        AC Bandwidth 50Hz to 1000Hz
        Digital Display 50 000
        Continuity Yes
        Polarization index PI = IR10min/IR1min
        Diode test Yes
        Bargraph Yes
        Bluetooth Yes
        Records events and Trends Yes
        Data logging Yes
        Input impedance >10MΩ VDC & >9MΩ VAC
        Low Pass filter Yes
        Min Max Yes
        Peak hold >1ms
        Data Hold Yes
        Back Light Yes
        Enclosure Double moulded IP65
        Low battery indication Yes
        Batteries 6 x AA
        Weight 634g
        Dimensions 210 x 97 x 68 mm
        Safety Specs IEC61010-1 CAT IV 600V

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Major Tech
        SKU MT565
        Barcode # 6008229018206
        Package Weight 2.395kg
        Package Width 0.105m
        Package Height 0.385m
        Package Length 0.285m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Insulation Tester
        Brand Major Tech
        Height (mm) 68
        Width (mm) 97
        Length (mm) 210
