Learn more by watching our Fluke 177 Hand held Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc video.

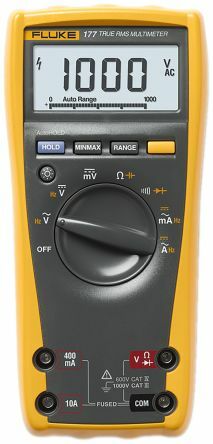

The Fluke 177 is a hand held True-RMS digital multimeter rated to 1000V ac and dc and 10A ac and dc, with a 6000-count display and analog bar graph. The 177 measures voltage, current, resistance, continuity, capacitance, frequency and diode drop, at 0.09 % basic dc accuracy. It is certified to EN 61010-1 for CAT IV 600V and CAT III 1000V environments and carries a limited lifetime warranty from Fluke.
Site power is full of harmonics, variable speed drives and switch-mode supplies, and an averaging meter reads those distorted waveforms low. That error sends a sparky chasing a fault that is not there. It can also hide a circuit drawing more than the reading suggests. True-RMS measurement reads the actual ac value on non-sinusoidal signals, and 0.09 % basic dc accuracy resolves the small differences that matter on control and signal wiring. The 6000-count display with analog bar graph shows a drifting or unstable reading as movement, which numbers alone hide.
Sparkies buy the 177 because one meter covers the day: switchboard fault finding, motor circuits, appliance elements and control panels all sit inside its measurement range. The CAT IV 600V rating means it stays in hand at the point of supply, not just downstream of the main switch. Closed-case calibration through the front panel keeps it in service without a strip-down. The limited lifetime warranty takes the meter out of the annual replacement budget. It arrives in original packaging, ready to work.
The Fluke 177 is not an insulation resistance tester or an earth loop impedance tester, so it does not replace the instruments required for verification testing under AS/NZS 3017. It is not rated for CAT IV 1000V installations, and it has no temperature measurement function. Operating range is -10 degrees C to +50 degrees C, and the meter is not weatherproof or rated for condensing humidity.
Verified Sparky Direct customer reviews: Fluke 177 Hand held Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc (177)
"product delivered quickly and in original packaging all at a great price" — Spok
(FLUKE177)
The Fluke 177 is listed to EN 61010-1 for CAT IV 600V and CAT III 1000V, with UL, CSA and TUV listing and CSA and CE agency approval. That rating covers testing at the point of supply and through distribution boards.
True-RMS means the meter calculates the real effective value of an ac waveform instead of assuming a clean sine wave. On circuits with harmonics, variable speed drives or switch-mode power supplies, an averaging meter reads low. A True-RMS meter reports the actual value.
The Fluke 177 measures ac and dc current on ranges of 60.00 mA, 400.0 mA, 6.000 A and 10.00 A, through a fused input. AC current is True-RMS responding and specified from 45 Hz to 1 kHz.
The Fluke 177 has no built-in thermometer and no temperature range, so temperature readings need a separate instrument. It does measure voltage, current, resistance, continuity, capacitance, frequency and diode drop.
The box contains the meter with its integrated protective holster, a set of test leads, an installed 9V battery and a user manual. Alkaline battery life is around 200 hours typical with the backlight off.
Fluke covers the 177 with a limited lifetime warranty, serviced by Fluke under its published terms. Warranty starts from the invoice date. For the first year, returns are handled through Sparky Direct. Calibration is a separate service and is not a warranty item.
The Fluke 177 is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
After 1st year the warranty covered by Fluke is "limited lifetime warranty", serviced by Fluke - see their terms and conditions on the Fluke website
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Fluke |
| SKU | FLUKE177 |
| Barcode # | 095969095198 |
| Package Weight | 0.740kg |
| TYPE | VALUE |
|---|---|
| Type | True-RMS Digital Multimeter |
| Rated Current (A) | 10 |
| Height (mm) | 43 |
| Width (mm) | 90 |
| Length (mm) | 185 |
| Power Source | 1 x 9V battery |
| Voltage (V) | 1000 |
Electrical and HVAC products sold by Sparky Direct are intended for installation by licensed and appropriately qualified professionals in accordance with applicable Australian Standards and regulatory requirements. Customers are responsible for ensuring that any product purchased, including any related or associated components, is compatible and suitable for their intended installation and application.
Sparky Direct does not provide installation advice and does not assess product suitability for individual circumstances unless expressly confirmed in writing. Customers must confirm correct product selection, compatibility, compliance, and suitability with a licensed or appropriately qualified professional prior to purchase.
Tools sold by Sparky Direct must be used safely and in accordance with the manufacturer’s instructions. Customers are responsible for ensuring they have the necessary knowledge and competence to operate any tool purchased. If you are unsure how to safely or correctly use a tool, do not use it and seek guidance from the manufacturer or a suitably qualified professional.
Nothing in this clause limits or excludes any rights or guarantees available under the Australian Consumer Law.
