Learn more by watching our Major Tech MTC50 | 2-In-1 LAN Tester and Multimeter video.
Additional related video.
Description:

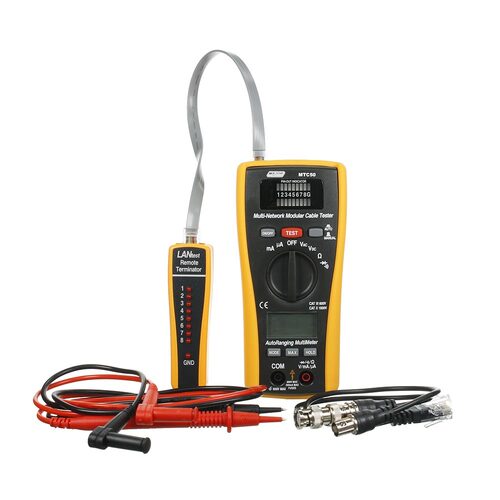

The MTC50 is a 2-in-1 LAN tester as well as an auto ranging multimeter. This meter is a newly designed and very practical tester that can easily read the correct pin configuration of 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end. With the remote kit test cables can be installed over long distances either on wall plates or patch panels. It is easy to verify the cable continuity, open, short and cross-connect. The auto range digital multimeter allows the user to measure AC and DC voltage, AC and DC current, Resistance, Continuity and Diode test.
Features:
(MTC50)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
All Major Tech Meters sold through Sparky Direct are covered by the manufacturer’s warranty. If you believe your meter is faulty or defective, you may request an assessment under this warranty policy.
To initiate a warranty claim:
Return to Sparky Direct
Ship the meter back to Sparky Direct along with:
Please ensure the unit is securely packaged to prevent damage in transit.
Forwarded for Assessment
Upon receiving your meter, we will forward it to Major Tech’s authorised service centre for inspection, testing, and calibration.
Major Tech’s service lab will assess the returned unit to determine:
As Major Tech’s service labs are independent providers, Sparky Direct cannot govern or guarantee turnaround times or any costs incurred for repairs outside of warranty coverage.
Function | Range | Resolution | Accuracy |
DC Voltage | 200mV – 600V | 0.1mV | ±(1.0% + 3 Digits) |
AC Voltage | 200mV – 600V | 1mV | ±(1.0% + 5 Digits) |
DC Current | 200.0μ A – 200.0mA | 0.1μA | ±(1.5% + 3 Digits) |
AC Current | 200.0μ A – 200.0mA | 0.1μA | ±(1.8% + 8 Digits) |
Resistance | 200.0Ω – 20MΩ | 0.1Ω | ±(1.2% + 3 Digits) |
Overrange Indication | Yes | >7.5MΩ VDC & >7.5MΩ VAC | |
AC Bandwidth | 50Hz-60Hz | ||
Continuity | Yes | ||
Diode Test | Yes | ||
Digital Display | 2000 | ||
Lan Tester | RJ45 and RJ11 + BNC | ||
Min Max | Yes | ||
Back Light | Yes | ||
Enclosure | Rubber Holster | ||
Batteries | 2 x AAA and 9V | ||
Weight | 308g | ||
Dimensions | 162 x 74 x 43mm | ||
Safety Specs | IEC61010-1 CAT III 600V |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Major Tech |
SKU | MTC50 |
Barcode # | 6008229023057 |
Package Weight | 0.601kg |
Package Width | 0.080m |
Package Height | 0.230m |
Package Length | 0.130m |
TYPE | VALUE |
---|---|
Type | Tester & Multimeter |
Brand | Major Tech |
Dimensions | 162 x 74 x 43mm |
Batteries | 2 x AAA & 9V |
