        NLS 30288 | Heavy Duty 7 Hole 165Amp 500v Active Link
        $12.61 $11.46 ex. GST
        Video

        Learn more by watching our NLS 30288 | Heavy Duty 7 Hole 165Amp 500v Active Link video.

        Description

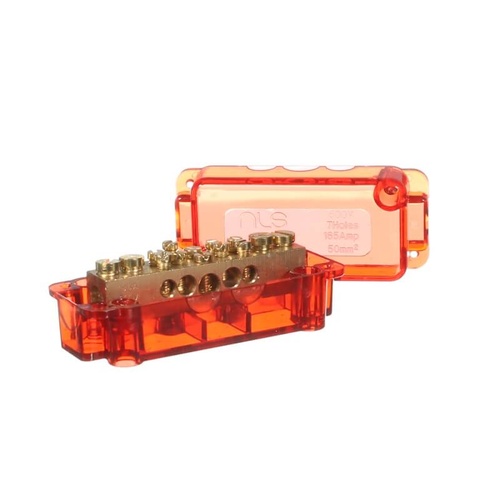

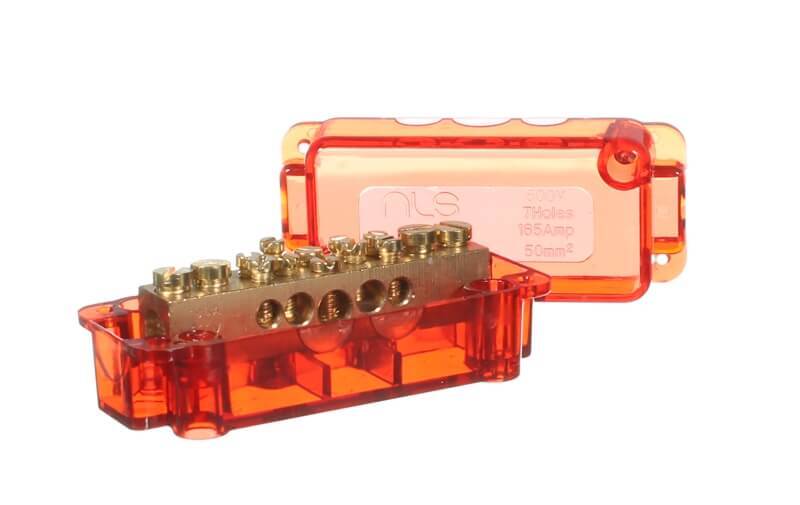

        NLS 30288 | Heavy Duty 7 Hole 165Amp 500v Active Link

        The 7 hole active link is a termination bar that allows multiple cables to be terminated into a meter board or enclosure. Normally the Active link is located in a switchboard and corresponding cables are conveniently terminated by an electrician. Active links save space and are very cost effective. Active links are numbered so that the corresponding cables can be easily identified.

        Features

        • 500V
        • 165A
        • 7 Hole Link
          • 2 Terminals: 2.5mm – Accommodates up to 16mm2 cables
          • 2 Terminals: 7.0mm – Accommodates up to 25mm2 cables
          • 1 Terminal: 8.0mm – Accommodates up to 35mm2 cables
          • 2 Terminals: 10.0mm – Accommodates up to 50mm2 cables
        • Length 100mm
        • Width 40mm
        • Depth 40mm

        (30288)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30288
        Barcode # 9336700005344
        Shipping Weight 0.2070kg
        Shipping Width 0.041m
        Shipping Height 0.040m
        Shipping Length 0.100m
        Shipping Cubic 0.000164000m3
        TYPE VALUE
        Type Active / Neutral Links
        Brand National Light Sources
        Colour Red
        Width (mm) 40
        Depth (mm) 40
        Length (mm) 100
        Box increments (This item is sold individually) 5
        Number of Terminals 7
