        NLS 30290 | Heavy Duty 13 Hole 165Amp 500v Active Link
        $15.95 $14.50 ex. GST
        Video

        Learn more by watching our NLS 30290 | Heavy Duty 13 Hole 165Amp 500v Active Link video.

        Description

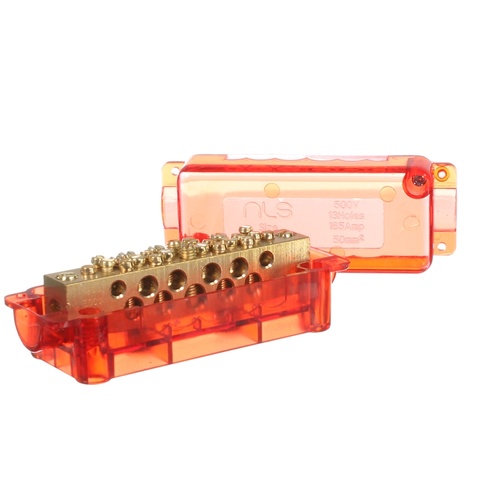

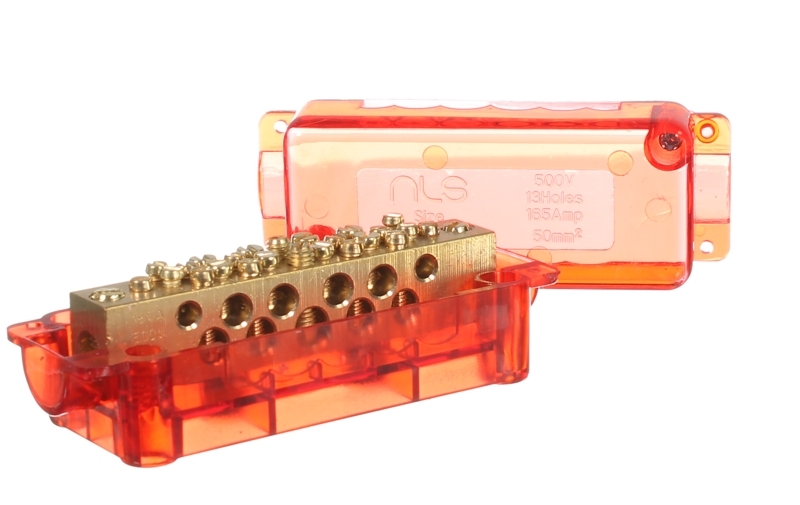

        NLS 30290 | Heavy Duty 13 Hole 165Amp 500v Active Link

        The 13 hole active link is a termination bar that allows multiple cables to be terminated into a meter board or enclosure. Normally the Active link is located in a switchboard and corresponding cables are conveniently terminated by an electrician. Active links save space and are very cost effective. Active links are numbered so that the corresponding cables can be easily identified.

        Features

        • 500V
        • 165A
        • 13 Hole Link
          • 2 Terminals: 4.8mm – Accommodates up to 10mm2 cables
          • 8 Terminals: 6.6mm – Accommodates up to 16mm2 cables
          • 1 Terminal: 8.0mm – Accommodates up to 35mm2 cables
          • 2 Terminals: 10.0mm – Accommodates up to 50mm2 cable
        • Length 118mm
        • Width 43mm
        • Depth 45mm

        (30290)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30290
        Barcode # 9336700005368
        Shipping Weight 0.2610kg
        Shipping Width 0.043m
        Shipping Height 0.042m
        Shipping Length 0.115m
        Shipping Cubic 0.000208000m3
        TYPE VALUE
        Type Active / Neutral Links
        Brand National Light Sources
        Colour Red
        Width (mm) 43
        Depth (mm) 45
        Length (mm) 118
        Box increments (This item is sold individually) 5
        Number of Terminals 13
