        Description

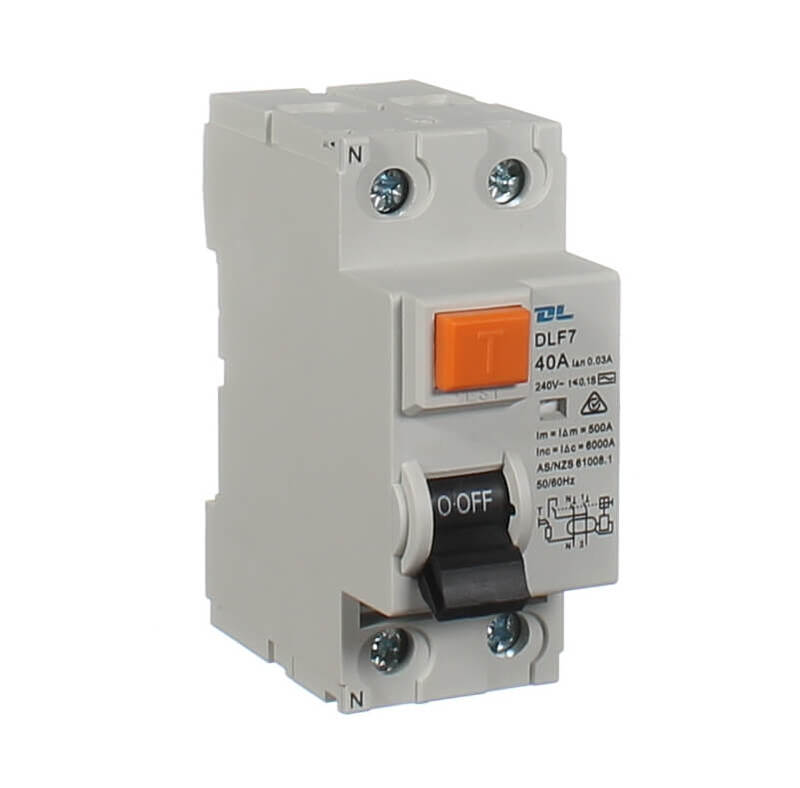

        NLS 30394 | 2 Pole 40amp 6kA RCD 30mA

        NLS 30394 is a 2 pole Safety Switch rated at 40 amps.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The NLS 2 pole RCD also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

        Features:

        • Rated Current: 40A
        • 2 Pole Safety Switch
        • Rated Breaking Capacity: 6kA
        • Fault Current Trip Current: 30mA
        • Number of poles: 2P
        • Type: C Breaker
        • Mounting: Din Rail
        • 240V

        (30394)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30394
        Package Weight 0.207kg
        TYPE VALUE
        Type Circuit Protection
        Brand National Light Sources
        Range DL
        Rated Current (A) 40
        Height (mm) 80
        Width (mm) 36
        Depth (mm) 78
        Mounting Din Rail
        Number of Poles 2
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Box increments (This item is sold individually) 6
        Neutral Position Right
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type AC
        Curve C
