Learn more by watching our NLS 30796 | 10A 6kA Single Pole RCBO Type A video.

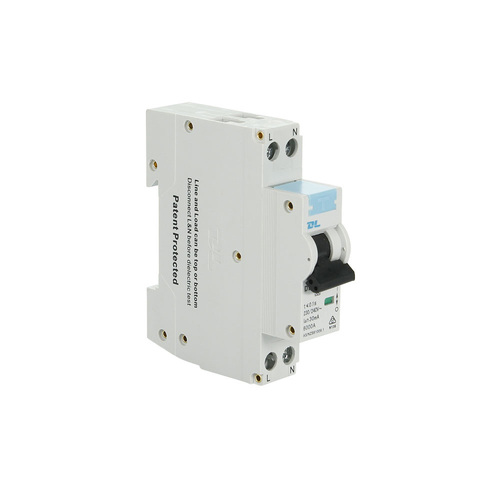

The NLS 30796 10A 6kA Single Pole RCBO Type A provides overload, short-circuit and earth-leakage protection in one compact DIN-rail device. With 30mA sensitivity, 1P+N configuration, and Type A compliance, it meets new legislative requirements, including Victorian regulations.
This non-polarised RCBO allows flexible wiring orientation and features a 6kA breaking capacity suited to residential and light-commercial boards. Built with 4000-cycle endurance, approved to AS/NZS 61009.1, and backed by a 3-year replacement warranty, it is suitable for both new installations and switchboard upgrades.
IMPORTANT: This product is Type A and compliant with the new legislation.
(30796)
A 10A RCBO is commonly used for lighting circuits and other low-demand final subcircuits requiring both overload and earth-leakage protection.
Yes. It is a Type A RCBO with 30mA earth-leakage sensitivity and fully meets the updated standards, including the Victorian “NEW A TYPE” requirements.
It does. Because the device is non-polarised, the line and load can be connected in either orientation, simplifying wiring layout in tight switchboards.
It has a 6kA breaking capacity, suitable for typical residential and light-commercial fault conditions.
Yes. It is suitable for upgrades where older AC-type devices must be replaced to maintain compliance with current regulations.
Yes, Sparky Direct supplies the NLS 30796, with quick delivery options available for both trade and domestic customers.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 3 Year
Commercial Use: 3 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | NATIONAL LIGHT SOURCES |
| SKU | 30796 |
| Model # | 30796NLS |
| Barcode # | 9336700016241 |
| Package Weight | 0.111kg |
| Package Width | 0.075m |
| Package Height | 0.020m |
| Package Length | 0.085m |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | National Light Sources |
| Rated Current (A) | 10 |
| Height (mm) | 81 |
| Width (mm) | 18 |
| Depth (mm) | 75 |
| Standards | AS/NZS 61009:1 |
| Mounting | Din Rail |
| Voltage (V) | 240V |
| Number of Poles | 1P+N |
| IP Rating | IP20 ( IP40 Enclosed ) |
| Breaking Capacity | 6kA |
| Box increments (This item is sold individually) | 12 |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | Type A |
| Curve | C |
