        Pulset BP12-3U | 12 Pole 3 Phase Fork Style Insulated Busbar 63A 10mm²
        $12.04 $10.95 ex. GST
        Video

        Learn more by watching our Pulset BP12-3U | 12 Pole 3 Phase Fork Style Insulated Busbar 63A 10mm² video.

        Description

        Pulset BP12-3U | 12 Pole 3 Phase Fork Style Insulated Busbar 63A 10mm²

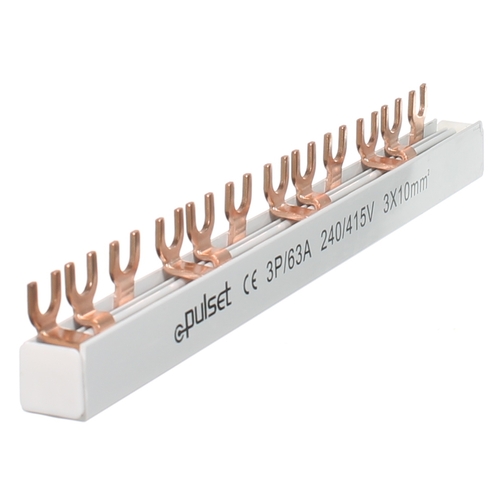

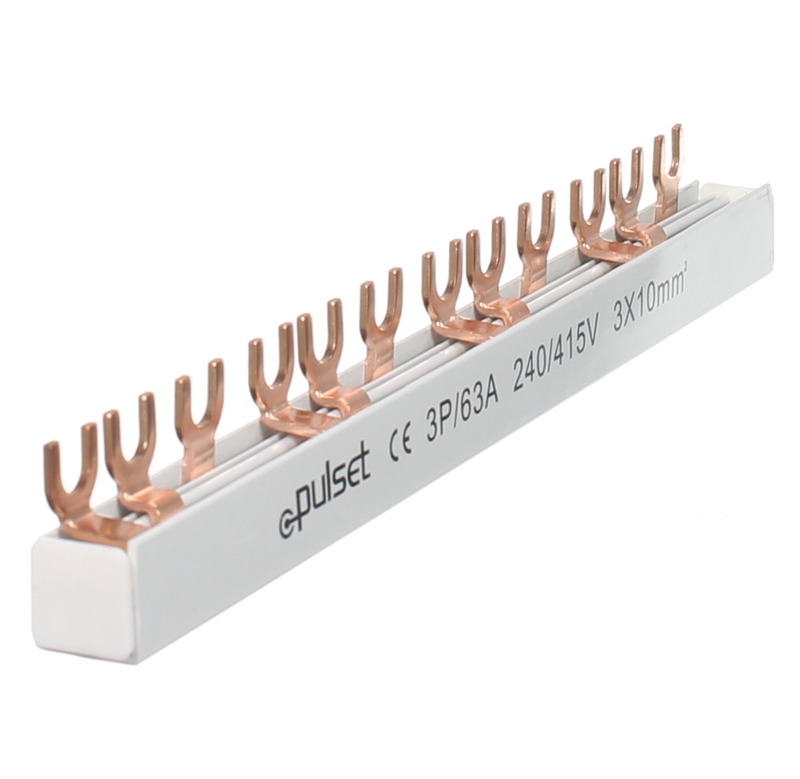

        The Pulset BP12-3U is a 12 pole 3 phase fork style copper busbar with plastic insulation on the body. It is designed for 3 phase connection. The fork style busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed faster than looping building wire.
        No looping required for active conductors.
        The teeth on the busbar has a 12mm pitch. Quality construction and tested to perform.

        Features:

        • Number of poles: 12P
        • 3 Phase
        • 63A
        • Max operating voltage: 240V
        • Length: 222 mm
        • Connection cross-sect. rigid cable: 10mm²
        • Connector type: busbar fork
        • Type of connection: with screw / quick connect

        (BP12-3U)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Pulset
        SKU BP12-3U
        Barcode # 7857380993100
        Shipping Weight 0.1200kg
        Shipping Width 0.220m
        Shipping Height 0.030m
        Shipping Length 0.015m
        Shipping Cubic 0.000099000m3
        TYPE VALUE
        Type Insulated Busbar
        Brand Pulset
        Rated Current (A) 63
        Width (mm) 222
        Number of Poles 3P
        Total Number of modules 12
