        Purlmate 3650 | Mounting Block
        $15.18 $13.80 ex. GST
        Video

        Learn more by watching our Purlmate 3650 | Mounting Block video.

        Description

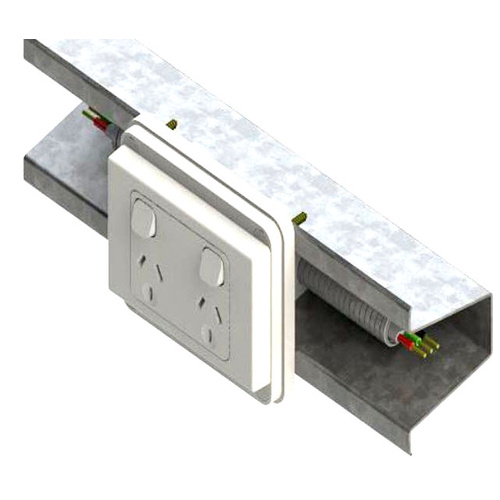

        Purlmate 3650 | Mounting Block

        The Purlmate 3650 suits standard power points, socket outlets and electrical switches

        • Simplified professional installation of GPOs switches and data sockets.
        • Install more units in less time with a neater finish = more profit per job
        • Slotted holes for accurate installation with fitted caps for a neater finish
        • 25mm entries each end with 20mm knockout available on the back
        • Designed to fit virtually al 64mm Top Hat purlins
        • Fully enclosed for electrical safety and tested by NATA Accredited Laboratory
        • Able to be gang joined
        • Install in any location along wall of ceiling
        • Install multiple units above work benches
        • Designed and manufactured in Australia

        Features:

        • Width 123mm
        • Depth 65mm
        • Height 100mm
        • 2 x 25mm entries



        (PURLMATE3650)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Ampere
        SKU PURLMATE3650
        Barcode # 9318861025003
        Shipping Weight 0.0870kg
        Shipping Width 0.100m
        Shipping Height 0.065m
        Shipping Length 0.120m
        Shipping Cubic 0.000780000m3
        TYPE VALUE
        Type Electrical Accessories
        Brand Purlmate
        Colour White
        Height (mm) 100
        Width (mm) 123
        Depth (mm) 65
        Material PVC
        Box increments (This item is sold individually) 6
        Reviews
        5.0

        4 Reviews
        5 STARS
        4
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Craig Welch

        Perfect on 6 October 2020

        These work great. Easy to use

        Mark

        Purl mate on 25 February 2019

        Item arrived in perfect condition, I received a follow up phone call once delivered , great service.

        John

        Great Special Purpose Mounting Block on 17 April 2018

        If you are installing standard size plates (power points, light switches, etc.) in a shed with Top Hat rails, these are magic. One note of caution though. Be careful driving those screws that attach the switch plate. They have to tap a fairly long thread into plastic and I have had problem removing these screws later. I think it was caused by using a powered screwdriver with excessive speed, possibly embedding the screw at high temperature. Removal is by destruction. :-(

        Colin Barber

        Great service on 3 January 2018

        Very efficient with my order . Great product
