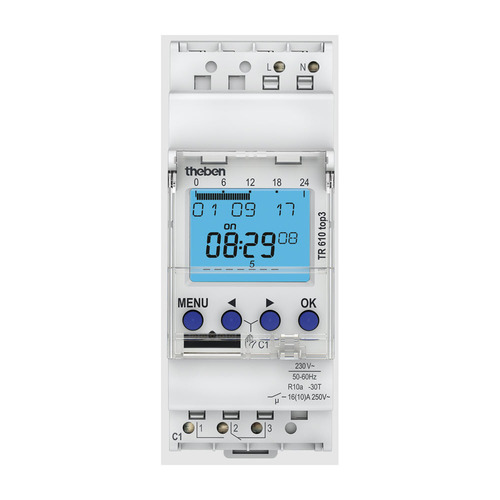

        THEBEN TR610TOP3 | Digital time switch 1 channel | 24h 7day | Program by App | TOP3
        $131.94 $119.95 ex. GST
        Video
        Learn more on how to program via a smart phone here https://youtu.be/BlScXDZZkRU
        Description

        THEBEN TR610TOP3 | Digital time switch 1 channel | 24h 7day | Program by App | TOP3

        • German Quality
        • TOP3
        • Digital time switch with weekly program
        • 1 channel
        • Programming by app is possible

        If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.

        Features

        • Digital time switch with weekly program
        • 1 channel
        • Programming by app possible
        • Safe transfer via optional Bluetooth Low Energy OBELISK top3
        • Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
        • 100 % compatible with top2
        • DuoFix spring terminals
        • For 2 conductors each
        • Wire or strand (with or without wire end sleeve)
        • Wire diameter: 0.5 - 2.5 mm²
        • Button for releasing plug-in connection
        • Text-oriented user guidance in display
        • Preset date and time
        • fully operable without mains connection
        • 56 memory locations
        • Interface for OBELISK top2 memory card (PC programming)
        • 2. insertable switching program
        • Copying programs
        • Storing programs
        • 10 year power reserve (lithium battery)
        • Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
        • ON-OFF switching times
        • Switching preselection
        • Permanent switching ON/OFF
        • Integrated operating hour counter
        • Reset option
        • Service function for monitoring maintenance intervals
        • Holiday program
        • Display back light (can be turned off)
        • Permanent switching ON/OFF
        • PIN coding
        • Automatic summer/winter time changeover
        • can be deactivated
        • Date rule options are already stored for Europe, the USA and other countries
        • own date rule options or changeover around set dates are available
        • Made in Germany

        You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.

        (TR610TOP3)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Operating voltage 230 V AC
        Frequency 50 – 60 Hz
        Width 2 modules
        Installation type DIN rail
        Type of contact Changeover contact
        Switching output Phase-independent
        Opening width < 3 mm
        Program Weekly program
        Program functions ON-OFF
        Number of channels 1
        Number of memory locations 56
        Power reserve 10 years
        Switching capacity at 250 V AC, cos φ = 1 16 A
        Switching capacity at 250 V AC, cos φ = 0,6 10 A
        Incandescent/halogen lamp load 2600 W
        Energy saving lamps 1100 W
        LED lamp < 2 W 50 W
        LED lamp 2-8 W 600 W
        LED lamp > 8 W 600 W
        Fluorescent lamp load (conventional) not corrected 2600 VA
        Fluorescent lamp load (conventional) series-corrected 2600 VA
        Fluorescent lamp load (conventional) parallel-corrected 1300 VA 130 µF
        Switching capacity min. ca. 10 mA
        Shortest switching times 1 min
        Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
        Time basis Quartz
        Stand-by consumption ~0.4 W
        Type of connection DuoFix spring terminals
        Display LCD
        Keyboards 4 touch buttons
        Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
        Type of protection IP 20
        Protection class II according to EN 60 730-1
        Voltage 230 V AC
        Ambient temperature -30°C ... 60°C
        Predecessor 6100100, TR 610 top2



        Watch Video on how to program here https://youtu.be/BlScXDZZkRU

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU TR610TOP3
        Barcode # 4003468610299
        Shipping Weight 0.1350kg
        Shipping Width 0.103m
        Shipping Height 0.046m
        Shipping Length 0.076m
        Shipping Cubic 0.000360000m3
        TYPE VALUE
        Type Timer
        Brand Theben
        Rated Current (A) 16(10)
        Height (mm) 69.2
        Width (mm) 35.8
        Length (mm) 90.1
        Protection IP20
        Mounting Din Rail
        program Weekly program
        Number of Modules 2
        Programming Type Digital & Memory Card
        Battery Backup 10 Years
        Voltage (V) 240
