        Theben TR608top2S | Digital time switch 1 channel | 7day | plug-in terminals | 1 module
        $141.41 $128.55 ex. GST

        Learn more by watching our Theben TR608top2S | Digital time switch 1 channel | 7day | plug-in terminals | 1 module video.

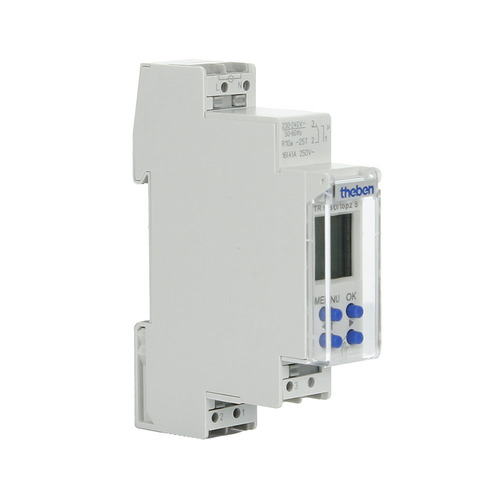

        Theben TR608top2S | Digital time switch 1 channel | 7 days | plug-in terminals |1 module

        Digital 1 channel time switch with weekly program and 56 memory locations

        If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.


        • Digital time switch with weekly program
        • 1 channel
        • 56 memory locations
        • DuoFix spring terminals
        • For 2 conductors each
        • Wire or strand (with or without wire end sleeve)
        • Wire diameter: 0.5 - 2.5 mm²
        • Button for releasing the plug-in connection
        • Text-oriented user guidance in display
        • Preset date and time
        • fully operable without mains connection
        • Interface for OBELISK top2 memory card (PC programming)
        • 2. insertable switching program
        • Copying programs
        • Storing programs
        • 10-year power reserve (lithium battery)
        • ON-OFF switching times
        • Switching preselection
        • Permanent switching ON/OFF
        • Integrated operating hour counter
        • Reset option
        • Service function for monitoring maintenance intervals
        • Holiday program
        • Permanent switching ON/OFF
        • PIN coding
        • Automatic summer/winter time changeover
        • can be deactivated
        • Date rule options are already stored for Europe, the USA and other countries
        • own date rule options or changeover around set dates are available
        • Made in Germany

        You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Operating voltage 230 – 240 V AC
        Frequency 50 – 60 Hz
        Width 1 modules
        Installation type DIN rail
        Type of contact Changeover contact
        Switching output Phase-independent
        Opening width < 3 mm (µ)
        Program Weekly program
        Program functions EIN-AUS
        Number of channels 1
        Number of memory locations 56
        Power reserve 10 years
        Switching capacity at 250 V AC, cos φ = 1 16 A
        Switching capacity at 250 V AC, cos φ = 0,6 4 A
        Incandescent/halogen lamp load 1000 W
        Energy saving lamps 30 W
        LED lamp < 2 W 6 W
        LED lamp 2-8 W 60 W
        LED lamp > 8 W 60 W
        Fluorescent lamp load (conventional) not corrected 1000 W
        Fluorescent lamp load (conventional) series-corrected 1000 W
        Fluorescent lamp load (conventional) parallel-corrected 80 W 12 µF
        Switching capacity min. ~10 mA
        Shortest switching times 1 min
        Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
        Time basis Quartz
        Stand-by consumption ~0.4 W
        Memory card supplied
        Test approval VDE
        Type of connection DuoFix spring terminals
        Display LCD-Anzeige mit Textzeile
        Keyboards 4 touch buttons, 1 reset button
        Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
        Type of protection IP 20
        Protection class II according to EN 60 730-1
        Voltage 230 V AC
        Ambient temperature -25°C ... 55°C

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU TR608top2S
        Barcode # 4003468600115
        Shipping Weight 0.0820kg
        Shipping Width 0.100m
        Shipping Height 0.020m
        Shipping Length 0.070m
        Shipping Cubic 0.000140000m3
        TYPE VALUE
        Type Timer
        Brand Theben
        Rated Current (A) 16 (4)
        Height (mm) 78
        Width (mm) 18
        Length (mm) 102
        Protection IP20
        Mounting Din Rail
        Program Time 24h/7d
        Number of Modules 1
        Programming Type Digital & Memory Card
        Battery Backup 10 Years
        Voltage (V) 240
