        HAGER VS212PT
        $99.50 $90.45 ex. GST

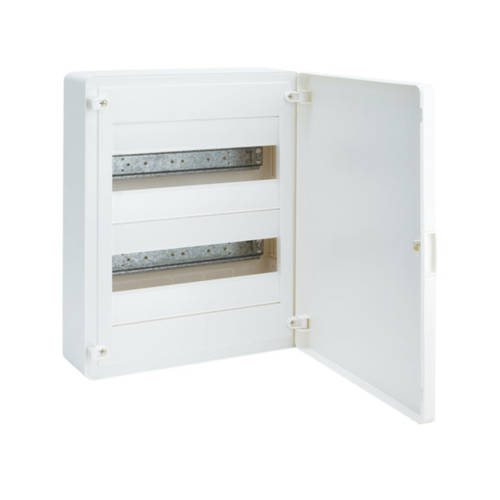

        HAGER VS212PT | GOLF 24 Pole Surface Mount Distribution Board IP40

        HAGER VS212PT | GOLF 24 Pole Surface Mount Distribution Board IP40 - an industry-leading, state-of-the-art distribution board designed for maximum versatility, safety and performance.

        This expertly built and robustly constructed distribution board is designed as a surface-mounted box with two rows that accommodate 24 modules. This assembly has an opaque door suitable for devices with an installation depth of up to 70mm. It offers unmatched flexibility as the door can be conveniently fitted on either the right or left side and also includes the option for a lock and keys to secure your equipment. The door opens to 180 degrees, allowing for effortless access.

        The wall box and cover are symmetrical, providing a removable cable entry slider, a feature specifically designed for easy and flexible cable and conduit entries. The dimensions of the installed product are practical: a height of 377mm, a width of 282mm, and a depth of 105mm.

        The HAGER VS212PT is not just about the robust build and practical design; it is equipped with innovative components that include Earth and Neutral terminals, pole fillers and a patented marking system for easy identification. Cable management is made simpler with dedicated clips, and transport is made safer with a protective film.

        Furthermore, the board comes with a busbar provided in some references. It has an IP rating of IP30 without the door and IP40 with the door fitted, as well as an IK07 rating, demonstrating its effective protection against dust and moisture ingress. With Isolation Class II, it ensures safety for direct and indirect contacts.

        The product boasts a sleek white finish (RAL 9010) that seamlessly fits your space decor. It has a rated current of 80 A and an insulation voltage of 400V AC/50Hz.

        The HAGER VS212PT | GOLF 24 Pole Surface Mount Distribution Board IP40 is a testament to impeccable engineering, combining safety, efficiency, and design in one unit, perfectly suited for your power distribution needs.

        HAGER VS212PT Features

        • Surface-mounted distribution boxes
        • 2 row, 24 modules
        • Supplied with an opaque door for devices up to 70mm installation depth
        • The door can be fitted on either right or left, with an optional lock and keys
        • The door opens up to 180 degrees
        • Symmetrical wall box and cover for removable cable entry slider
        • Cable entries for cable and conduit
        • Fixing mode: Surface-mounting
        • Dimensions of the installed product:
          • Height: 377 mm
          • Width: 282 mm
          • Depth: 105 mm

        VS Components:

        • Earth & neutral terminals
        • Pole fillers
        • Patented marking system
        • Cable management clips
        • Transport protection film
        • 2 x KDN180A

        Technical Data:

        • IP rating: IP30 without door, IP40 with door
        • Impact resistance rating: IK07
        • Isolation Class II
        • Colour: White (RAL 9010)
        • Rated current: 80 A
        • Rated insulation voltage: 400V AC/50Hz



        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct


        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Hager Electrical
        SKU VS212PT
        Barcode # 3250616594395
        Shipping Weight 2.2050kg
        Shipping Width 0.295m
        Shipping Height 0.105m
        Shipping Length 0.380m
        Shipping Cubic 0.011770000m3
        TYPE VALUE
        Type Enclosure
        Brand Hager
        Range Golf
        Height (mm) 377
        Width (mm) 282
        Depth (mm) 105
        Number of Poles 24
        Number of Horizontal Rows 2
