Clipsal by Schneider Electric | Solis T Series Wiser Connected Single GPO 10A 230/240V | Ebony Aluminium

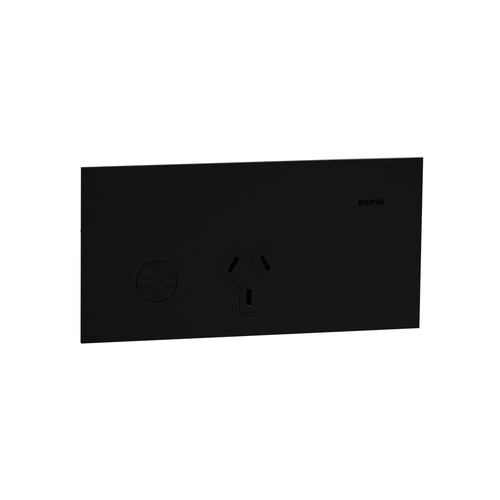

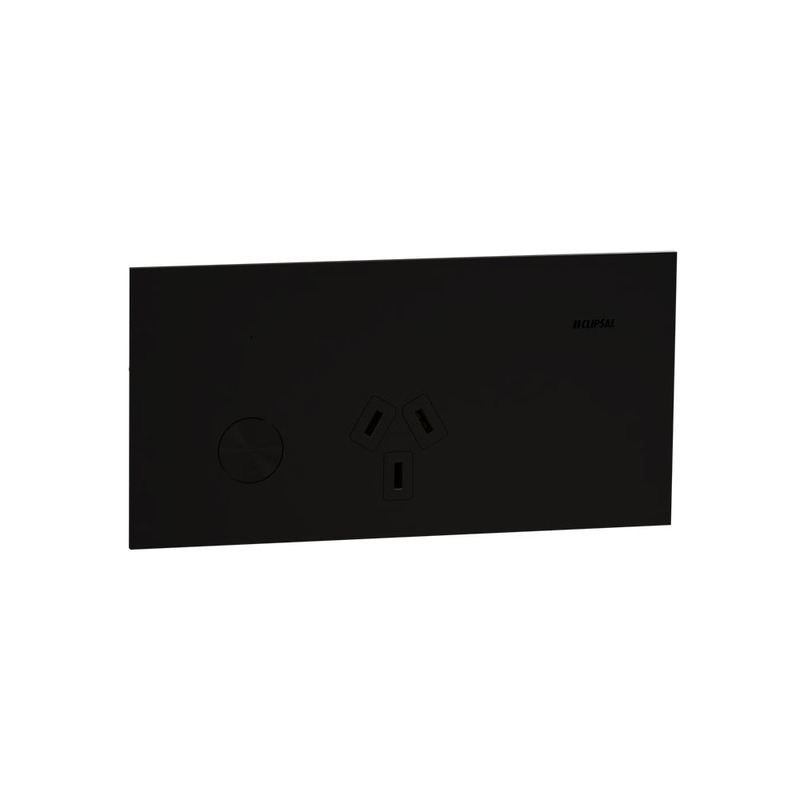

The Clipsal 1010CSZ-EA is a single switched socket outlet rated 10 A at 230/240 V AC, with Wiser connected switching over ZigBee. The 1010CSZ-EA mounts flush in a horizontal orientation and carries an aluminium cover finished in the ebony aluminium tint. It complies with AS/NZS 3112 and carries RCM product certification.
A standard GPO switches only at the rocker, with no way to control the load away from the wall. The 1010CSZ-EA answers that with ZigBee connectivity inside the socket, operated through the Wiser Home app. Rocker control stays on the face for anyone who never opens the app. The socket carries shuttered live contacts, covered whenever nothing is plugged in.
The connected function sits inside the socket, so the 1010CSZ-EA installs flush on 84 mm mounting centres with screw fixing. The cut-out is 93 x 50 mm, the embedding depth is 63 mm, and terminals take four 2.5 mm2 conductors or three 4 mm2 conductors, stripped to 16 mm. Fixing screws drive with a Philips No 2 or SQ1 bit.
Features
- Wiser connected switching — the 1010CSZ-EA is a switched socket with Wiser connected switching built into the outlet body itself.
- Wiser Home app control — the socket runs under Wiser Home software, so the outlet is operated from the app.
- ZigBee 50 metre range — the 1010CSZ-EA communicates over ZigBee, with a network range stated at 50 metres.
- Shuttered outlet — shutters sit over the live contacts and block access when nothing is plugged into the socket.
- Aluminium cover — the cover material is aluminium, which sets the weight and the feel of the plate at the wall.
- Metallic surface treatment — the surface treatment on the 1010CSZ-EA cover is metallic, worked into the aluminium face.
- 10 A rated current — the 1010CSZ-EA carries a rated current of 10 A on a 50 Hz supply.
- Screw terminals — the socket terminates four 2.5 mm2 conductors or three 4 mm2 conductors on screw terminals.
- Horizontal mount only — installation orientation is horizontal, and the 1010CSZ-EA is not specified for vertical mounting.
- AS/NZS 3112 compliance — the socket complies with AS/NZS 3112, the Australian and New Zealand standard for plugs and socket outlets.
- RCM certified — the 1010CSZ-EA carries RCM product certification for the Australian and New Zealand market.
- 0 to 45 degrees C — ambient operating temperature for the socket is specified from 0 to 45 degrees C.
Where to use
- Bedside and bedhead points — a single socket-outlet suits wall positions where one outlet is all the room needs.
- New build fit-off — the flush installation type suits walls sheeted and set before the fit-off stage begins.
- ZigBee smart home rooms — the 1010CSZ-EA suits homes running a ZigBee network, with a stated range of 50 metres.
- 10 A appliance positions — the 1010CSZ-EA serves general power outlet positions running on a 10 A circuit.
- Dark interior schemes — the ebony aluminium tint suits dark wall finishes and dark-fronted joinery across a fit-out.
- Standard 84 mm centres — the 1010CSZ-EA mounts to boxes and brackets set out on 84 mm mounting centres.
The 1010CSZ-EA is specified for horizontal installation only and is not specified for vertical mounting. No IP rating is listed for this socket, so it is not suited to damp exposed positions or outdoor walls. Operation is specified between 0 and 45 degrees C, at 10 to 95 per cent relative humidity.
