Clipsal by Schneider Electric | Solis T Series Wiser Horizontal Single GPO 10A 230/240V | Brushed Brass Anodised Aluminium

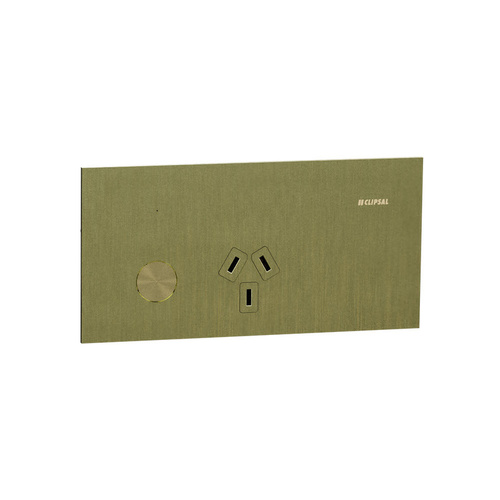

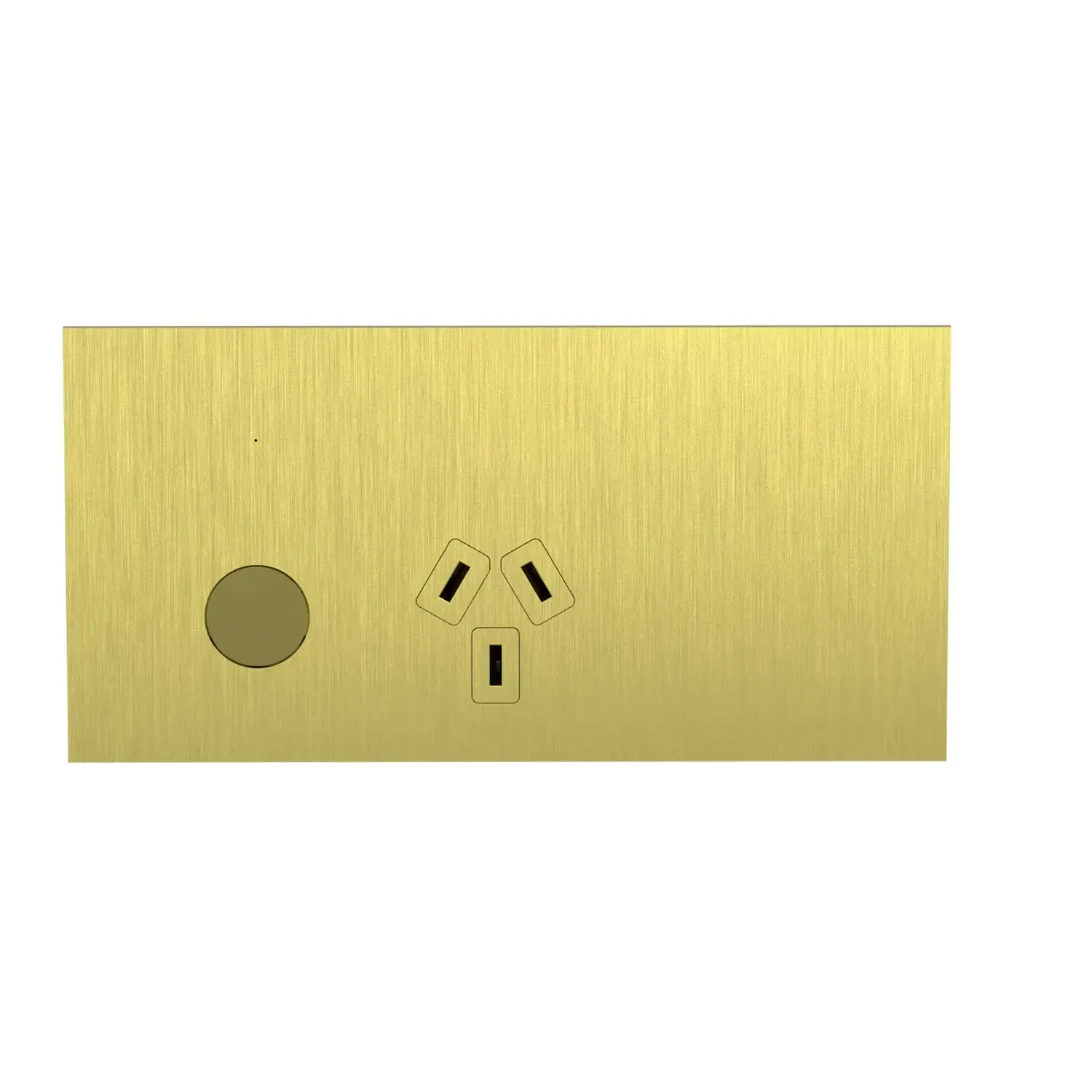

The Clipsal 1010CSZ-BB is a single socket outlet with a ZigBee Wiser connected switch, rated 10A at 230/240V AC and finished in brushed brass. The 1010CSZ-BB mounts flush in a horizontal orientation and is supplied as a complete product on an anodised aluminium plate. It is built to AS/NZS 3112 and carries the RCM mark.
Metal finishes date fast when the switchgear on a feature wall stays plastic white. The Solis T Series answers that with an anodised aluminium plate in brushed brass, so the outlet reads as joinery hardware rather than an electrical accessory. Smart control usually forces a second compromise on looks, because most connected outlets only come in white. The 1010CSZ-BB puts ZigBee Wiser switching behind that same brass plate.
Kitchen and hotel fitouts running the Solis range specify one plate style across switches and outlets, which holds the finish consistent from bench to bedhead. The 1010CSZ-BB lands on screw terminals that take three 4 mm2 conductors, so heavier tails terminate without fighting a spring cage. A 93 x 50 mm cut-out on 84 mm mounting centres matches the rest of the Solis horizontal plates, so one set-out covers the run. The 10 year mechanical and 7 year electronic warranty is handled by Clipsal in home, which keeps callbacks off the books.
Features
- ZigBee Wiser control — the 1010CSZ-BB pairs to the Wiser Home app, so the outlet switches from a phone as well as from the plate.
- Rocker control — the plate keeps a physical rocker, so the socket still switches locally without a phone or a network.
- Shuttered outlet — internal shutters block contact with the pins on the 2P + E Australian and New Zealand socket.
- Anodised aluminium plate — the brushed brass finish is anodised rather than painted, on a 3.9 mm cover thickness.
- Screw terminals — four 2.5 mm2 or three 4 mm2 conductors land under screws, with a 16 mm wire strip length.
- Horizontal orientation only — the 1010CSZ-BB is made for horizontal installation, so vertical mounting is not supported.
- Flush mount set-out — a 93 x 50 mm cut-out on 84 mm mounting centres takes the plate, at 63 mm embedding depth.
- Complete product — supplied as a full assembly with screws, so no separate grid plate or skin is ordered.
- Memory backup — the connected switch holds its state through a supply interruption.
- Indoor ambient range — rated for 0 to 45 deg C and 10 to 95 percent relative humidity, which keeps it an indoor fitting.
- AS/NZS 3112 and RCM — built to the Australian and New Zealand socket outlet standard and carrying the RCM mark.
- Clipsal in home warranty — 10 year mechanical and 7 year electronic cover for both domestic and commercial use.
Where to use
- Kitchen islands and splashbacks — brushed brass outlets sit alongside tapware and handle finishes at bench level power.
- Bedheads and bedside joinery — the 1010CSZ-BB switches from the Wiser Home app, so a lamp goes off without reaching behind furniture.
- Hotel and short stay rooms — app switching lets staff cut power to a socket between guests.
- Feature walls in new builds — the Solis T Series plate suits dark paint and timber finishes where a white plate stands out.
- Home office desks — switching through Wiser Home shuts down monitor and charger loads outside work hours.
- Commercial reception and fitout work — the 1010CSZ-BB carries the same 10 year mechanical cover in commercial use as in domestic use.
- Renovation retrofits — the 93 x 50 mm cut-out and 84 mm centres match the rest of the Solis horizontal range across a job.
The 1010CSZ-BB carries no IP rating, so it is not suitable for outdoor, wet or damp locations such as external walls, splash zones or laundry tub areas. It is rated for 0 to 45 deg C ambient and 10 to 95 percent relative humidity, which rules out plant rooms and unventilated roof spaces. The plate is horizontal orientation only and is not made for vertical installation.
