Learn more by watching our Clipsal 1010CSZ-ZB | Solis Horizontal Mount Single GPO | Matte Black Power Point video.
Additional related video.

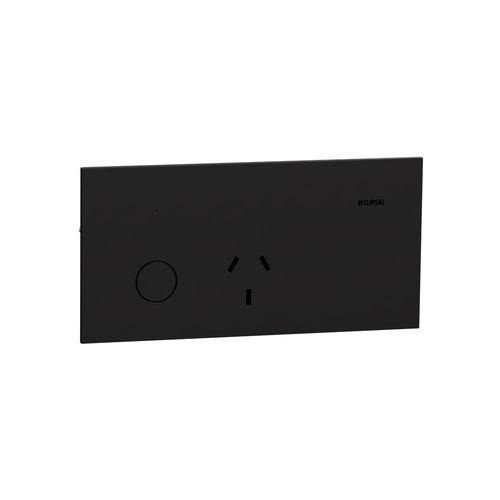

The Clipsal 1010CSZ-ZB is a single 10A socket outlet with a Wiser connected switch, supplied as a complete product in matte black. It mounts horizontally on 84mm centres and runs on ZigBee, with control through the Wiser Home app. The 1010CSZ-ZB measures 148mm wide, 74mm high and 67.5mm deep, and needs 63mm of embedding depth.
Embedding depth decides whether a connected socket fits the wall it is going into. The 1010CSZ-ZB needs 63mm behind the finished surface, well past a standard plate depth, and takes a cut-out of 93 x 50mm. Mounting centres are 84mm, matching the rest of the Solis horizontal range. The body is painted polycarbonate, with a cover 4.5mm thick at the face.
On a Solis fit-off, this outlet arrives complete rather than as a mech and plate to pair up. Terminals are screw type, taking four 2.5mm² or three 4mm² conductors, with a 16mm stripping length. The outlet is shuttered, and the mechanism holds its state in backup memory.
The 1010CSZ-ZB is horizontal mount only, and will not suit a vertical position. Clipsal rates it for ambient temperatures of 0 to 45 degrees and relative humidity of 10 to 95 percent, and lists no IP rating, so it is an interior product. The 63mm embedding depth rules out shallow boxes that suit a standard plate.
(1010CSZ-ZB)
No. Clipsal lists the assembly type as complete product, so the socket outlet arrives assembled. There is no separate mechanism or plate to order alongside it. Screws are supplied for the fixing.
Embedding depth is 63mm, measured behind the finished wall surface. Overall depth of the outlet is 67.5mm and the cover is 4.5mm thick at the face. Cut-out dimensions are 93 x 50mm.
The screw terminals accept four 2.5mm² conductors or three 4mm² conductors. Wire stripping length is 16mm. Clipsal lists Philips No 2 and square drive no 1 as the screwdriver shapes.
No. Clipsal lists the installation orientation as horizontal. Mounting centres are 84mm and the installation type is flush.
The outlet carries a rocker at the wall and is also operated through the Wiser Home app. Communication network type is ZigBee with a 50 metre range. Confirm the wider Wiser setup with your licensed installer before ordering.
Domestic and commercial use both carry 10 years mechanical and 7 years electronic. Warranty runs from the invoice date and is handled by Clipsal directly under an in-home warranty. Installation by a licensed electrician is required for the warranty to hold.
Sparky Direct stocks the 1010CSZ-ZB and delivers Australia-wide. Orders are dispatched from our Caboolture warehouse.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electronic
Commercial Use: 10 Year Mechanical and 7 Year Electronic
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Range | Clipsal Solis |
| Product or component type | Socket with Wiser connected switch |
| Product brand | Clipsal |
| Assembly Type | Complete product |
| Colour tint | Matte Black |
| Software name | Wiser Home |
| Protection | Shuttered |
| Memory usage | Backup |
| Main colour tint | Matte Black |
| Control type | Rocker |
| Number Of Outlets | 1 |
| Socket-outlet type | Single socket-outlet |
| Mounting Type | Screw |
| Installation Type | Flush |
| Installation Orientation | Horizontal |
| Material | Polycarbonate |
| [Ue] rated operational voltage | 230/240 V AC |
| Network frequency | 50 Hz |
| [In] rated current | 10 A |
| Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |
| Embedding depth | 63 mm |
| Depth | 67.5 mm |
| Height | 74 mm |
| Width | 148 mm |
| Mounting Centers | 84 mm |
| Communication network type | ZigBee 50 m |
| Cut-out dimensions | 93 x 50 mm |
| Surface treatment | Painted |
| Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
| Wire stripping length | 16 mm |
| Number of power socket outlets | 1 x 2P + E, Australian/New Zealand |
| Cover Thickness | 4.5 mm |
| Number Of Switches | 1 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 1010CSZ-ZB |
| Model # | 1010CSZ-ZB |
| Barcode # | 3606487057567 |
| Package Weight | 0.240kg |
| TYPE | VALUE |
|---|---|
| Brand | Clipsal |
| Range | Clipsal Solis |
| Colour | Matte Black |
| Number of Outlets | 1 |
| Material | Polycarbonate |
| Depth | 67.5mm |
| Width | 148mm |
| Height | 74mm |
| Mounting Type | Screw |
| Rated Current | 10A |
| Control Type | Rocker |
| Assembly Type | Complete Product |
| Installtion Type | Flush |
| Rated Operational Voltage | 230/240V AC |
| Cut-out Dimensions | 93 x 50mm |
| Fixing Centre | 84mm |
