    Description

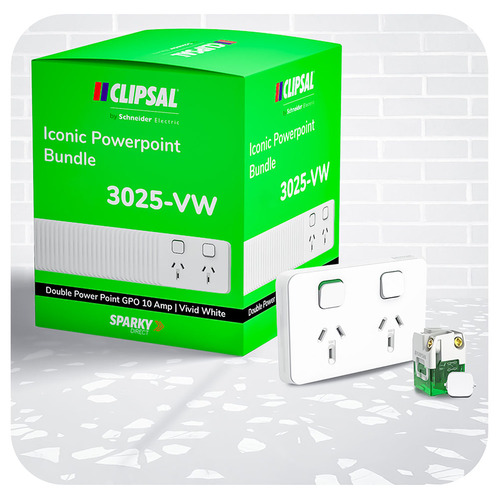

    Clipsal 3025VW-50Bundle | Double Power Point GPO 10 Amp | Vivid White | 50 Bundle

    This Clipsal Iconic 3025VW bundle offers an exceptional value pack of 50 double power point GPOs, each rated at 10 Amps for reliable performance in residential or commercial settings. Crafted with precision in a vivid white finish, these power points blend seamlessly into any décor while ensuring functionality and durability. Designed for flush mounting, they offer a sleek, modern appearance with a matte surface finish that complements the aesthetics of any room.

    3025-VW Features:

    • Comprehensive Bundle: Includes 50 units of the 3025-VW Double Power Points, providing ample supply for large projects or upgrades.
    • High Durability: Rated for 12,000 electrical cycles, ensuring long-lasting reliability and performance.
    • Easy Installation: Features a horizontal installation direction with screw fixing mode, compatible with the Clipsal Iconic range.
    • Safety and Compliance: Equipped with earthing contact and complies with AS/NZS 3112 standards, along with RCM product certifications.
    • Versatile Connections: Accommodates rigid, stranded, and flexible cables with multiple clamping connection capacities, simplifying the installation process.
    • Quality Materials: Constructed from high-grade materials such as PC, PP, POM, and ABS, ensuring durability and a premium feel.

    3025-VW FAQ:

    Q: What is the current rating for these power points?
    A: Each double power point is rated for 10 A at 250 V AC 50 Hz, suitable for standard electrical devices and appliances.

    Q: Can these power points be used with both rigid and flexible cables?
    A: Yes, they are designed to accommodate 1 x 2.5...4 x 2.5 mm² for rigid, stranded, and flexible cables, offering versatility in wiring options.

    Q: Are these power points suitable for outdoor installation?
    A: With a matte finish and robust construction, these power points are primarily designed for indoor use, ensuring safety and durability within the operational temperature range of 0…45 °C.

    Q: How are these power points installed?
    A: They are designed for flush mounting with a horizontal installation direction, fixed by screws for a secure and streamlined appearance.



    (3025VW-50Bundle)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Clipsal in home warranty


    Features
    Specification Details
    Range Clipsal Iconic
    Product or component type Switched socket
    Device presentation Complete product
    Outlet poles configuration 2P + E with shutter
    Device mounting Flush
    Number of power socket outlets 2
    Number of rocker 2
    Outlet standard description With earthing contact
    Outlet standard Australian/New Zealand
    Ground lug position Straight 180° position
    Fixing mode By screw
    Installation direction Horizontal
    Surface finish Matt
    Type of packing Polybag
    Sale per indivisible quantity 1
    Rated current 10 A at 250 V AC 50 Hz
    Electrical durability 12000 cycles
    Connections - terminals 3 screw terminals
    Screwdriver shape Philips No 2, Square drive no 1 (SQ1)
    Clamping connection capacity 1 x 2.5...4 x 2.5 mm² for rigid, stranded, and flexible cable(s)
    Wire stripping length 16 mm
    Material PC, PP, POM, ABS
    Height 78 mm
    Width 120 mm
    Depth 27 mm
    Embedding depth 18 mm
    Net weight 0.116 kg
    Ambient air temperature for operation 0…45 °C
    Relative humidity 10…95 %
    Standards AS/NZS 3112
    Product certifications RCM
    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU 3025VW-50Bundle
    Unit Of Measure ea
    TYPE VALUE
    Type Power Points
    Brand Clipsal by Schneider Electric
    Range Clipsal Iconic
    Colour Vivid White
    Rated Current (A) 10
    Height (mm) 78
    Width (mm) 120
    Depth (mm) 31
    Complete / Skin Only / Grid Plate Only Complete
    Number Of Outlets 2
    Number of Poles 1
    Quantity 50
