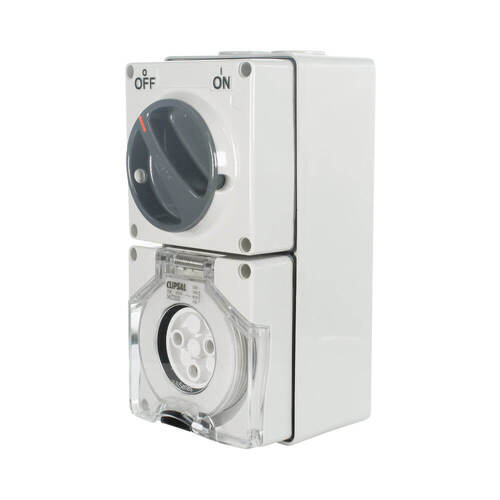

Clipsal 56C320GY | 3 Round Pin 20Amp Switched Socket Outlet IP66 | 56 Series
Learn more by watching our Clipsal 56C320GY | 3 Round Pin 20Amp Switched Socket Outlet IP66 | 56 Series video.
Description:
When it comes to electrical outlets, you deserve the best in safety, reliability, and performance. The Clipsal 56C320GY 3 Round Pin 20Amp Switched Socket Outlet with IP66 protection from the trusted 56 Series is here to provide you with just that. Explore the reasons why this outlet is the ideal choice for your home:
Key Benefits:
Built to Last: Crafted by Clipsal, a name synonymous with quality, this switched socket outlet is designed for long-lasting durability. Its robust construction ensures it can withstand the test of time and the harshest of environments.
Superior Performance: Rated at 250V and 20A, this outlet delivers powerful and reliable performance, meeting your electrical needs with ease.
IP66 Weatherproof Rating: Don't let the weather dictate when and where you can use your power outlets. The IP66 rating guarantees protection against dust and high-pressure water jets, making it perfect for outdoor applications.
Safety First: Your safety is paramount. With three round pins and one pole (1P + N + E), this outlet adheres to the highest safety standards. It meets the AS/NZS 3123 and AS/NZS 3133 standards for your peace of mind.
FAQ:
Q: Can I use this outlet outdoors?
A: Absolutely! The Clipsal 56C320GY features an IP66 weatherproof rating, making it perfect for outdoor use. It's designed to withstand dust and high-pressure water jets.
Q: Is this outlet easy to install?
A: Yes, it's surface-mounted, making installation straightforward for your convenience.
Q: What is the voltage and current rating of this outlet?
A: The Clipsal 56C320GY is rated at 250V and 20A, ensuring powerful and reliable performance.
Q: Does it meet safety standards?
A: Yes, it adheres to the AS/NZS 3123 and AS/NZS 3133 standards, providing you with a safe and compliant electrical solution.
Q: Is it built to last?
A: Absolutely! This outlet is crafted from high-quality polycarbonate material, ensuring long-lasting durability even in challenging conditions.
Elevate your electrical setup with the Clipsal 56C320GY 3 Round Pin 20Amp Switched Socket Outlet from the renowned 56 Series. Experience superior performance, outstanding durability, and the peace of mind that comes with top-notch safety standards. Power your space with confidence—choose Clipsal.
(56C320GY)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
| Design | |
| Range of product | Series 56 |
| Range | Clipsal - 56 Series |
| Product brand | Clipsal |
| Product or component type | Socket-outlet |
| Device application | Power supply |
| Market segment | Utility, Small commercial, Industry |
| Sustainable offer status | Green Premium product |
| Physical | |
| Number of poles | 3 |
| Number of power socket outlets | 1 protective cover |
| In rated current | 20 A |
| Rated operational voltage | 250 V AC 50 Hz |
| Protection type | Without protection |
| Device mounting | Surface |
| Connections - terminals | Screw terminals cable(s) 2.5-6 mm² |
| Depth | 108 mm |
| Width | 101 mm |
| Height | 204 mm |
| Standards | AS/NZS 3123, AS/NZS 3133 |
| Ambient air temperature for operation | -25...75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive | Compliant |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | Product out of China RoHS scope. Substance declaration for your information |
| Material | |
| Material | Polycarbonate: cover |
| Contacts material | Pins: phosphor bronze |
| Others | |
| Package 1 Bare Product Quantity | 1 |
| Plug, socket category | Low voltage |
| Outlet standard deviation | Australian/New Zealand |
| Plug, socket, control station shape | Straight |
| Number of modules | 1 |
| Poles description | 1P + N + E |
| Electrical connection | Industrial connector |
| Targeted country | Australia |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.35 cm |
| Package 1 Width | 10.35 cm |
| Package 1 Length | 20.65 cm |
| Package 1 Weight | 944.0 g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 56C320GY |
| Barcode # | 9311554198497 |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.205m |
| Shipping Height | 0.115m |
| Shipping Length | 0.105m |
| Shipping Cubic | 0.002475375m3 |
| TYPE | VALUE |
|---|---|
| Type | Industrial Outlets |
| Brand | Clipsal by Schneider Electric |
| Range | 56 Series |
| Colour | Grey |
