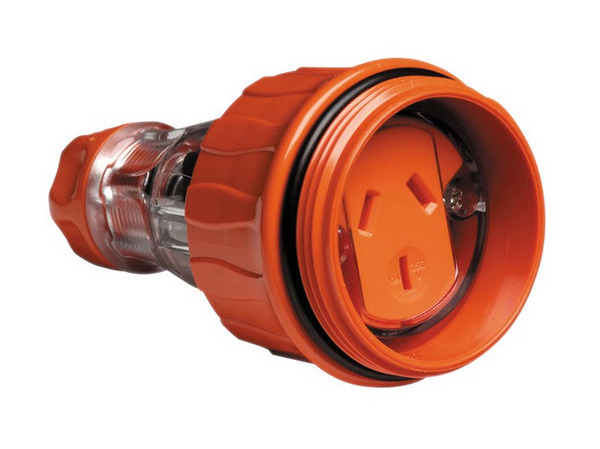

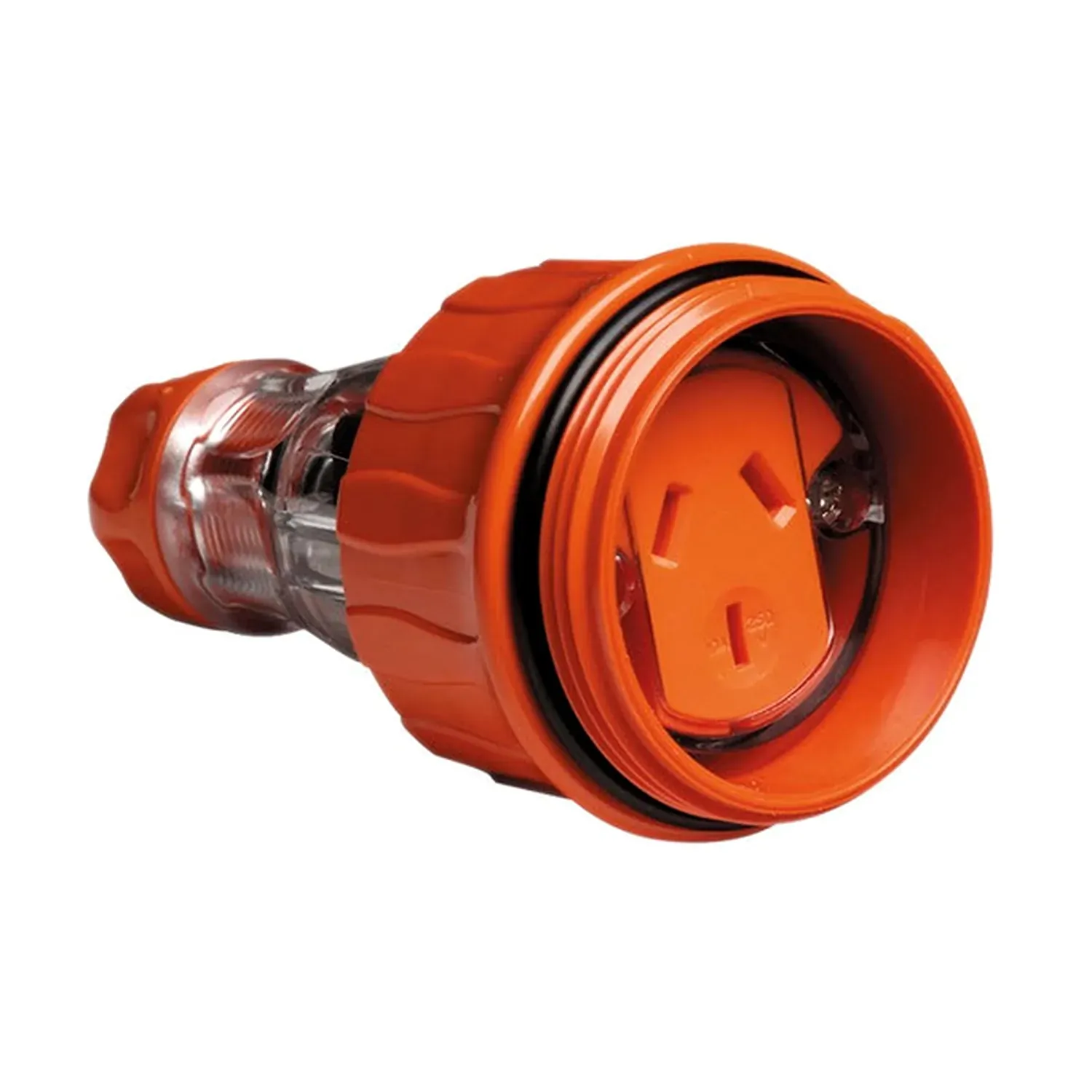

The Clipsal 56CSC310-EO is a robust 10A, 250V AC 3-pin flat extension socket from the trusted 56 Series range. Engineered for challenging environments, it boasts an IP66 rating for reliable protection against dust and water, making it suitable for industrial and outdoor use. Constructed with a durable polycarbonate housing and brass contact sleeves, it ensures impact resistance and dependable electrical connectivity. Its straight design and external mounting mode simplify setup, while the cable gland accommodates cables with diameters of 7mm to 16mm for added versatility.
The socket meets AS/NZS 3120 standards and functions efficiently in temperatures ranging from -25°C to 75°C. Compact and lightweight, it measures 120mm in depth, 105mm in length, and 85mm in width, offering a sturdy yet manageable design.
Q: What cable sizes are supported by this extension socket?
A: It supports cables with an outer diameter of 7mm to 16mm.
Q: Can this socket be used outdoors?
A: Yes, its IP66 rating ensures protection from dust and water, making it suitable for outdoor use.
Q: What material is used in its construction?
A: The housing is made of durable polycarbonate, with brass used for the contact sleeves.
(56CSC310-EO)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Model | 56CSC310-EO |
Range | Clipsal - 56 Series |
Rated Current | 10 A |
Rated Voltage | 250 V AC, 50 Hz |
IP Rating | IP66 |
Material | Polycarbonate housing |
Cable Diameter | 7-16 mm |
Connections | Screw terminals 0.75-1.5 mm² |
Dimensions (L x W x H) | 120 mm x 85 mm x 85 mm |
Net Weight | 0.139 kg |
Colour | Orange (RAL 2004) |
Standards | AS/NZS 3120 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 56CSC310-EO |
Barcode # | 9311554069728 |
Package Weight | 0.120kg |
Package Width | 0.060m |
Package Height | 0.060m |
Package Length | 0.105m |
TYPE | VALUE |
---|---|
Type | Industrial Plugs & Sockets |
Brand | Clipsal by Schneider Electric |
Range | 56 Series |
Colour | Orange |
Rated Current (A) | 10 |
Height (mm) | 85 |
Width (mm) | 85 |
Depth (mm) | 120 |
Protection | IP66 |
Voltage (V) | 250 |
Pin Number | 3 |
Style | Straight |
