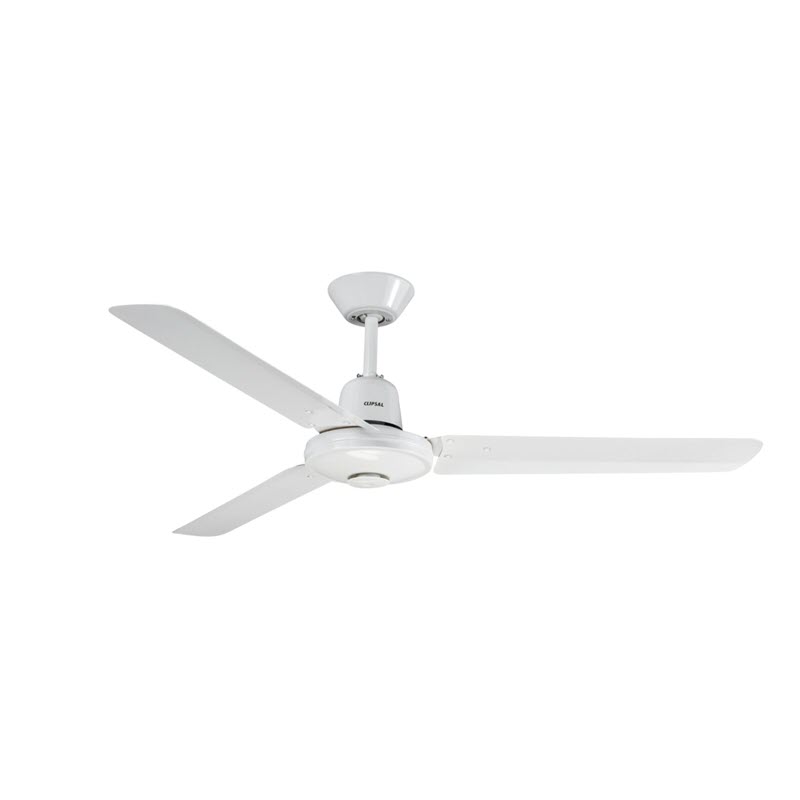

Clipsal by Schneider Electric | Airflow 3-Blade Ceiling Fan 1400mm | White Aluminium
The Clipsal Airflow P3HS1400AL-WE is a 1400mm three-blade ceiling sweep fan rated 240V AC 50Hz, featuring durable aluminium blades for coastal and high-humidity environments. The P3HS1400AL-WE delivers 11,400 m³/h airflow at maximum speed and mounts via the revised Hangsure system with improved stability and quicker installation accuracy.
Residential and commercial installations often need consistent air circulation across large spaces without complex control systems. The P3HS1400AL-WE solves this by mounting directly to a ceiling fixture and operating from standard 240V single-phase supply. Electricians value the pre-wired and part-assembled configuration, which cuts installation time and eliminates on-site rewiring. The three-speed capacitor controller (C2000) included with the fan gives occupants full control over air movement, and the reversing switch on the motor lets the fan run either direction depending on seasonal need.
The aluminium blade construction resists corrosion in harsh coastal and high-humidity conditions where steel alternatives would deteriorate, making this fan a long-term investment for homes and commercial spaces near the ocean or in tropical climates. Licensed electricians favour the Airflow range for its straightforward integration into standard ceiling systems and consistent 60W motor performance. The adjustable blade angle up to 17 degrees allows on-site tuning of airflow direction to match room layout and comfort requirements.
Features
- Aluminium blade construction — resists corrosion in coastal regions and high-humidity environments where conventional steel blades corrode.
- 11,400 m³/h air movement — delivers strong circulation across large residential and commercial spaces at maximum speed.
- Adjustable blade angle up to 17 degrees — site-tunable airflow direction for optimised comfort and room coverage.
- Revised Hangsure mounting system — faster, more accurate ceiling installation with improved stability over earlier designs.
- 240V AC 50Hz rated — standard single-phase domestic and commercial mains power operation.
- C2000 three-speed capacitor controller included — low, medium, and high speed settings with no separate purchase required.
- Reversing switch on motor — reverses blade rotation to push warm air down in winter or draw cool air up in summer.
- Pre-wired and part-assembled — reduces on-site installation time and eliminates the need for additional wiring or assembly.
- 60W power consumption — low energy draw suitable for general-purpose circuits rated at 10A or higher.
- Maximum rotation speed 258 rpm — delivers full airflow design specification for the 1400mm sweep.
Where to use
- Residential living areas and lounge rooms — the P3HS1400AL-WE provides cost-effective air circulation across open-plan or large rectangular spaces in homes.
- Bedrooms and sleeping spaces — three-speed control lets occupants choose low-speed gentle air movement for comfort without noise during rest.
- Coastal and high-humidity homes — aluminium blades resist salt-air corrosion in seaside properties and tropical regions where standard fans rust.
- Commercial retail and office spaces — rated for both domestic and commercial use, the fan suits warehouses, showrooms, and open-office layouts.
- Holiday rentals and investment properties — pre-assembled installation and reversible operation reduce maintenance call-backs and provide year-round comfort control.
- Renovation and new-build specifications — part of a standard electrical fitout for residential extensions and commercial tenant fit-outs.
- Outdoor-facing verandas and semi-open spaces — not weatherproof and not suitable for fully exposed outdoor areas; for covered verandas with roof protection only.
The Clipsal Airflow P3HS1400AL-WE is not rated for fully external or weather-exposed installations. It is designed for indoor ceiling mounting only, not for open balconies, decks, or unroofed areas subject to rain or direct sunlight.
