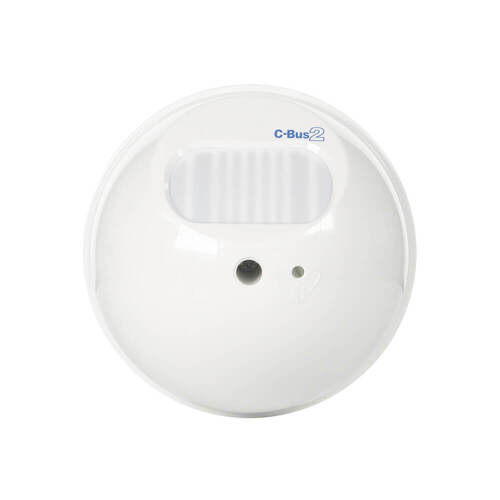

Clipsal Schneider 5751L-WE | C-Bus Indoor PIR Motion Sensor | White
Learn more by watching our Clipsal Schneider 5751L-WE | C-Bus Indoor PIR Motion Sensor | White video.
Description:
The Clipsal Schneider 5751L-WE is a passive infrared (PIR) motion sensor designed to enhance your home's automation and security. Ideal for homeowners who are looking to integrate advanced occupancy sensing into their C-Bus system, this device is perfect for monitoring staircases and other critical areas.
Its white electric colour blends seamlessly with any decor, while the adjustable light sensitivity and programmable time delay (from 1 second to 18 hours) allow for the customized operation to match your lifestyle. The sensor covers a generous detection area with a lateral reach of 6 meters and a frontal range of 8.5 meters, ensuring no movement goes unnoticed.
With a horizontal detection angle of up to 120 degrees and a vertical angle of 90 degrees, it provides comprehensive coverage. Easy to mount on surfaces at a recommended height of 2.4 meters, this PIR motion sensor is a blend of functionality and aesthetics, powered efficiently from the C-Bus network.
Features:
FAQ:
Q: What is the power requirement for the 5751L-WE sensor?
A: It requires 18mA at 15-36Vdc from the C-Bus network for correct operation.
Q: Can the detection sensitivity be adjusted?
A: Yes, the light sensitivity is adjustable, allowing for customization based on environmental lighting conditions.
Q: What is the recommended mounting height for optimal detection?
A: The recommended mounting height is 2.4 meters to ensure the best coverage and detection efficiency.
Q: Is this sensor suitable for outdoor use?
A: It's designed primarily for indoor use, offering staircase monitoring and other interior applications with creep zone protection.
(5751L-WE)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Range | C-Bus |
| Product brand | Clipsal |
| Component type | Occupancy sensor |
| Device application | Lighting |
| C-Bus supply voltage | 15-36V DC @ 18mA |
| Sensor type | PIR |
| Rated max detection field | 6 x 6m @ 8.5m from sensor @ 2.4m mounting height |
| Sensor head rotation | 120° |
| Light level inhibit threshold | Continuous < 1 Lux |
| Colour | White electric |
| Protection type | Creep zone protection |
| Type of setting | Light sensitivity adjustable |
| Number of channels | 1 |
| Detection face | Lateral: 6 m, Frontal: 8.5 m |
| Movement detection area | 6 m |
| Horizontal detection angle | 0…120 ° |
| Vertical detection angle | 90 ° |
| Time delay range | 0...1 s (switch-on) |
| Duty cycle | 1080 min |
| Material | Plastic |
| Device mounting | Surface |
| Mounting height | 2.4 m |
| Colour code | WE |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 5751L-WE |
| Barcode # | 9311554348229 |
| Shipping Weight | 0.1800kg |
| Shipping Width | 0.115m |
| Shipping Height | 0.115m |
| Shipping Length | 0.075m |
| Shipping Cubic | 0.000991875m3 |
| TYPE | VALUE |
|---|---|
| Type | PIR Sensor |
| Type | White |
| Brand | Clipsal by Schneider Electric |
