        Learn more by watching our Clipsal Schneider L5501RFCP | C-Bus Relay Fan Control 1 Channel video.

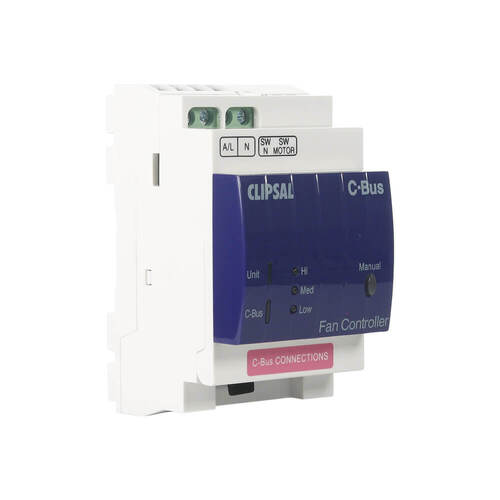

        Clipsal Schneider L5501RFCP | C-Bus Relay Fan Control 1 Channel

        Description:

        The Clipsal Schneider L5501RFCP is a cutting-edge C-Bus Relay Fan Control designed for efficient and reliable fan speed management. This DIN Rail-mounted device is engineered to control inductive loads with precision, making it an indispensable tool for both electricians and homeowners. It allows for seamless fan speed adjustments across a wide range of applications, ensuring optimal airflow and comfort in any setting while being controlled by a C-Bus network.

        With its robust design, including a capacitor control and an AC input impedance of 100k Ohm, it operates within a 15-36V DC supply voltage, catering to diverse electrical requirements. The L5501RFCP is a testament to innovation, offering a single channel output with a fan load rating of 1.5A, all within a compact form factor that facilitates easy installation and integration.

        Features:

        • Single Channel Output for dedicated fan speed control.
        • DIN Rail Mounted for easy installation and integration into existing setups.
        • Capacitor Control ensures smooth operation and longevity of fan motors.
        • Inductive Load Compatibility with a nominal output power of 350W.
        • Fan Load Rating of 1.5A is suitable for most residential and commercial fans.
        • LED Local Signalling for at-a-glance status updates.
        • Screw Terminals for secure and straightforward wiring connections.
        • Compact Design, measuring 210mm in width, 75.5mm in height, and 66mm in depth.
        • IP20 Protection class, ensuring safety and durability in indoor environments.
        • 400mm CAT5E data cable included.

        FAQ:

        Q: What is the rated voltage for the L5501RFCP?
        A: It supports a rated voltage of 100 to 250 V AC, 50/60 Hz, accommodating a wide range of electrical systems.

        Q: How many units can be connected in a network?
        A: Up to 100 units can be connected per C-BUS network, allowing for extensive system scalability.

        Q: What is the C-Bus current requirement?
        A: The device requires 18mA of C-Bus current to ensure efficient operation.

        Q: Is it suitable for residential use?
        A: Absolutely, its design and functionality make it ideal for both residential and commercial applications, enhancing comfort and control.

        (L5501RFCP)

        100-Day Fuss-Free Returns
        We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.

        • Items must be unused, with all parts, accessories, and original packaging.
        • We can’t accept returns if the product is damaged, incomplete, or not in resalable condition.
        • Proof of purchase is required.
        • Return shipping is the responsibility of the customer.

        If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.

        All products come with a manufacturer’s or supplier’s warranty

        • Warranty starts from the Invoice Date
        • Some suppliers offer in-home warranties and handle claims directly, so you won’t need to uninstall or return the product. Chat with us to check if your product qualifies.
        • Sparky Direct isn’t responsible for losses caused by product failure.
        • Warranties are void if products aren’t installed by a licensed electrician.

        Damaged or Faulty Goods
        If your order arrives damaged or is faulty, let us know within 24 hours.

        • Sparky Direct will pay for return shipping via an emailed return label.
        • If the fault is confirmed, we will send you a replacement item or provide a refund.

        Contact us via our chat to arrange the return.

        Exclusions
        We can’t accept returns for:

        • Items that have been installed, modified, or used
        • Clearance, End of life, Discontinued, or special order items (unless faulty)
        • All PPE Items
        • Goods returned without original packaging or proof of purchase

        How to Request a Return

        1. Contact our customer service team with your order number.
        2. Confirm it’s eligible under our return or warranty policy.
        3. Pack the item securely and return it using a trackable service.
        4. Once we receive and inspect it, we’ll process your refund or replacement.

        The warranty starts from the Invoice Date.

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Specification Details
        C-Bus input voltage 15-36V DC
        C-Bus current requirement 18mA
        Fan motor input voltage 100-240V AC
        Fan load rating 1.5A
        Rated impulse withstand voltage 4kV
        AC input impedance 100kΩ @ 1kHz
        Electrical isolation 3.75kV
        Maximum units 100
        Warm-up time 10s
        Connectors 2 x RJ-45 for C-Bus,
        3 x push buttons for one 1.5mm²,
        2 x screw type for one 1.5mm²,
        2 x screw type for up to two 1.5mm²
        Indicators Unit, C-Bus, 3 x Fan speed
        IP Rating IP20
        Mounting Type DIN Rail
        Operating Temperature 0°C-65°C
        Operating humidity 10-95%

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU L5501RFCP
        Model # L5501RFCP
        Barcode # 9311554722296
        Package Weight 0.270kg
        Package Width 0.110m
        Package Height 0.080m
        Package Length 0.160m
        View Datasheet
        View Manual
        TYPE VALUE
        Type Fan Control
        Brand Clipsal by Schneider Electric
        Din Rail Yes
