Clipsal by Schneider Electric | C-Bus Voltage Free Relay 4 Channel 10A | DIN Rail with Power Supply

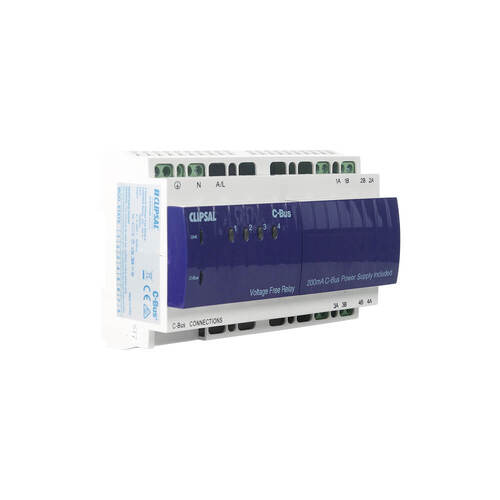

The Clipsal L5504RVF is a C-Bus relay unit providing four voltage-free output channels, rated 10A at 240V AC and mounted on DIN rail. Its contacts are magnetically latched and carry no supply of their own, so each channel operates as a clean switch into a separate circuit. The L5504RVF includes a built-in C-Bus power supply, connects to the network through RJ45 sockets, and provides 3.75kV electrical isolation between the C-Bus and mains sides.
C-Bus handles lighting circuits without difficulty, but plenty of what a job needs to control is not a C-Bus load at all. A building management input, a plant contactor coil, an irrigation valve, a gate controller, or a circuit on a different phase all need switching without the relay imposing its own potential. Voltage-free contacts answer that: the channel closes a circuit that belongs to somebody else's system, and the 3.75kV isolation keeps the C-Bus side separate from the mains side.
The unit is configured to reduce what else the switchboard requires. A built-in C-Bus power supply means a smaller network may not require a separate supply unit, while the magnetically latched contacts maintain position without continuous coil energisation. Terminations remain conventional: screw terminals accepting 2 x 1.5mm2 or 1 x 2.5mm2 conductors, with RJ45 sockets for the network connection and a 400mm CAT5E lead supplied.
Features
- Four voltage-free channels — each output is a potential-free contact, so the L5504RVF switches circuits belonging to other systems.
- Magnetically latched contacts — the relay holds its position without drawing continuous coil power to maintain state.
- 10A load rating — rated 10A per channel at 240V AC, with a reduced 2A rating for motor loads.
- Built-in C-Bus power supply — the L5504RVF supplies the network itself, which can remove the need for a separate supply unit on a small system.
- 3.75kV electrical isolation — separates the C-Bus side from the mains side of the unit.
- RJ45 C-Bus connections — network terminations use RJ45 sockets, with a 400mm CAT5E lead supplied.
- Screw terminals — mains terminals accept 2 x 1.5mm2 or 1 x 2.5mm2 conductors.
- DIN rail mounting — 144mm wide, 85mm high, 65mm deep for mounting in a distribution board or control panel.
- Adjustable restart delay — settable from 0:00 to 42:30 to stagger channel operation after a restart.
- Ten units per network — a maximum of ten of these units may sit on one C-Bus network, which shapes system design.
- 0 to 45 degrees C operating range — the L5504RVF is rated for board environments within that ambient band and 10 to 95 percent humidity.
Where to use
- Interfacing to plant equipment — the L5504RVF signals contactor coils, starters, and plant controllers that are not themselves C-Bus devices.
- Building management interfaces — closes dry contacts into BMS inputs so a C-Bus scene can trigger equipment on another system.
- Switching across phases — voltage-free channels switch circuits fed from a different phase to the unit's own supply.
- Extra-low-voltage control circuits — drives control inputs on gates, irrigation, or audio-visual equipment without imposing mains potential.
- Commercial fit-outs — the L5504RVF sits in a board or control panel where C-Bus needs to reach beyond lighting.
- Residential automation upgrades — adds interface switching to an existing C-Bus installation during a board or system extension.
The L5504RVF is a C-Bus network device, not a standalone relay. It requires a functioning C-Bus network and commissioning through C-Bus software, so it will not operate as a general-purpose four-channel relay on its own. A maximum of ten units per network applies, and motor loads are limited to 2A rather than the 10A resistive rating. Ambient conditions must stay within 0 to 45 degrees C, and installation must be carried out by a licensed electrician.
