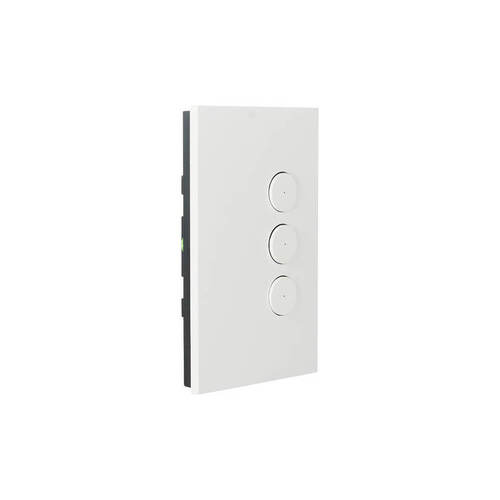

Clipsal Schneider R5043NL-ZW | C-Bus Saturn Zen Wall Button 3 Gang | White
Learn more by watching our Clipsal Schneider R5043NL-ZW | C-Bus Saturn Zen Wall Button 3 Gang | White video.
Description:
The Clipsal Schneider R5043NL-ZW is a versatile 3-gang switch from the C-Bus Saturn Zen A Series, offering enhanced control for modern homes. Ideal for both homeowners and electricians, this switch allows for the management of multiple functions including lighting, dimming, and scene control. It's Zen white colour and push-button design complement any interior, while the durable plastic build ensures longevity. Operating on a 15-36V DC voltage with a 22mA current, it integrates smoothly with C-Bus systems. Status LEDs provide clear feedback, and the device's easy installation makes it a top choice for sophisticated home automation projects.
Features:
FAQ:
Q: How many devices can the R5043NL-ZW control?
A: It controls multiple devices across three channels, suitable for varied applications.
Q: How does the LED signalling work?
A: The LEDs provide status updates and are configurable to show different colours based on the control function.
Q: What is the voltage requirement for this switch?
A: It requires a C-Bus supply voltage of 15-36V DC, drawing 22mA.
Q: Can it be used for outdoor applications?
A: With an IP20 rating, it's designed for indoor use, offering optimal performance in controlled environments.
(R5043NL-ZW)
The warranty starts from the Invoice Date.
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Colour | Zen white |
| Number of gangs | 3 gang |
| Control type | Push-button |
| Provided equipment | Fascia plate, Body switch, Push-button cap |
| Material | Plastic |
| Rated operational voltage | 15-36 V DC |
| Rated current | 22 mA |
| Communication network type | C-Bus |
| Input impedance | 50 kΩ at 1 kHz |
| Isolation voltage | 3.75 kV from C-Bus to mains |
| Local signalling | LED (blue/orange) for status |
| Starting time | 5 s |
| Connections - terminals | Terminal block - 0.2…1.3 mm² (AWG 24...AWG 16) |
| Mounting support | Wall box |
| Fixing center | 84 mm |
| Width | 75 mm |
| Height | 118 mm |
| Depth | 25 mm |
| Net weight | 54 g |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | R5043NL-ZW |
| Barcode # | 9311554763053 |
| Shipping Weight | 0.2050kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.065m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001072500m3 |
| TYPE | VALUE |
|---|---|
| Type | Wall Plate |
| Brand | Clipsal by Schneider Electric |
| Colour | White |
| Number of gangs | 3 |
