        Clipsal Schneider TeSys GV2ME14 | Motor Circuit Breaker 3P | 6A - 10A | Thermal Magnetic
        $175.94 $159.95 ex. GST
        Video

        Learn more by watching our Clipsal Schneider TeSys GV2ME14 | Motor Circuit Breaker 3P | 6A - 10A | Thermal Magnetic video.

        Description

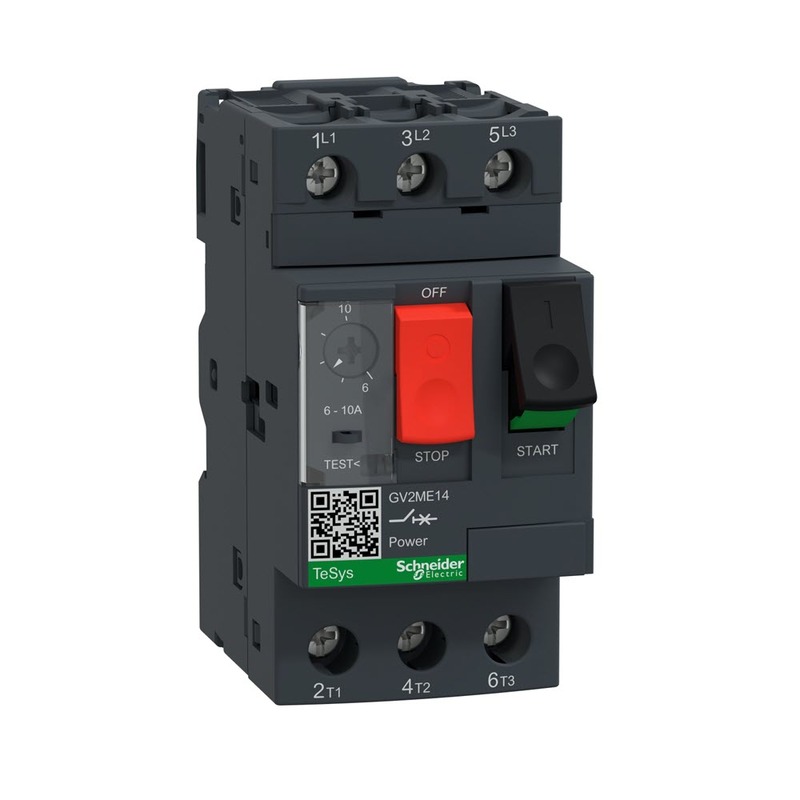

        Clipsal Schneider TeSys GV2ME14 | Motor Circuit Breaker 3P | 6A - 10A | Thermal Magnetic

        The Clipsal Schneider TeSys GV2ME14 is a motor circuit breaker that protects 3-phase motors. It has 3 poles (3P) and a current rating range of 6A to 10A.

        • Type: 3 poles (3P)
        • Current Rating: 10A
        • Voltage Rating: 690V
        • Suitable for 3-phase motor applications up to 4kW@400V
        • Provides thermal-magnetic protection
        • Thermal Setting Range: 6-10A
        • Magnetic tripping current 138A
        • High breaking capacity Icu 100kA@400V.
        • Connection: Screw clamp terminals
        • Start-stop control by push-button, guaranteed for 100,000 cycles AC-3
        • Certified by multiple standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX)
        • Green Premium compliant (RoHS/REACh)

        Features:

        Range TeSys Deca
        Product name TeSys GV2
        TeSys Deca
        Product or component type Motor circuit breaker
        device short name GV2ME
        Device application Motor protection
        Trip unit technology Thermal-magnetic

        (GV2ME14)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU GV2ME14
        Barcode # 3389110343137
        Shipping Weight 0.2600kg
        Shipping Width 0.045m
        Shipping Height 0.089m
        Shipping Length 0.079m
        Shipping Cubic 0.000316395m3
        TYPE VALUE
        Type Contactor
        Brand Clipsal by Schneider Electric
        Range TeSys Deca contactors
        Magnetic tripping current 138A
        Product or component type Motor circuit breaker
        Thermal protection adjustment range 6 -10A
        Conventional free air thermal current 10 A
