        Clipsal Schneider TeSys LC1D18U7 | D Contactor 18A | AC-3 | 240Vac Coil
        $86.58 $78.71 ex. GST
        Description

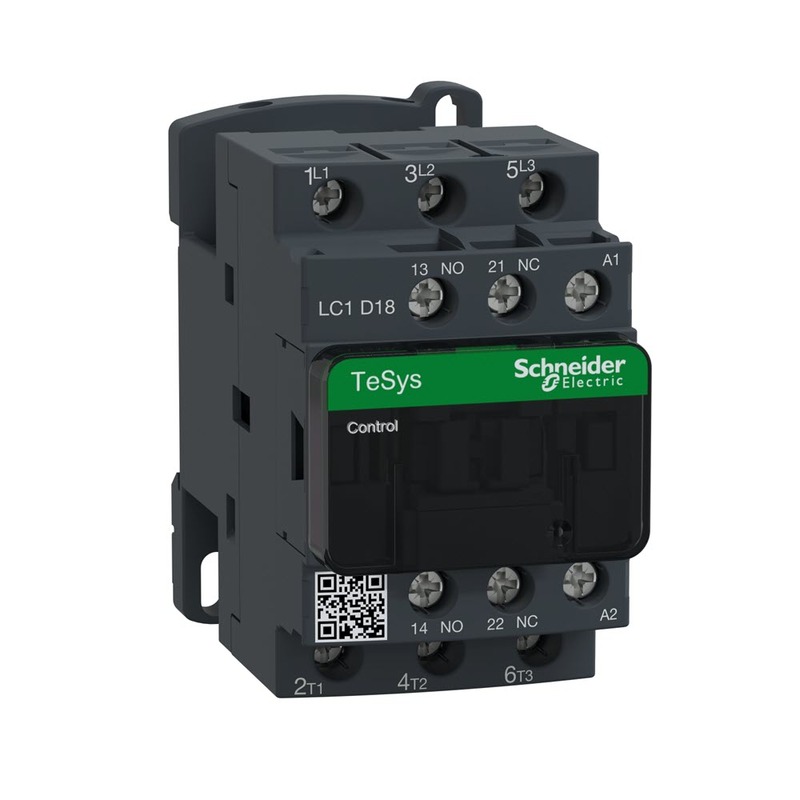

        Clipsal Schneider TeSys LC1D18U7 | D Contactor 18A | AC-3 | 240Vac Coil

        The TeSys D contactor is a device used for controlling motors. It has three poles. It is normally open (NO), meaning the circuits are not connected when the contactor is not energised. It is designed for motor control applications with a maximum current rating of 18A and a voltage rating of 690V in AC-3 mode (suitable for motor power of 7.5kW at 400V).

        The contactor has a coil that operates on 240V AC power at 50/60Hz. It also has built-in auxiliary contacts, consisting of one normally open (NO) and one normally closed (NC) contact. These auxiliary contacts are certified to provide reliable switching.

        The connection to the contactor is made using screw clamp terminals, which provide secure and easy-to-use connections. The contactor is designed to handle high operating rates of up to 3600 cycles per hour and can operate in environments with temperatures up to 60 degrees Celsius. This ensures its reliability and durability in demanding applications.

        The TeSys D contactor has a compact design with a width of 45mm, allowing for easy installation on a DIN rail or through screw fixing. It is certified to meet multiple international standards, including IEC, UL, CSA, CCC, EAC, and Marine. It also complies with Green Premium standards and meets environmental regulations such as RoHS and REACh.

        Highly competitive coil consumption Small changes can generate significant savings. The new Deca green contactor is equipped with an innovative electronic coil. These electronic-coil contactors require up to 80 % less energy than electro-mechanical contactors. This innovation results in concrete values: for example, large plants can noticeably reduce their energy bills and heat dissipation in cabinets.

        Features:

        Range of product TeSys Deca
        Product or component type Contactor
        device short name LC1D
        Contactor application Motor control
        Resistive load
        Utilisation category AC-3
        AC-1
        AC-4
        AC-3e
        Poles description 3P
        [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
        Power circuit: <= 300 V DC
        [Ie] rated operational current 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
        32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
        18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
        [Uc] control circuit voltage 240 V AC 50/60 Hz

        (LC1D18U7)

        Warranty

        Warranty starts from the Invoice Date

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU LC1D18U7
        Barcode # 3389110349597
        Shipping Weight 0.3560kg
        Shipping Width 0.045m
        Shipping Height 0.077m
        Shipping Length 0.086m
        Shipping Cubic 0.000297990m3
        TYPE VALUE
        Type Contactor
        Brand Clipsal by Schneider Electric
        Range TeSys Deca contactors
        Rated Current (A) AC-1 32A
        Rated Current (A) AC-3 18A
        Kilowatt Rating (kW) 7.5kW at 415V 50/60Hz
        Contact Configuration 3P+NO+NC
        Control circuit voltage 240 V AC 50/60 Hz
