Learn more by watching our Clipsal TPBH | Black Exterior LED Bulkhead 6W CCT | IP54 video.

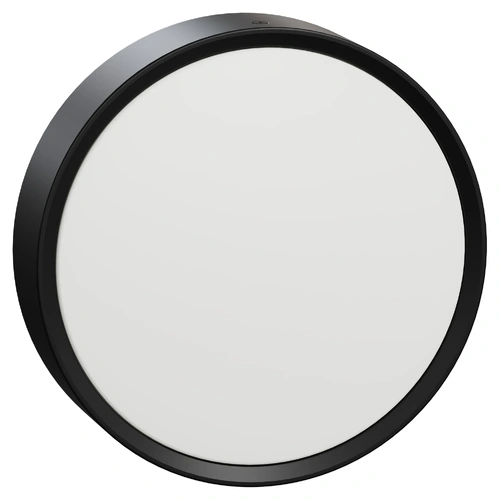

The Clipsal TPBH is a 6W exterior LED bulkhead light rated IP54, producing 600 lumens with selectable colour temperature. The TPBH runs directly on 230 to 240V AC at 50Hz and carries a Class II double insulated construction. Colour temperature is selectable across 3000K, 4000K and 5700K, and the round black housing measures 196mm across by 58mm deep.
Exterior bulkheads take the worst of the weather on a house: dust off the driveway, wind-driven rain across an open porch, and the odd knock from a ladder or a wheelie bin. Older fittings with a bulb and a diffuser tend to fail at the lamp holder long before the housing gives out, which turns a simple entry light into a repeat call-back. The TPBH answers that with a sealed IP54 rated LED body, an IK08 impact rating, and a 50,000 hour rated lifespan that removes the lamp change from the maintenance list entirely.
Carrying one exterior bulkhead instead of three is what makes the TPBH work off the van. The selectable 3000K, 4000K and 5700K output means the same fitting covers a warm front entry, a neutral carport and a cool commercial rear door. A sparky quotes one part number across the whole job. Class II construction keeps the termination straightforward on older circuits, and the fixed 6W draw lets several fittings sit on one lighting circuit without recalculation.
The Clipsal TPBH is rated IP54, which means it is not submersible and is not rated for direct high-pressure washdown. Ambient operating temperature is limited to -10 to 45 degrees C, so the fitting is not suited to enclosed high-heat spaces such as unventilated plant rooms or roof cavities. Installation must be carried out by a licensed electrician.
(TPBH)
Installation of the Clipsal TPBH must be carried out by a licensed electrician. The fitting is hard wired to a 230 to 240V AC lighting circuit and mounts to a ceiling or soffit surface. Warranty cover is void if the product is not installed by a licensed electrician.
The Clipsal TPBH offers three selectable colour temperatures: 3000K warm white, 4000K neutral white and 5700K cool white. The setting is chosen at installation, so one part number covers warm domestic entries and cooler commercial or security positions. Check the supplied instructions for the selector location on the fitting.
IP54 means the fitting is protected against dust ingress and against water splashing from any direction. That covers exposed porches, eaves, carports and open walkways. IP54 does not extend to submersion or direct high-pressure washdown, so avoid positions where the fitting will be hosed down.
The bulkhead carries a rated bulb lifespan of 50,000 hours. At around 12 hours of operation per night, that works out to roughly 11 years of service. The LED light source is integral to the fitting, so there is no lamp to change during that period.
The bulkhead carries a three year replacement warranty for both domestic and commercial use, starting from the invoice date. The warranty method is return to Sparky Direct. Warranty cover is void if the fitting has not been installed by a licensed electrician.
The fitting is built to electrical insulation Class II, which is a double insulated construction. Confirm termination requirements against the installation instructions supplied with the product and the requirements of AS/NZS 3000 before wiring the circuit.
Avoid submerged positions, direct high-pressure washdown areas, and enclosed high-heat spaces such as unventilated plant rooms or roof cavities. Rated ambient operating temperature is -10 to 45 degrees C. The fitting is designed for outdoor ceiling and soffit surfaces, not for recessed or in-ground installation.
The Clipsal by Schneider Electric TPBH is available online from Sparky Direct, with Australia-wide delivery to any state or territory including regional areas. Sparky Direct is an Australian electrical wholesaler established in 2005, supplying more than 500,000 customers with transparent trade pricing.
100-Day Fuss-Free Returns
We want you to love what you buy—but if you change your mind, that’s okay too. That’s why Sparky Direct offers a 100-day money-back guarantee.
If your item isn’t in its original condition, please contact us before returning it—we might save you time and money.
All products come with a manufacturer’s or supplier’s warranty
Damaged or Faulty Goods
If your order arrives damaged or is faulty, let us know within 24 hours.
Contact us via our chat to arrange the return.
Exclusions
We can’t accept returns for:
How to Request a Return
Warranty starts from Invoice Date
Domestic Use: 3 Year replacement
Commercial Use: 3 Year replacement
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | TPBH |
| Type | Batten Light |
| Mounting | Ceiling |
| Dimensions (H x W x D) | 196mm x 196mm x 58mm |
| Shape | Round |
| Body Colour | Black |
| Light Colour Temperatures | 3000K / 4000K / 5700K |
| Luminous Flux | 600 lm |
| Colour Rendering Index (CRI) | Ra=80 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | TPBH |
| Model # | CLITPBH |
| Barcode # | 3606487344780 |
| Package Weight | 0.491kg |
| TYPE | VALUE |
|---|---|
| Type | Bulkhead |
| Brand | Clipsal by Schneider Electric |
| Colour | Black |
| Height (mm) | 196mm |
| Width (mm) | 196mm |
| Depth (mm) | 58mm |
| Mounting | Ceiling |
| Lumens (lm) | 600 lm |
| Lighting Technology | LED |
| Light Colour (K) | 3000K/4000K/5700K |
| Voltage (V) | 230-240 |
| Wattage (W) | 6 |
| IP Rating | IP54 |
| Bulb Lifespan (H) | 50,000 |
