Clipsal by Schneider Electric | TPWP Series Weatherproof LED Batten 36W 1200mm | IP65 IK08 White

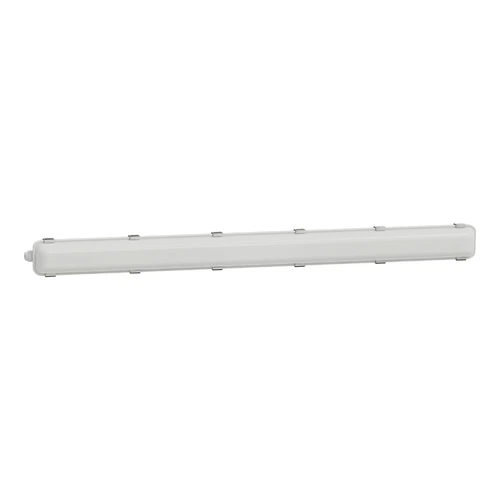

The Clipsal TPWP1200 is a 1200mm weatherproof LED batten rated 36W at 230/240V AC, built for ceiling mounting indoors and outdoors. The TPWP1200 carries an IP65 ingress rating and an IK08 impact rating, and delivers 4500 lumens at full power with a colour rendering index above 80. A three-position colour selector sets the output to 3000K, 4000K or 5700K, and a power selector drops the fitting to 18W and 2250 lumens.
Sheds, carports and patios sit outside the operating envelope of an interior batten. Dust ingress, cobwebs and wind driven rain destroy unsealed fittings within a few seasons. The TPWP1200 answers with an IP65 sealed enclosure and an IK08 impact rating, so the installation continues performing where fluorescent fittings deteriorated. A 50,000 hour L70 lamp life eliminates the ladder work that fluorescent tube replacement generates.
A single catalogue number covers warm, neutral and daylight specifications. Electricians carry the TPWP1200 on the truck and select the colour temperature on the ladder. The power shift selector halves consumption to 18W, so one fitting suits a walkway and a workshop on the same quote. Stainless steel clips arrive fitted, and a five year warranty covers an entire shed installation of identical fittings.
Features
- Power Shift selector — sets the TPWP1200 to 36W and 4500 lumens, or to 18W and 2250 lumens, chosen at installation.
- Tri-Temp colour selector — switches the light output between 3000K warm white, 4000K neutral white and 5700K daylight.
- IP65 ingress rating — sealed against dust and against water jets from any direction, which suits exposed carports and open sheds.
- IK08 impact rating — the housing takes a five joule strike, worth having where ladders, timber and stock swing past the fitting.
- 4500 lumen output — full power puts 4500 lumens out of a single 1200mm run drawing 36W.
- Colour rendering above 80 — colours read accurately under the TPWP1200, which matters when sorting wiring or paint in a workshop.
- 50,000 hour lamp life — rated to L70, so the fitting still holds 70 percent of its starting output at 50,000 hours.
- 230/240V AC operation — runs on standard Australian mains at 50Hz, drawing 220mA at 36W and 110mA at 18W.
- Stainless steel clips — supplied fitted, holding the diffuser to the gear tray and keeping the IP65 seal closed.
- 1240mm overall size — the TPWP1200 measures 1240mm long, 102mm wide and 84.5mm high, and weighs roughly 1.83kg.
- Five year warranty — Clipsal covers the TPWP1200 for five years in both domestic and commercial use.
- Settings fixed at install — the wattage and colour selectors are set before the fitting goes up, not switched from a wall plate afterwards.
Where to use
- Domestic sheds and workshops — the TPWP1200 mounts to open rafters where dust and cobwebs would clog an unsealed fitting.
- Carports and verandas — the IP65 body handles wind driven rain blowing in under an open roof line.
- Garages and car parks — 4500 lumens at full power covers a double bay without running a second fitting.
- Patios and outdoor entertaining areas — the 3000K setting keeps the light warm over a table setting rather than clinical.
- Warehouse aisles and store rooms — the 5700K daylight setting lifts label and barcode legibility on racking.
- Walkways and service corridors — the TPWP1200 runs at 18W where a path needs steady light rather than full output.
- Farm sheds and machinery bays — the IK08 housing takes knocks from timber, ladders and stock movement.
- Undercover laundries and drying areas — rated for humidity between 10 and 95 percent, non-condensing.
The TPWP1200 is not rated for immersion and should not sit where it can be submerged or pressure washed at close range. It is a ceiling mount fitting rated for ambient temperatures between minus 10 and 45 degrees Celsius, so hot plant rooms and roof cavities fall outside its range. The colour and power selectors are set at installation and cannot be changed from a wall switch once the batten is up.
